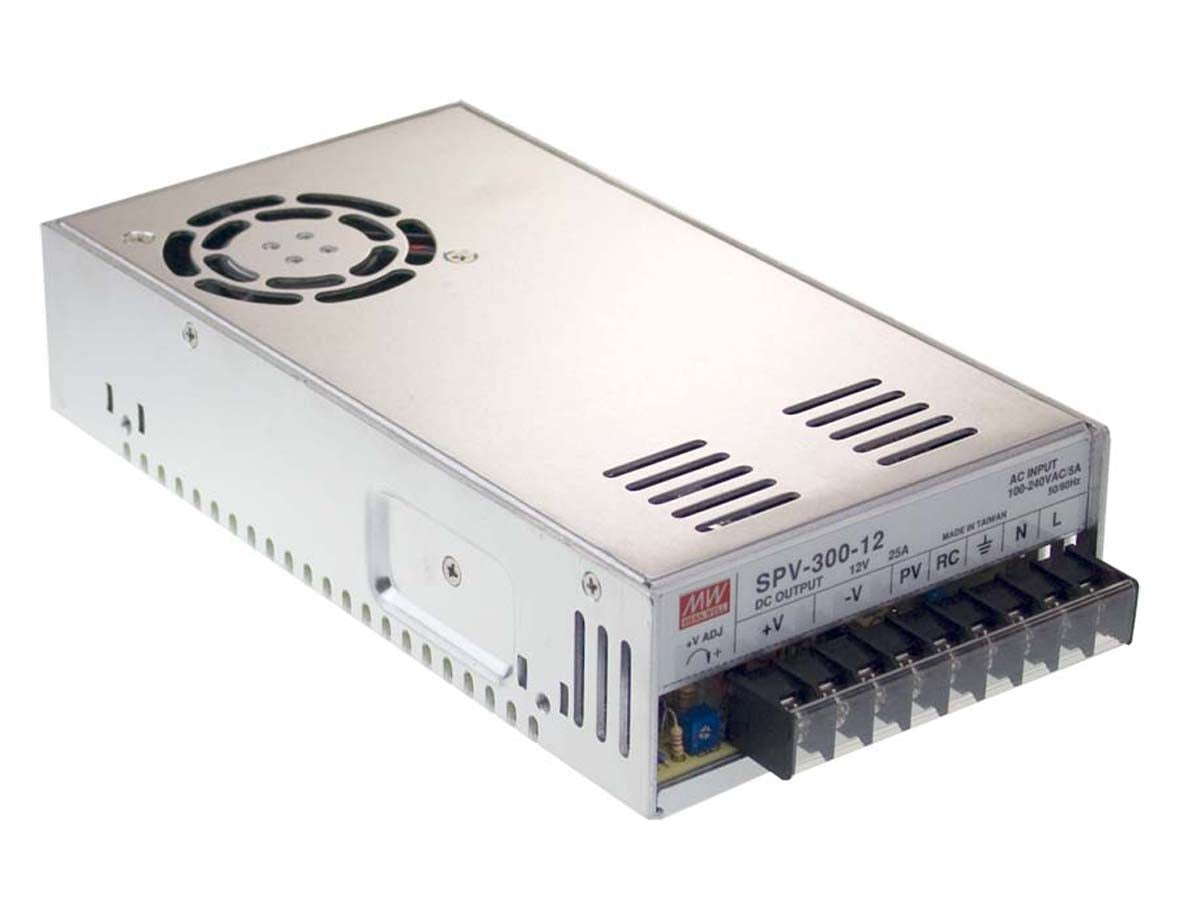

Mean Well SPV-300-12 Enclosed Switching Power Supply - 12V DC, 25A, 300W, Programmable Output
Mean Well SPV-300-12 Enclosed Switching Power Supply - 12V DC, 25A, 300W, Programmable Output
SPV-300-12
The Mean Well SPV-300-12 is a 300W enclosed switching power supply providing a regulated 12V DC output at 25A, with built-in active power factor correction. Its standout feature is a fully programmable output: the output voltage can be adjusted from 20% to 110% of nominal via a simple 1–5.5V DC external control signal, making it ideal for applications that need dynamic or fine-tuned voltage control.
With a universal full-range AC input of 88–264VAC (or 124–370VDC), it runs directly on Australian 240V mains. The slim 50mm-high enclosed case is cooled by free air convection — no fan — for silent, maintenance-free operation, and built-in remote ON-OFF control allows external switching of the output.
Key Features
- 300W rated output — 12V DC at 25A
- Universal full-range AC input, 88–264VAC / 124–370VDC
- Built-in active PFC function, PF>0.94
- Output voltage programmable 20–110% via 1–5.5V DC external control signal
- Protections: short circuit / overload / over voltage / over temperature
- Fanless — cooling by free air convection
- Built-in remote ON-OFF control
- 3-year manufacturer warranty
Technical Specifications
| Output Voltage | 12V DC (programmable 20–110% via 1–5.5V DC signal) |
| Rated Current | 25A |
| Rated Power | 300W |
| Input Voltage | 88–264VAC / 124–370VDC (full range) |
| Power Factor | >0.94 (active PFC) |
| Efficiency (typ.) | 84% |
| Cooling | Free air convection (fanless) |
| Working Temperature | -20°C to +65°C (refer to derating curve) |
| Protections | Short circuit, overload, over voltage, over temperature |
| Functions | Programmable output, remote ON-OFF control |
| Dimensions (L x W x H) | 215 x 115 x 50 mm |
| Weight | 1.1 kg |
| Warranty | 3 years |
Typical applications include 12V industrial systems, LED lighting and signage, battery-adjacent supplies, test equipment and any installation requiring a silent, programmable 12V DC source. Buy online from BNR Industrial Automation, Australia.
