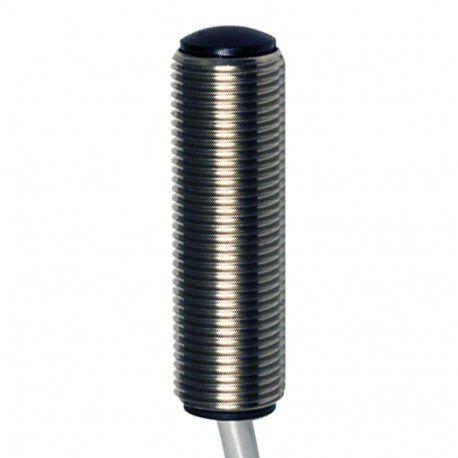

Micro Detectors DGR/01-2C M12 Photoelectric Receiver (75m, 15m Cable)

The Micro Detectors DGR/01-2C is a miniature M12 receiver head from the UR+DG remote-sensor series, designed for through-beam detection in harsh industrial environments. It pairs with a matching DGE emitter head and a UR-series control unit (such as the URA/TA) to form a complete long-range through-beam sensing system.

Built into a compact stainless steel AISI 303 barrel with a polycarbonate active head, the DGR/01-2C is rated IP67 and suited to dusty, wet and mechanically demanding applications where a standard self-contained sensor won't survive.

Key features

• Through-beam receiver head (requires matching DGE emitter + UR control unit)
• Nominal sensing distance up to 75 m (system: 60 m HI / 30 m LO)
• Axial optics, ±5° beam angle
• M12 × 41 mm stainless steel AISI 303 housing
• 15 m PVC cable
• Operating temperature −20°C to +60°C
• Degree of protection IP67
• Powered from the UR control unit — no separate supply at the head
• CE approved

Specifications

Part of a matched set: DGE/01-2C emitter + DGR/01-2C receiver + URA/TA control unit. All three are required for a complete through-beam system.
