URA/TA 24VDC

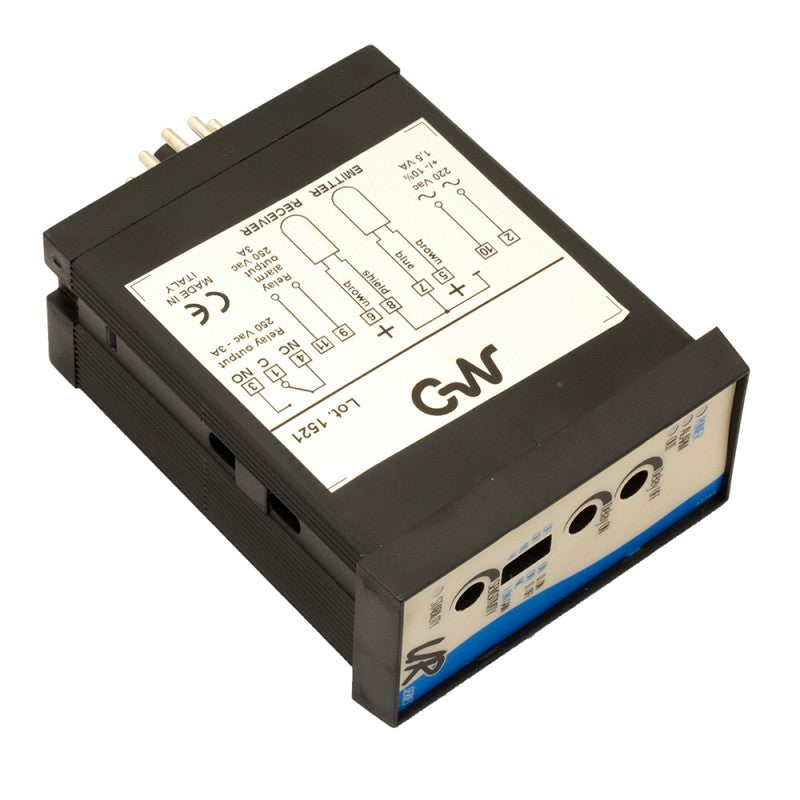

The Micro Detectors URA/TA is the amplifier / control unit for the UR+DG family of remote photoelectric sensor heads. It drives a matched pair of miniature DG-series heads (such as the DGE/01-2C emitter and DGR/01-2C receiver), processing the optical signal and providing switched relay outputs, adjustable timing and an alarm output from a panel-mountable enclosure.
Running on 24 VDC, the URA/TA features a double timer with independent adjustments, sensitivity adjustment, and clear LED indication for supply, output state, alignment stability and alarm — making setup and fault-finding straightforward on long-range through-beam installations.
Key features
- Control unit / amplifier for UR+DG remote sensor heads
- 24 VDC supply
- Relay NO+NC operating output plus relay NO alarm output
- Double timer with independent adjustments
- Sensitivity adjustment
- LED indicators: green (supply), red (output), green (stability), red (alarm)
- Switching frequency 10 Hz
- Max output 250 V / 3 A
- Panel / DIN-style mounting, Noryl 90 V-0 housing
- CE approved
Specifications
| Function | Amplifier / control unit (UR+DG) |
| Operating voltage | 24 VDC (±20%) |
| No-load supply current | ≤ 100 mA |
| Max ripple | ≤ 10% |
| Operating output | Relay NO+NC |
| Alarm output | Relay NO |
| Switching frequency | 10 Hz |
| Max output voltage | 250 V |
| Max output current | 3 A |
| Operate / reset time | ≤ 40 ms |
| Timer | Yes (double, independent) |
| LED indicators | Supply, output, stability, alarm |
| Dimensions | 36 × 90 × 67 mm |
| Weight | 110 g |
| Housing | Noryl 90 V-0 |
| Operating temperature | −10°C … +50°C (no freeze) |
| Degree of protection | IP20 |
| Approvals | CE |
Part of a matched set: DGE/01-2C emitter + DGR/01-2C receiver + URA/TA control unit. All three are required for a complete through-beam system.
