Industrial LED Traffic Light Assembly
The LED Traffic Light has been designed for industrial & commercial signalling applications where a low maintenance, long life and a cost effective solution is required. The TL system is suitable for car park management, factory traffic control, automated gate and door control systems.
The traffic light units are suitable for indoor or outdoor applications and incorporates 36 high output LED’s.

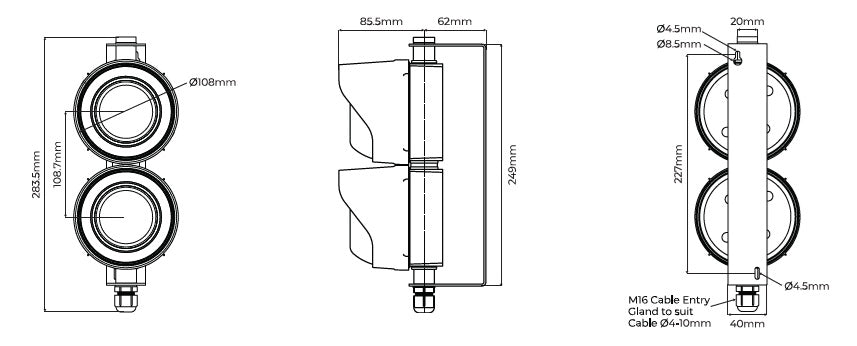

The factory assembled units are available in double (Red & Green) or triple (Red, Amber & Green) mounting configurations and are supplied fully assembled, pre-wired and mounted on wall brackets ready for immediate installation.
These units require external input signals or PLC control to switch visual indication functions (not supplied).
Termination is in the base of the bottom unit and can be accessed via 1 x M16 cable gland
The mounting brackets allow the units to be off set against the mounting structure giving the traffic lights 180 degree of angle movement, optimising the visual indication position.
- Continuously rated
- LED long life & extra bright
- Low current consumption
- IP65 rated - Dustproof and Weatherproof
- 1200 prime light output above the horizontal axis
- Fully assembled & ready for immediate installation
- UV Stable ABS Plastic Base
- UV Stable Polycarbonate Lens & Shroud
- -25°C +55°C
Click Here for PDF Data Sheet
Click Here for Installation Instructions
