MOFLASH LED TL Series Surface Mount LED Traffic Light Modules

MOFLASH

Colour
Red
Amber
Green
Voltage

Surface Mount Stack-able LED Traffic Light Modules

The LED Traffic Light has been designed for industrial & commercial applications where a low maintenance, long life & cost effective solution for car park management, factory traffic control & automated gate & door control systems is required.

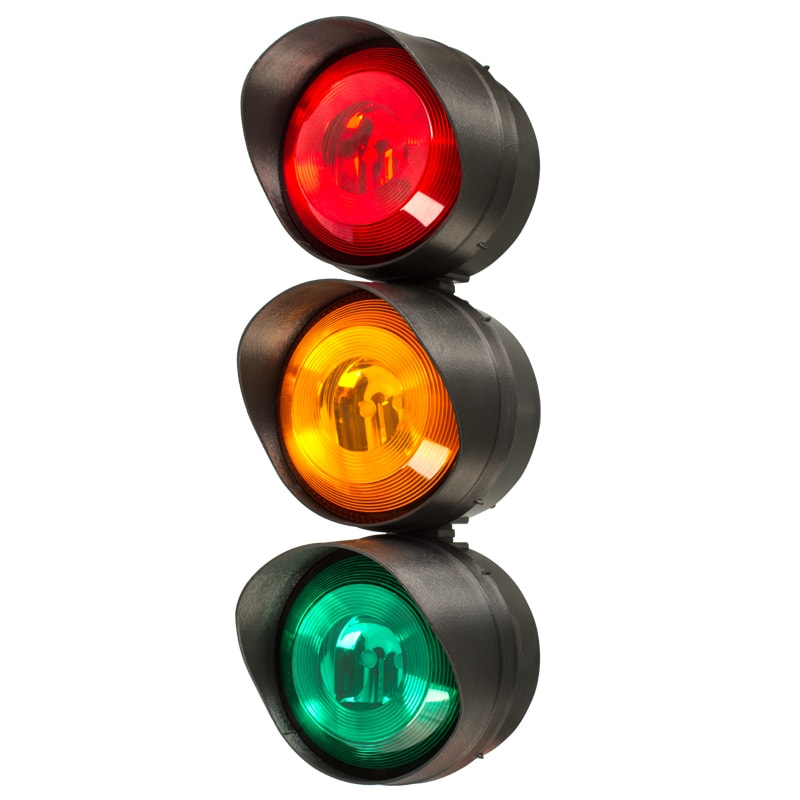

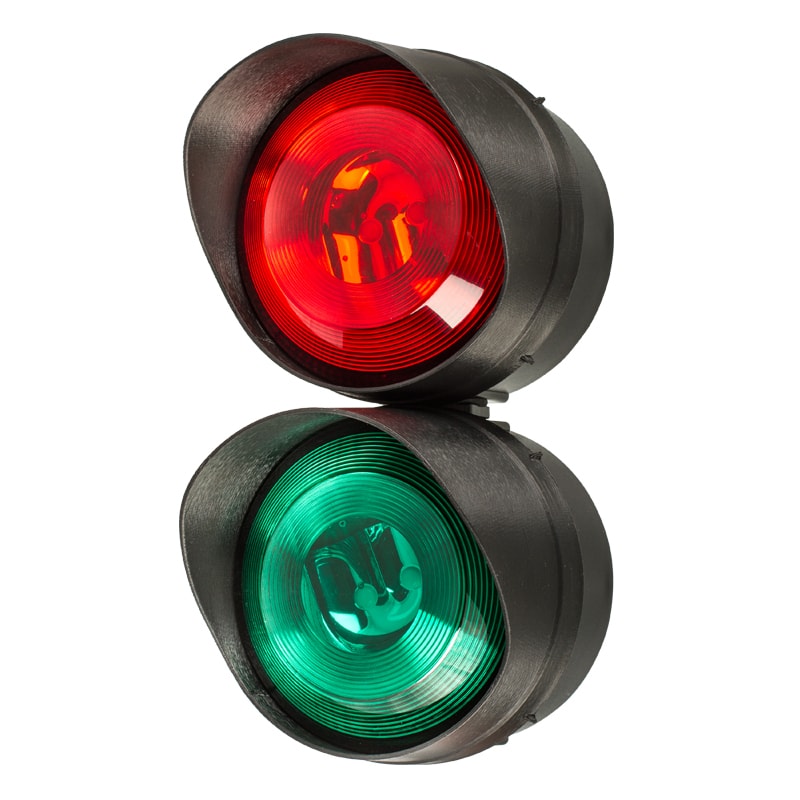

The traffic light units are suitable for indoor or outdoor applications and incorporate 36 high output LED’s. They can be surface mounted onto any flat vertical surface or conduit box and used as a stand-alone module. Alternatively, the modular design of the traffic light allows for multiple units to be pre-assembled by the installer to create a multiple indication light system. Each unit comes supplied as standard with all components required for multiple assembly for surface mount installation.

These units require external input signals or PLC control to switch visual indication functions (not supplied). However, the amber light incorporates an optional jumper link on the PCB that allows the unit to flash once energised.

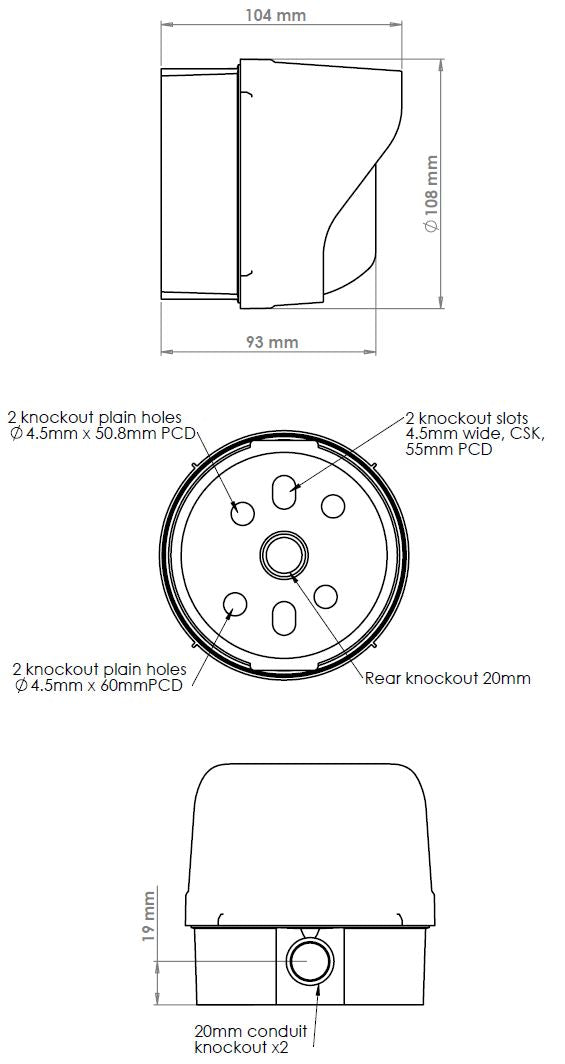

Cable termination is inside the enclosure and can be accessed via either the 2 x M20 conduit knockouts (top or bottom) or 1 x M20 rear conduit entry.

Specifications

  • Number of LEDs: 36
  • Colours: Red, Amber, Green
  • Voltage options: 8-20VAC/DC, 20-30VAC/DC or 85-280VAC
  • IP65 Rated
  • Continuously rated
  • PC - UV Stabilised
  • 0.26kg
  • 108mm (dia)
  • -25 °C min to +55°C max

Click here for PDF Datasheet
