Units sold individually

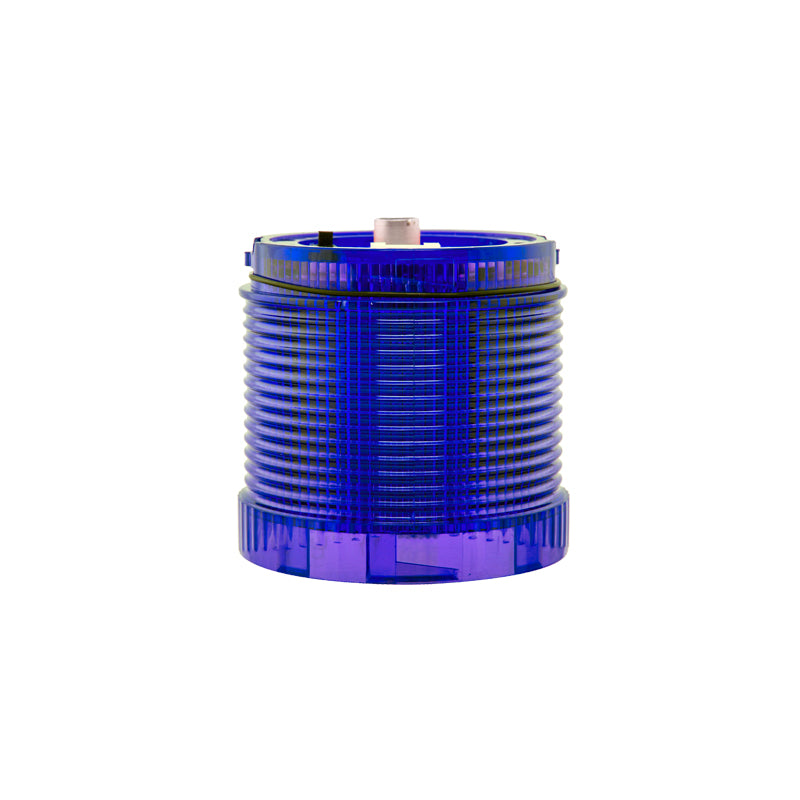

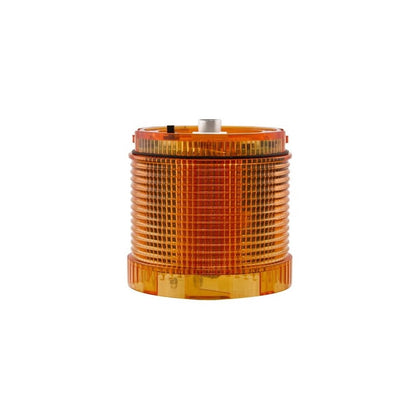

Industrial LED ECO Beacons – Stacking Beacon / Light

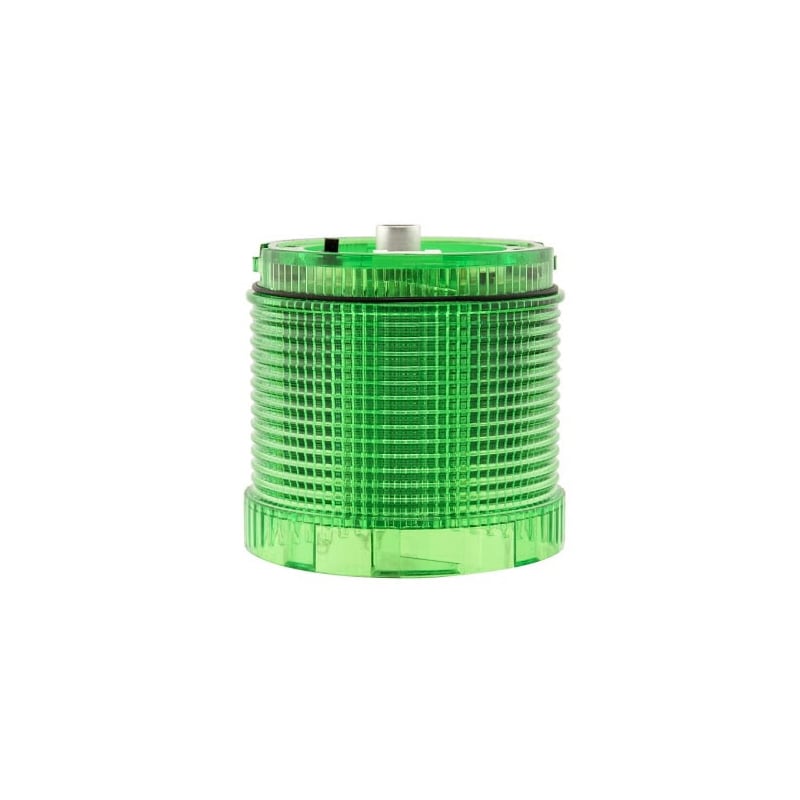

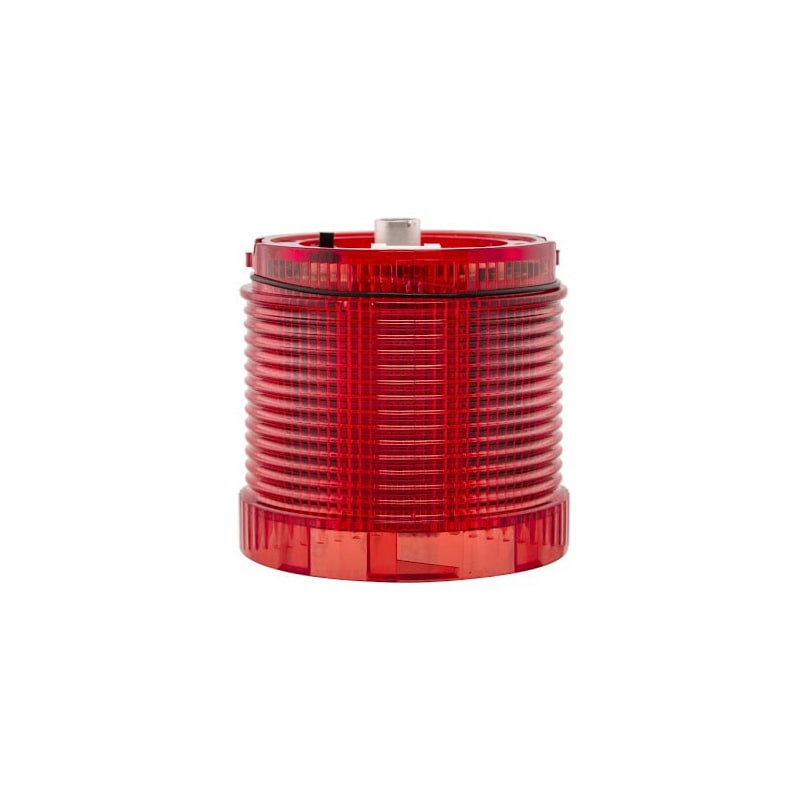

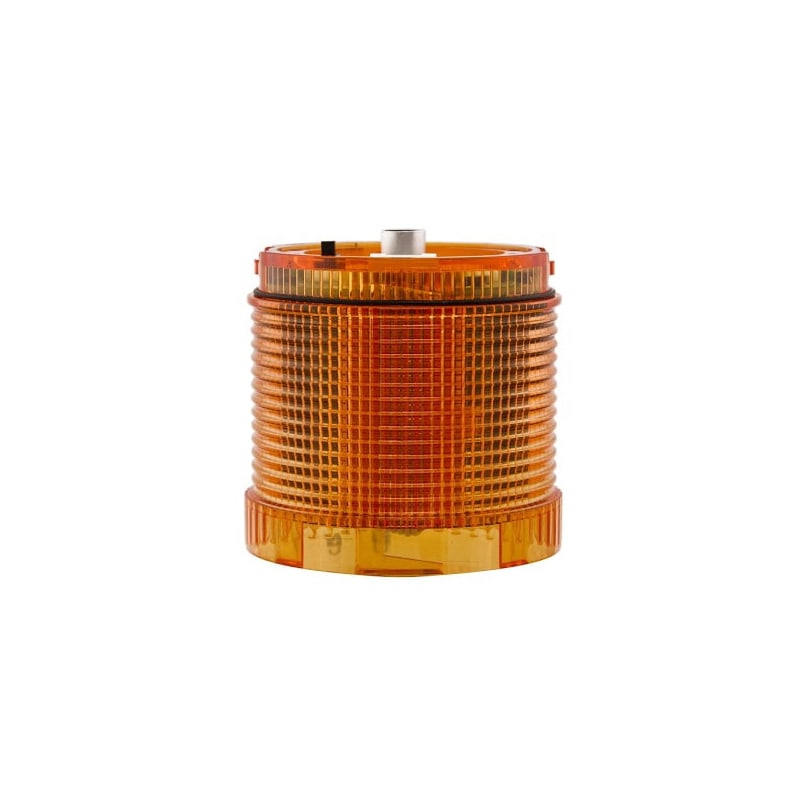

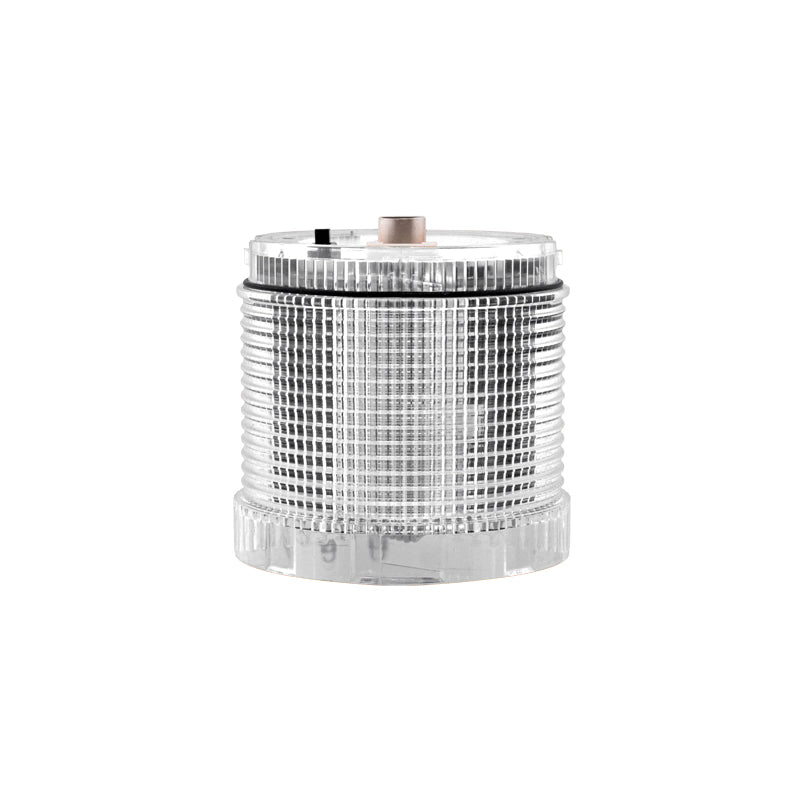

The LED Tower Light Module series is ideally suited for status indication in light commercial & industrial signalling applications where a local signal is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a slide switch on the PCB.
The LED TLM ECO range has been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.

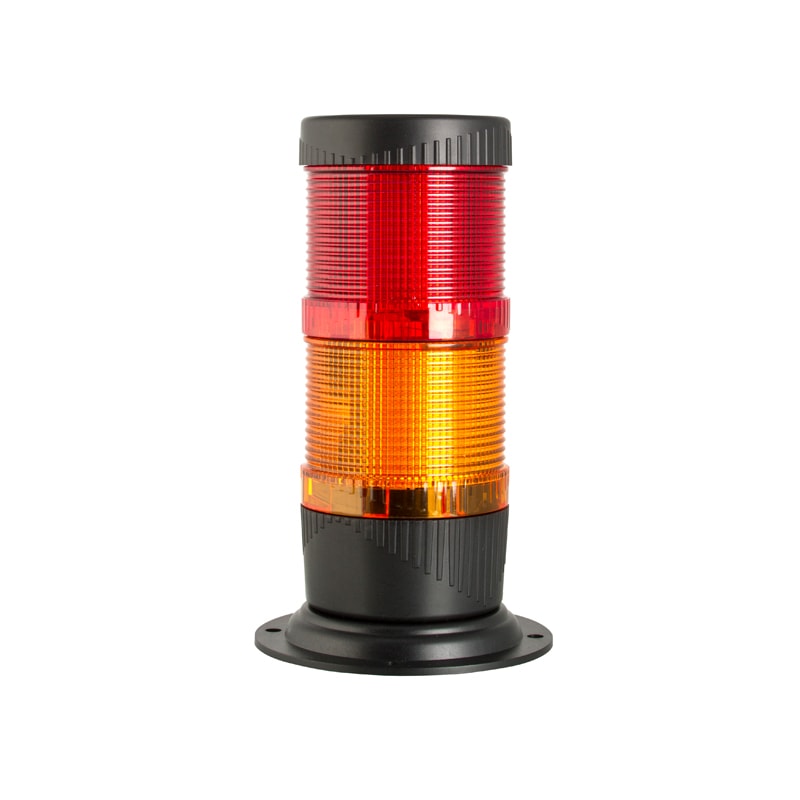

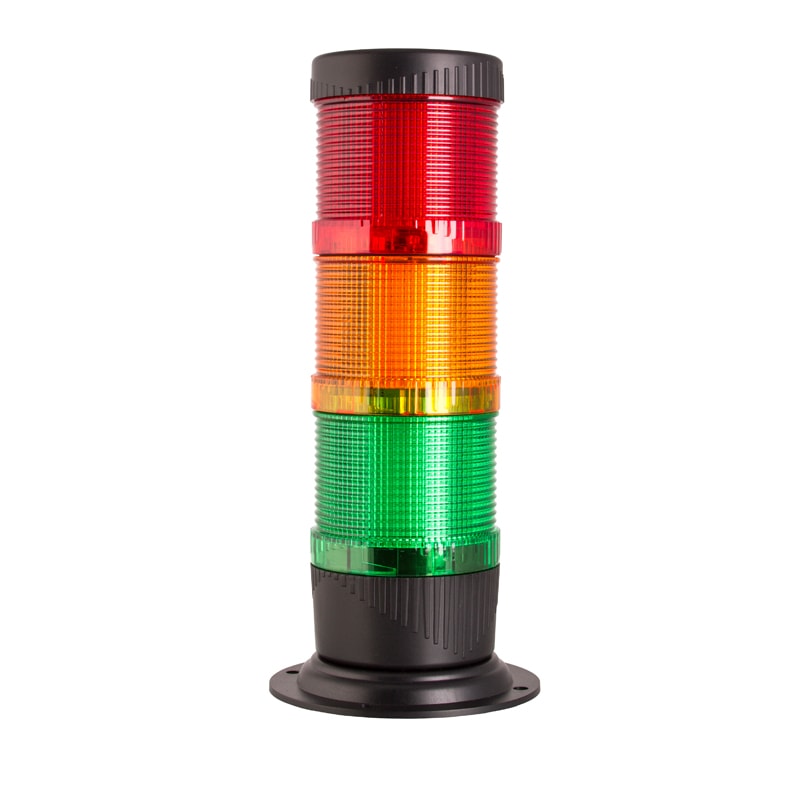

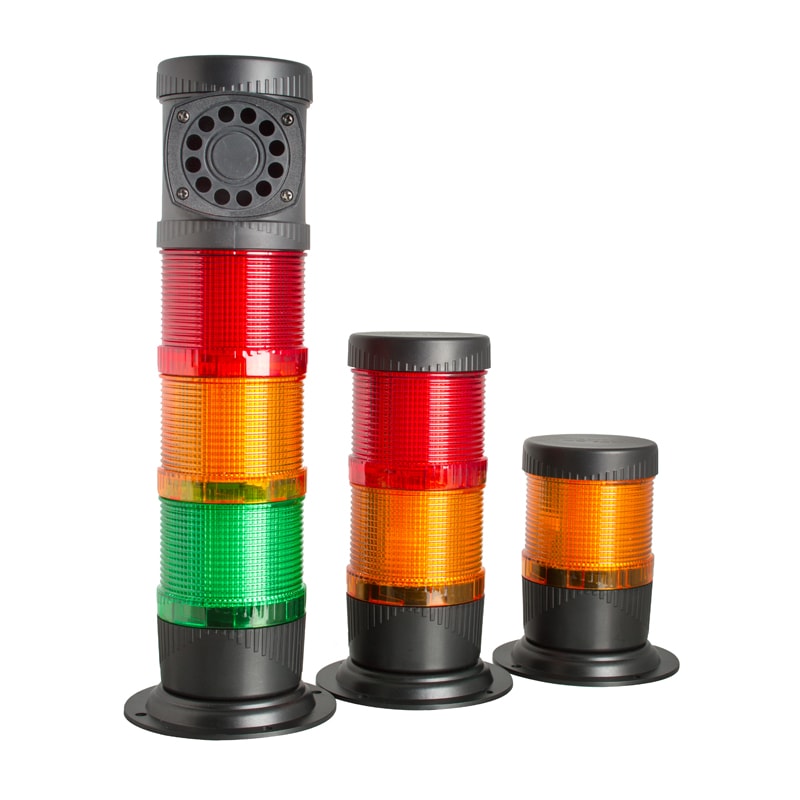

The Tower Light design is modular and easily assembled. The units assemble using a twist lock system allowing for quick and easy assembly. All colour modules are supplied with quick fix terminations via an IDC lead that simply push into a male terminal to make the connection. Customer connections are made into the base unit only.

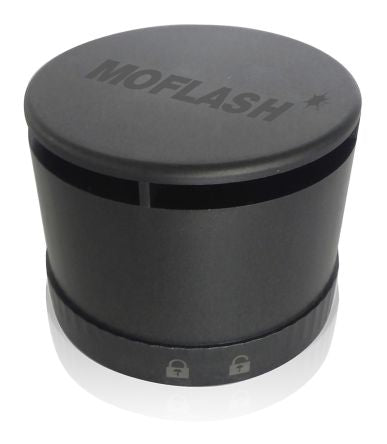

Audible modules are also available. Two ECO Sounder units (LED-TLM-AUD-02 & LED-TLM-AUD-04) offer up to 100dB with either a continuous or pulsed tone output. Both modules are rated at IP65.

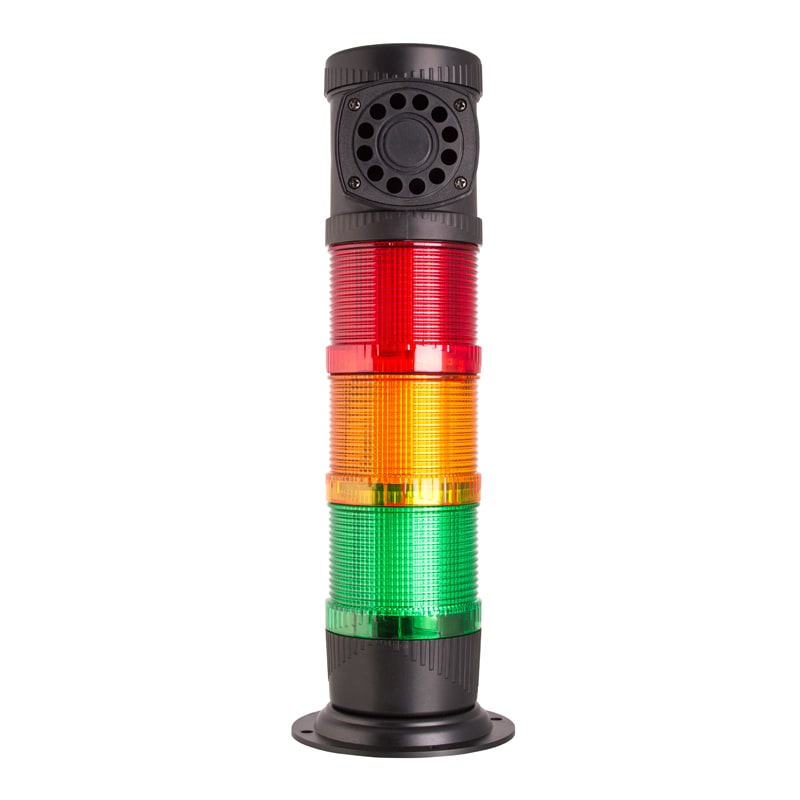

An additional High Output Sounder unit is also available (LED-TLM-AUD120-04), offering up to 120dB and again with either a continuous or pulsed tone output and rated at IP65.
Please Note: Stack light base is essential to control the stack light modules, Click Here to Purchase
- 24VDC or 85-275VAC
- Continuously rated
- LED long life
- Low current consumption
- Suitable for surface mounting
- 360° light output around the vertical axis
- Dustproof and Weatherproof
- UV Stable ABS Plastic Base
- UV Stable Polycarbonate Lens & Shroud
- -25°C +55°C
Click Here for PDF Data Sheet
