LED Beacon with 3 Mode Flash Rate. Static, 60 Flashes Per Minute or 120 Flashes Per Minute
The LEDD & LEDA 100 economy series are suitable for light commercial & industrial signalling applications where local indication is required.
These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The LED ECO range has been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.

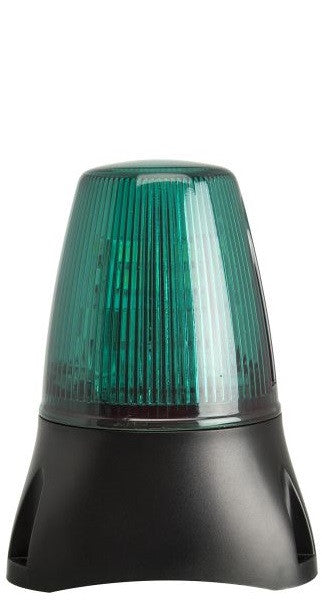

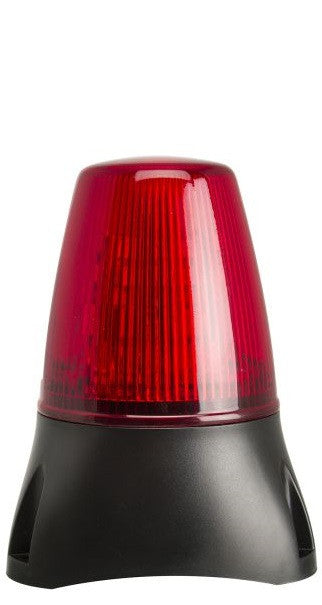

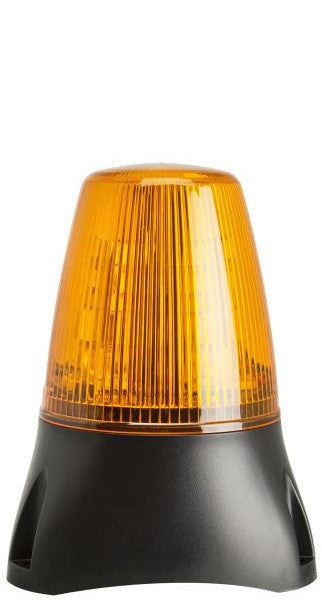

The design allows for termination inside the enclosure through the base of the beacon enclosure. The LEDA version incorporates one piezo buzzer situated in the base of the unit that is synchronised to the flash rate (the buzzer cannot be controlled independently of the light) offering a combined audible & visual warning signal.
- Number of LEDs: 8
- Colours: Red, Amber, Green or Blue
- Voltage: 24VDC or 240VAC
- IP65 rated
- Flash Speed: 120 or 60 Per Min
- Steady or Flashing Mode
- PC - UV Stabilised
- 90(w) x 119(h)mm
- -25 °C min to 55 °C max
- 1 meter flying lead (240VAC model only)
Click Here for PDF Data Sheet
Right Angle Bracket to Suit
