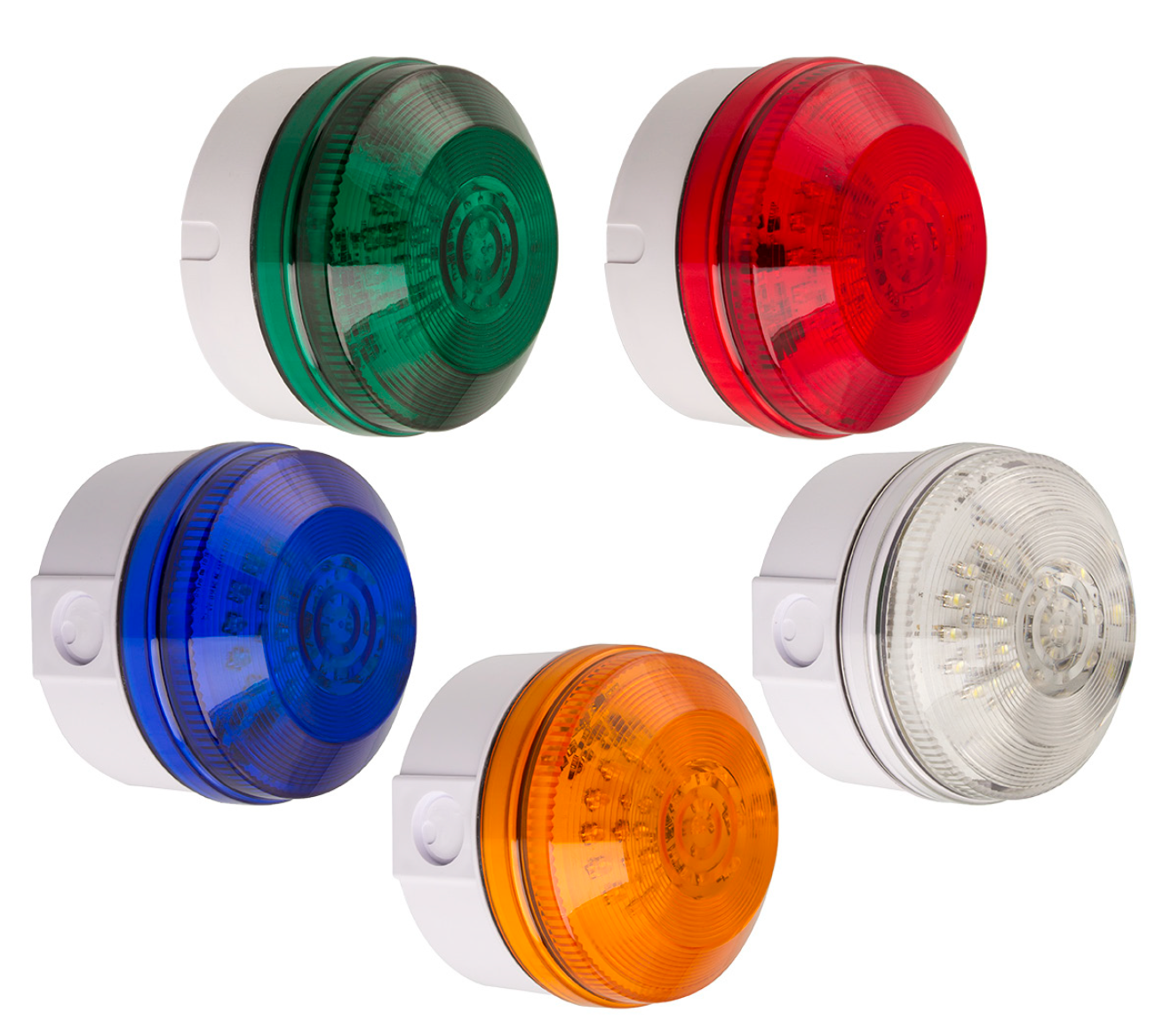

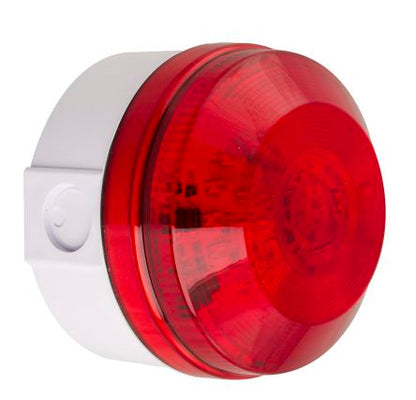

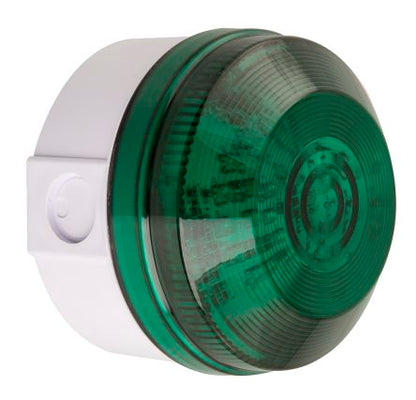

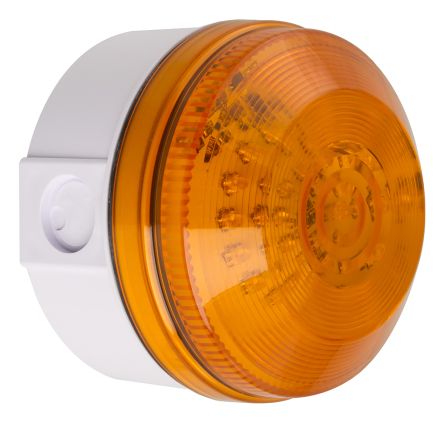

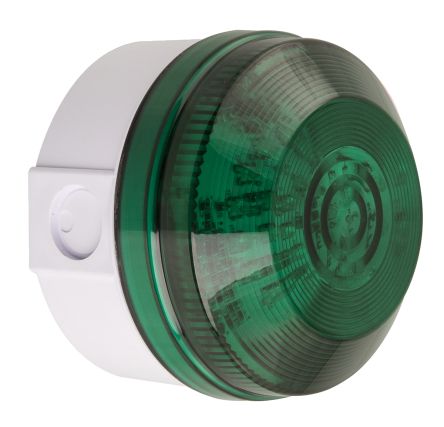

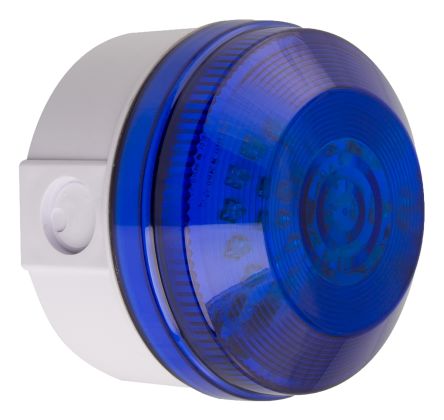

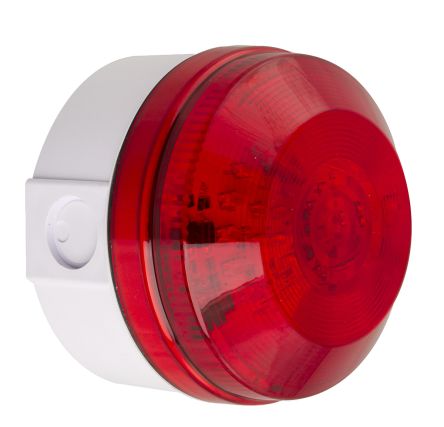

MOFLASH MOLED 195 LED Beacons

MOFLASH

Colour
Red
Amber
Green
Blue
Voltage

LED Beacon with 3 Mode Flash Rate. Static, 60 Flashes Per Minute or 120 Flashes Per Minute

The LED195 beacon has been designed for industrial & commercial signalling applications where low maintenance & long life are the pre-requisite requirement.

These beacons have two stages of alarm, flashing (pre-set to either 60 or 120 FPM) or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving the flexibility to switch from a pre-set static mode to a pre-set flashing mode.

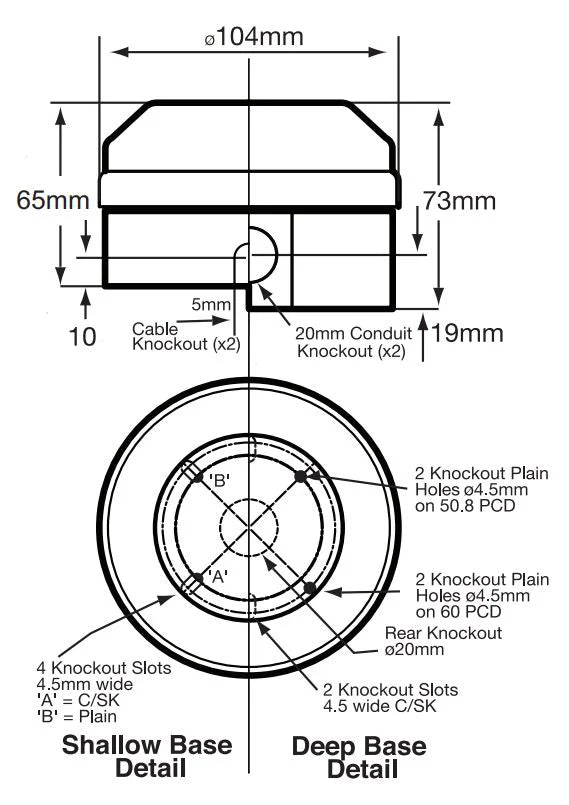

The design allows for termination inside the enclosure. The LED195 deep base version offers 2 x M20 side knockouts and 1 x M20 rear.

Specifications

  • Number of LEDs: 36
  • Colours: Red, Amber, Green or Blue
  • Voltage options: 8-20VAC/DC, 20-30VAC/DC or 85-280VAC
  • IP65 rated
  • Flash Speed: 120 or 60 Per Min
  • Steady or Flashing Mode
  • PC - UV Stabilised
  • 0.25kg
  • 104mm (dia)
  • -25 °C min to 55 °C max

Click here for PDF Datasheet
