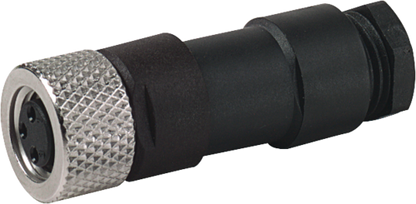

Murrelektronik 7000-08501-0000000 M8 Female Field-Wireable Connector (4-Pole, Straight)
Murrelektronik 7000-08501-0000000 M8 Female Field-Wireable Connector (4-Pole, Straight)
Regular price
$37.95
Sale price
$37.95
Regular price
Unit price
per
Tax included.
7000-08501-0000000
10 in stock

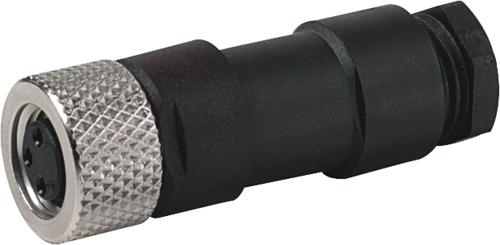

The Murrelektronik 7000-08501-0000000 is a field-wireable M8 female (socket) connector with a straight (0°) body, built for assembling your own signal and sensor/actuator leads on site. It uses solder-pin termination for a reliable, low-resistance joint and suits applications where a pre-moulded cordset isn't practical or a custom cable length is needed.
The 4-pole, A-coded insert handles standard sensor/actuator signal wiring, and the integrated cable gland seals onto 3.5–5.0 mm cable for a IP67 rating when correctly assembled and tightened.
Key features
- M8 female (socket), straight 0° body
- Field-wireable — assemble on site, no special tooling
- Solder-pin termination

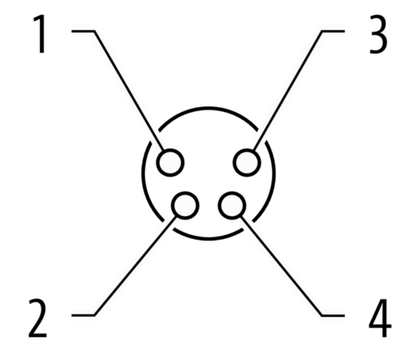

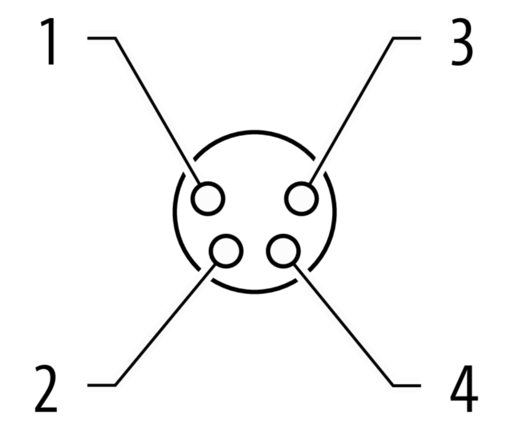

- 4-pole, A-coded
- Conductor cross-section up to 0.25 mm²
- Cable gland sealing range 3.5–5.0 mm
- IP67 when inserted and tightened (EN 60529)
- Operating temperature −25°C to +85°C
Specifications
| Connector type | M8 female (socket), field-wireable |
| Body form | Straight (0°) |
| Coding | A-coded |

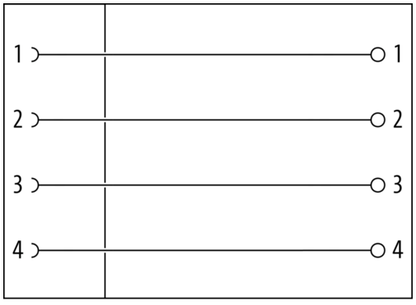

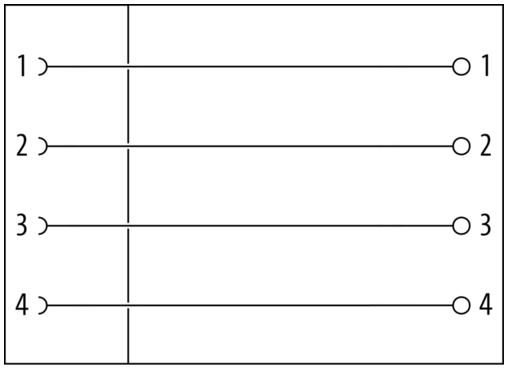

| Poles | 4 |
| Termination | Solder pins |
| Operating voltage | max. 30 V AC/DC |
| Operating current per contact | max. 4 A |
| Connection cross-section | max. 0.25 mm² |
| Cable sealing range (Ø) | 3.5–5.0 mm |
| Protection | IP67 (inserted & tightened, EN 60529) |
| Temperature range | −25°C … +85°C |
| Housing material | Plastic (PA) |
| Country of origin | DE |
| Customs tariff no. | 85369010 |

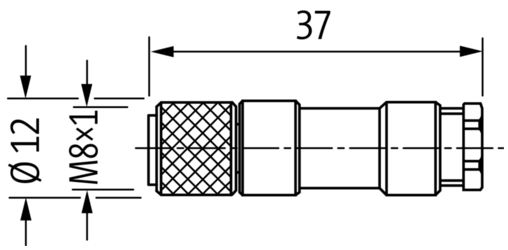

Dimensions
Dimensions
