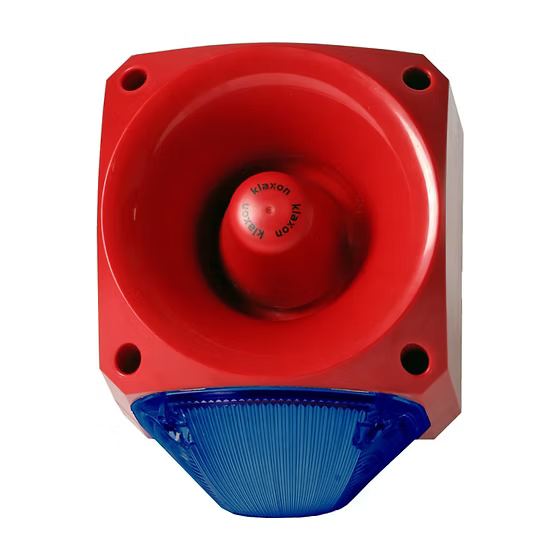

New Klaxon Nexus 110 Sounder/Beacon, LED - 116dB (max); 110dB (typical), IP66, 64 Tones
New Klaxon Nexus 110 Sounder/Beacon, LED - 116dB (max); 110dB (typical), IP66, 64 Tones
PNC-0206
The Nexus 110 is a high output, low current consumption sounder beacon designed for fire and industrial applications.
Connections are made to the base during the initial wiring phase which results in faster and more reliable installation.
In addition, the head is fixed by quarter turn fasteners enabling faster installation and accurate seal compression for weatherproofing.
The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal.
- High output LED beacon
- 105dB, 110dB and 120dB options
- Quarter turn fasteners for ease of installation
- First-fix, wire to base technology
- IP66 rated
- Three alarm stages
- Volume control for greater flexibility - 20dB
- 64 tones
- AC or DC options
|
Part No. |
Lens Colour |
Voltage |
Sounder Current |
Beacon Current |
|
PNC-0221 |
Red Beacon |
110/230V AC |
40mA (max) |
55mA |
|
PNC-0222 |
Amber Beacon |
110/230V AC |
40mA (max) |
55mA |
|
PNC-0223 |
Clear Beacon |
110/230V AC |
40mA (max) |
55mA |
|
PNC-0224 |
Blue Beacon |
110/230V AC |
40mA (max) |
55mA |
|
PNC-0225 |
Green Beacon |
110/230V AC |
40mA (max) |
55mA |
|
PNC-0206 |
Red Beacon |
10-60V DC |
10-50mA |
55mA |
|
PNC-0207 |
Amber Beacon |
10-60V DC |
10-50mA |
55mA |
|
PNC-0208 |
Clear Beacon |
10-60V DC |
10-50mA |
55mA |
|
PNC-0209 |
Blue Beacon |
10-60V DC |
10-50mA |
55mA |
|
PNC-0210 |
Green Beacon |
10-60V DC |
10-50mA |
55mA |
Specifications
Specifications

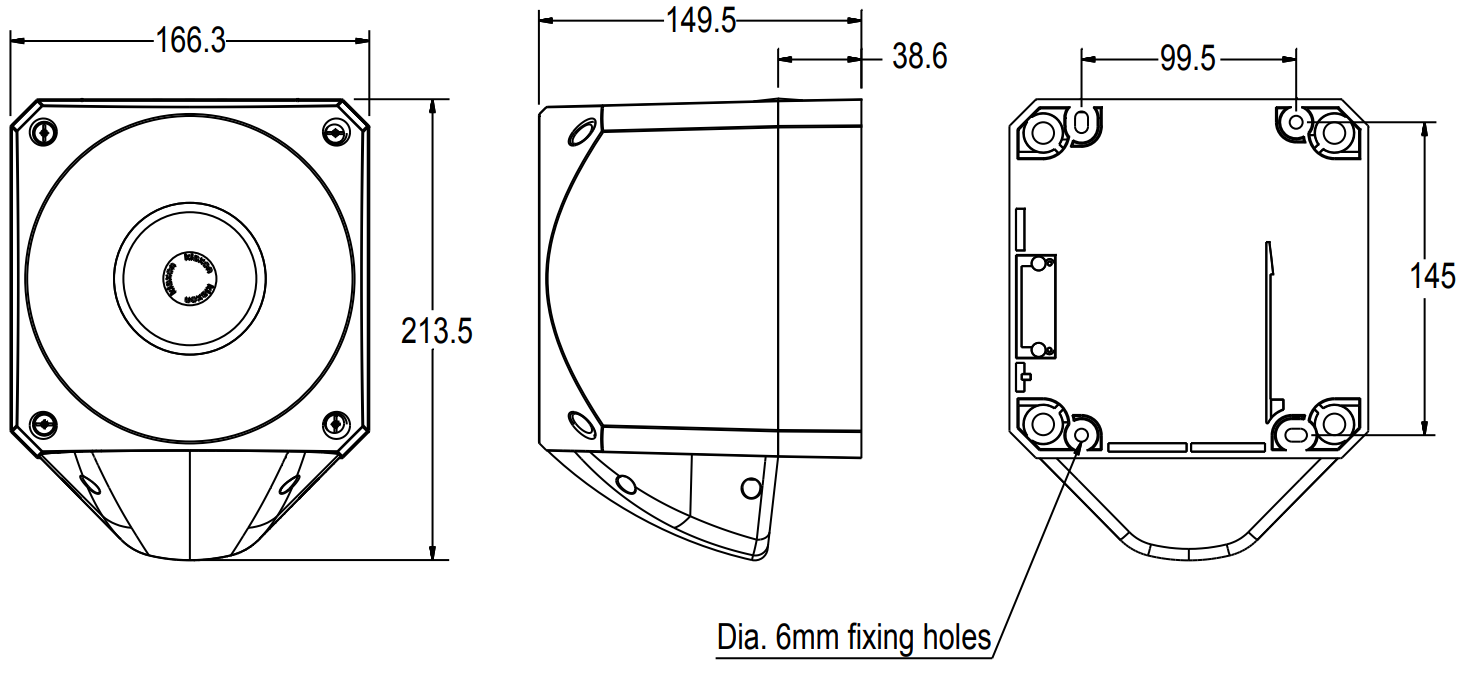

Dimensions
Dimensions
