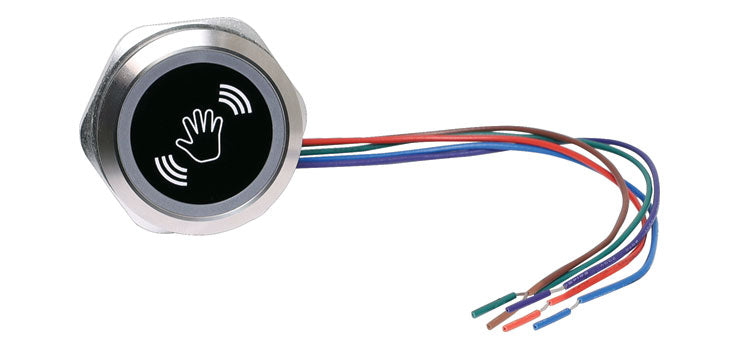

No Touch Infrared Proximity Switch

BNR

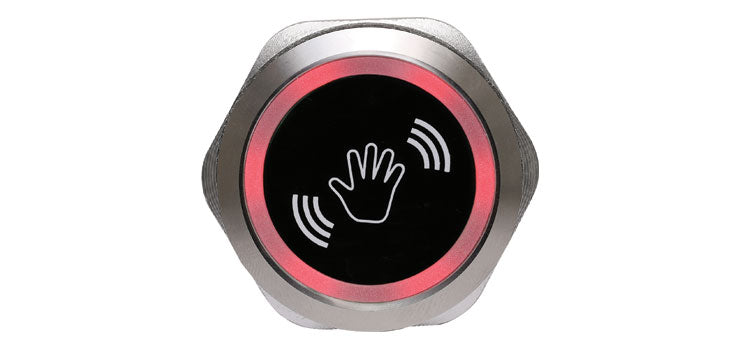

This proximity switch can be programmed to unlock an electronic door lock with a wave of your hand in front of the sensor.

The IP65 rating enables the switch to be mounted to a wall plate at an indoor or outdoor location. It can be configured to either momentary or ON/OFF activation. Excellent for no touch access control suitable for hospitals, surgeries, offices, retail shops and schools.

Features

  • “No touch” Operation

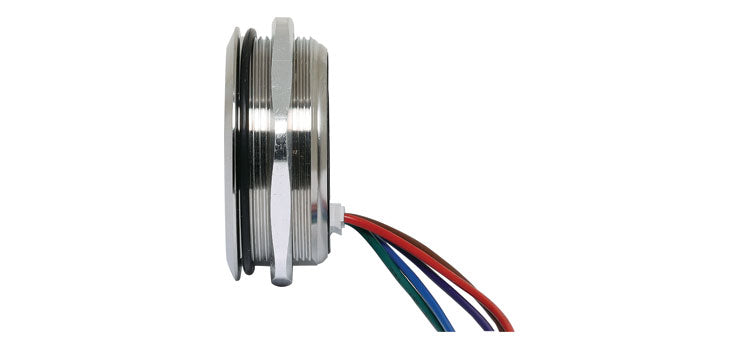

  • Rugged 38mm Stainless steel enclosure
  • 12-24V DC operation
  • Adjustable sensitivity from 4-15cm

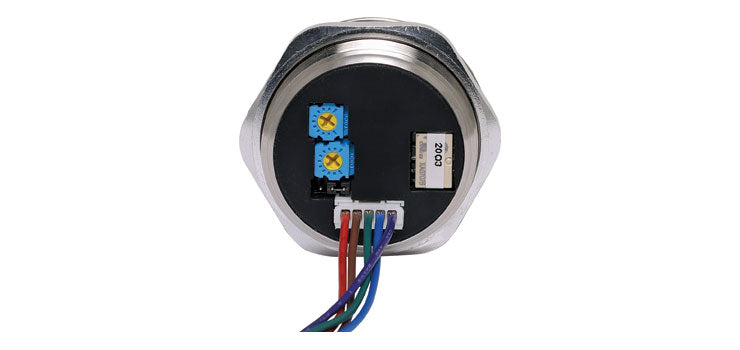

  • Adjustable on time from 0.5-30seconds
  • Can be set to toggle ON/OFF
  • NO/NC relay contacts
  • Easy Installation
  • IP65 Rated

Specifications

  • Diameter: 38mm
  • Case Material: Stainless steel and polycarbonate
  • 12V DC Power consumption: 35mA@12VDC
  • 24V DC Power consumption: 45mA@24VDC
  • Relay type: From C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC
  • Connectors: Wire Terminals
  • Response Time: 10ms
  • Output time: 0.5~30s or toggle
  • Sensing Range: 4~15cm
  • LED Status Indicator: Selectable red/green or green/red
  • Operating Life (Relay): 1,000,000 cycles
  • Operating Life (Sensor): 100,000 Hours
  • IP Rating: IP65 (front panel only)
  • Operating Temperature: -20°~55°C
