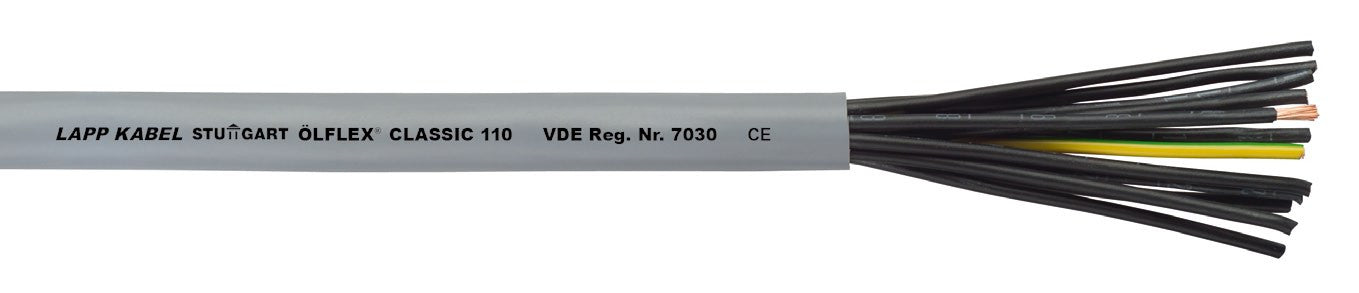

LAPP KABEL ÖLFLEX® CLASSIC 110 Oil Resistant PVC Control Cable

LAPP KABEL

Call or Email for Pricing


LAPP KABEL LOGO

Multiconductor Control Cable with numbered cores Special Lapp PVC Compound P8/1 - Slim, Light, VDE certified



Application
  • Control and connection cable especially suitable for applications in industrial ambient conditions
  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Dry or damp rooms that are subject to medium mechanical loads
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • In power chains for a travelling distance up to 5 m and 0,2 ... 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors

    •

    Area of use
  • Machine engineering
  • Plant engineering and construction
  • Paint-spray lines
  • Air conditioning installations
  • Power station

    • Advantage
  • VDE registered (production monitoring)
  • Reduced space requirements due to small outer diameters
  • The 4 kV Test Voltage ensures high insulation performance
  • Largely resistant to oil and chemicals
  • Manufactured free of substances harmful to lacquer (silicone free) and therefore suitable for use in paint shops

    • Technical notes
  • Flame-retardant acc. to IEC 60332-1-2
  • Further technical information see catalogue appendix: Selection Tables (A) and Technical Tables (T)

    •
    Cable Make-up
  • Fine strands of bare copper wires
  • Core insulation made of LAPP PVC Compound P8/1
  • Black cores with white numbers
  • Cores twisted in layers
  • Special PVC-based outer sheath compound
  • Sheath colour RAL 7001 (silver grey)

    •

    Click here for PDF Data Sheet
