LAPP KABEL ÖLFLEX® Solar XLR-R Twin Weather, Abration and UV Resistant

LAPP KABEL



LAPP KABEL LOGO

TÜV PV1-F Approved

Description

ÖLFLEX® SOLAR XLR-R cables are weather, abrasion and UV-resistant photovoltaic cables. These cross-linked, halogen free and double insulated solar cables are suitable for permanent outdoor use and especially for the interconnection of grounded and ungrounded photovoltaic power systems. The cable is approved by TÜV Rheinland according to 2PfG 1169/08.2007 (PV1-F).

Construction

Constructed using class 5, fine stranded tinned copper conductors insulated with a temperature-resistant, halogen-free cross-linked co-polymer compound and protected by an outer sheath of flameretardant, weather, abrasion and UVresistant, halogen-free black cross-linked co-polymer.

Minimum Bending Radius

Flexing: 15 x cable diameter

Fixed: 5 x cable diameter

Nominal Voltage

0.6/1kV AC

0.9/1.5kV DC

Temperature Range

Fixed: -40oC to +120oC

Approvals

TÜV approved according to;

2PfG 1169/08.2007 PV1-F.

Certificate No. R50202588002

Features
  • Weathering, abrasion, UV and ozone-resistant

  • Cross-linked, halogen-free and double insulated

  • Acid and alkaline-resistant (Oxal acid and sodium hydroxide)

  • Suitable for permanent outdoor use

  • Flame-retardant

  • Inner sheath has contrasting colour to easily identify any damage to outer sheath

Give us a call on 03 9314 7877 for a quote

Click here for PDF infomation sheet

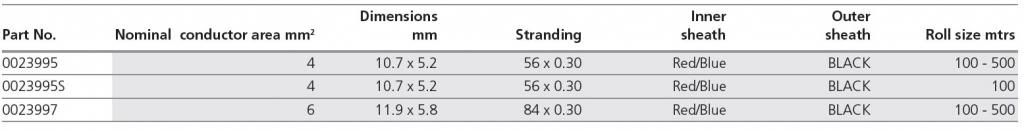

 photo twinsolar.jpg
