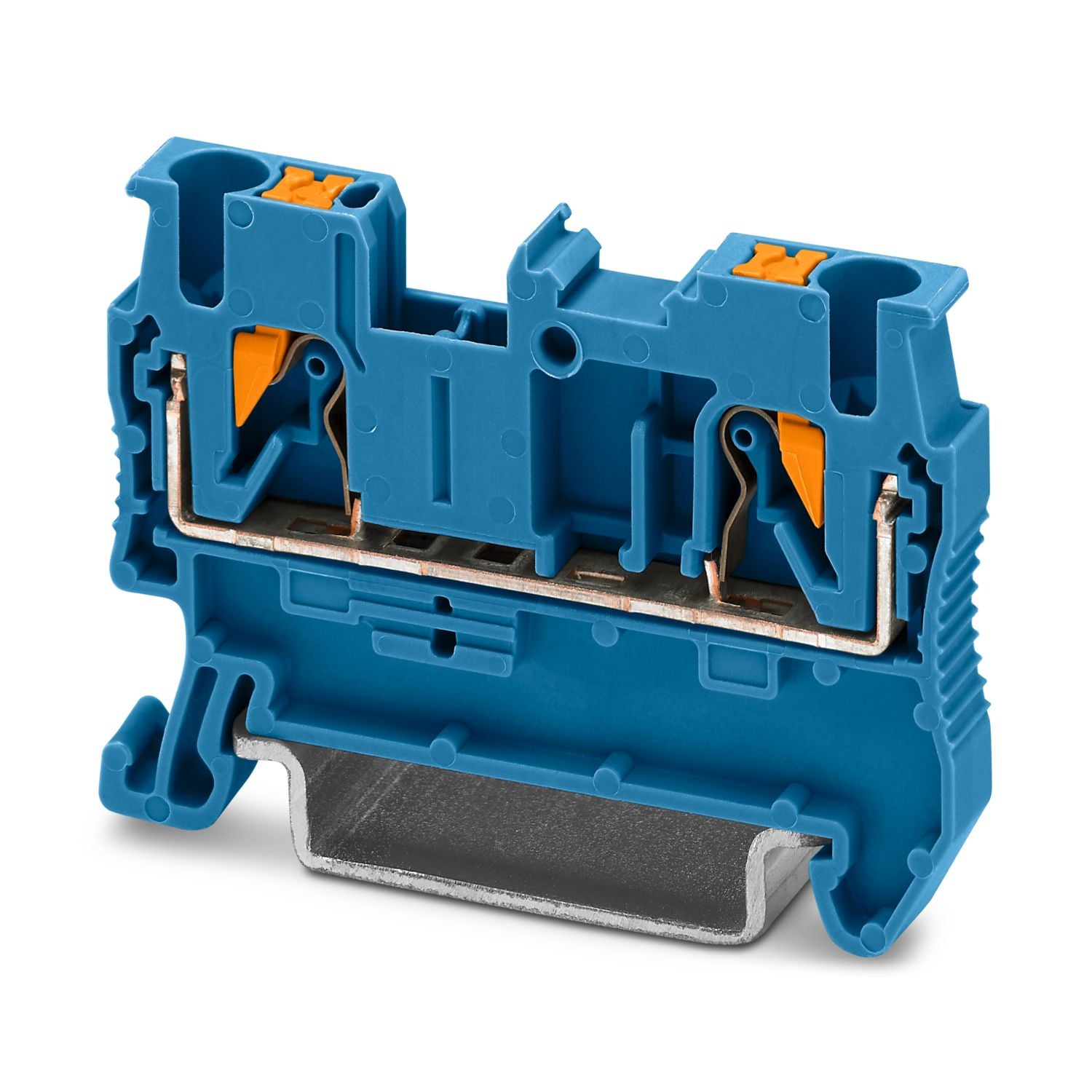

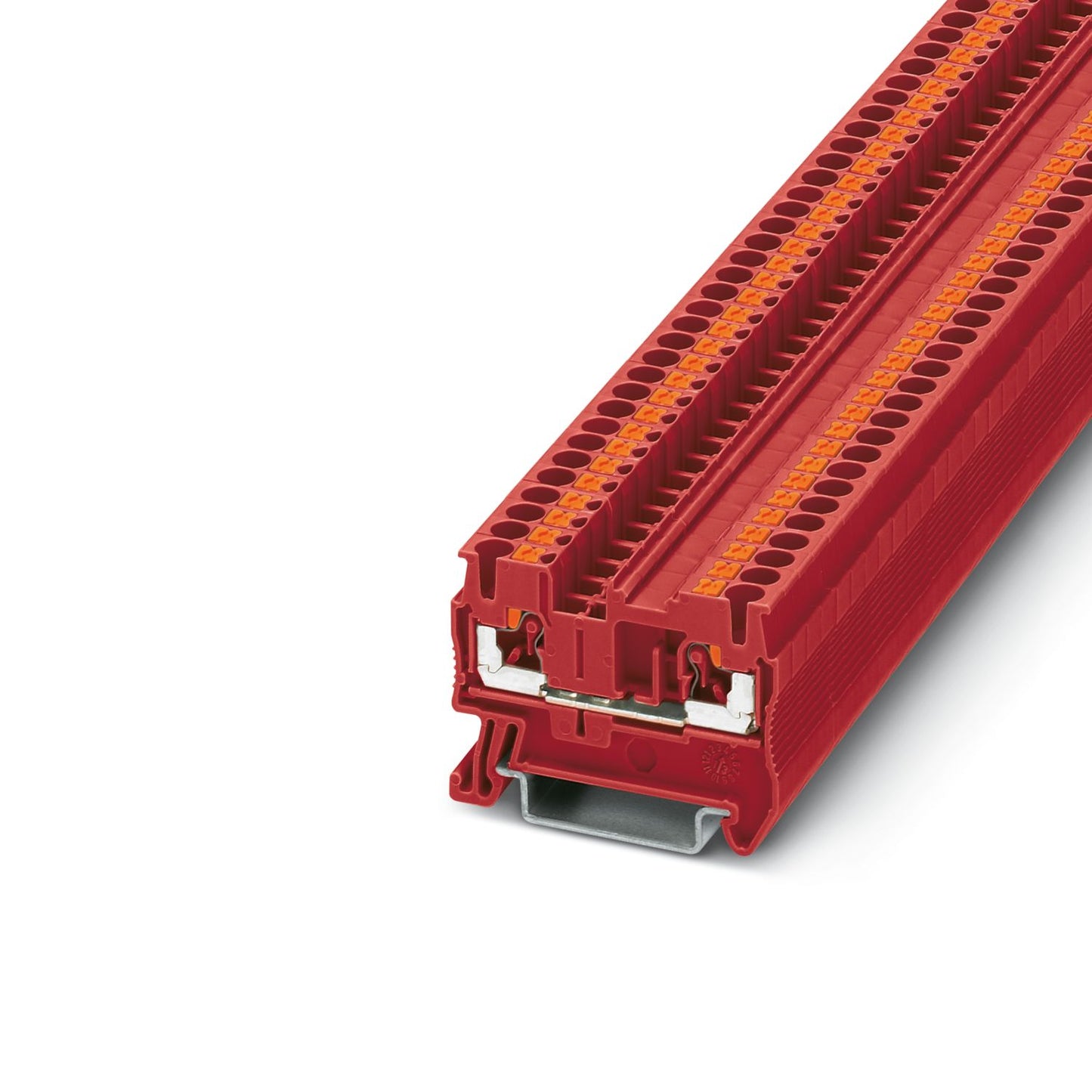

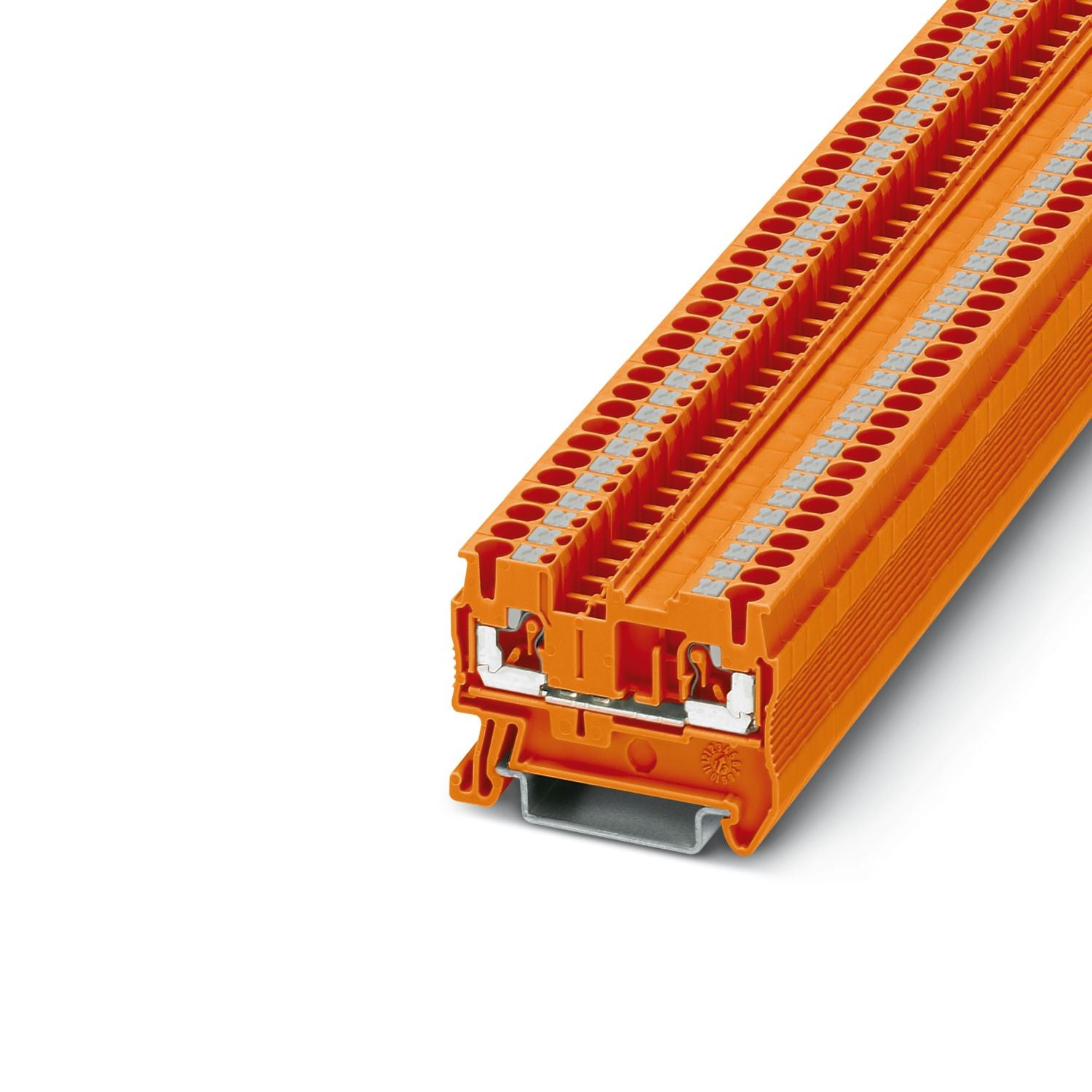

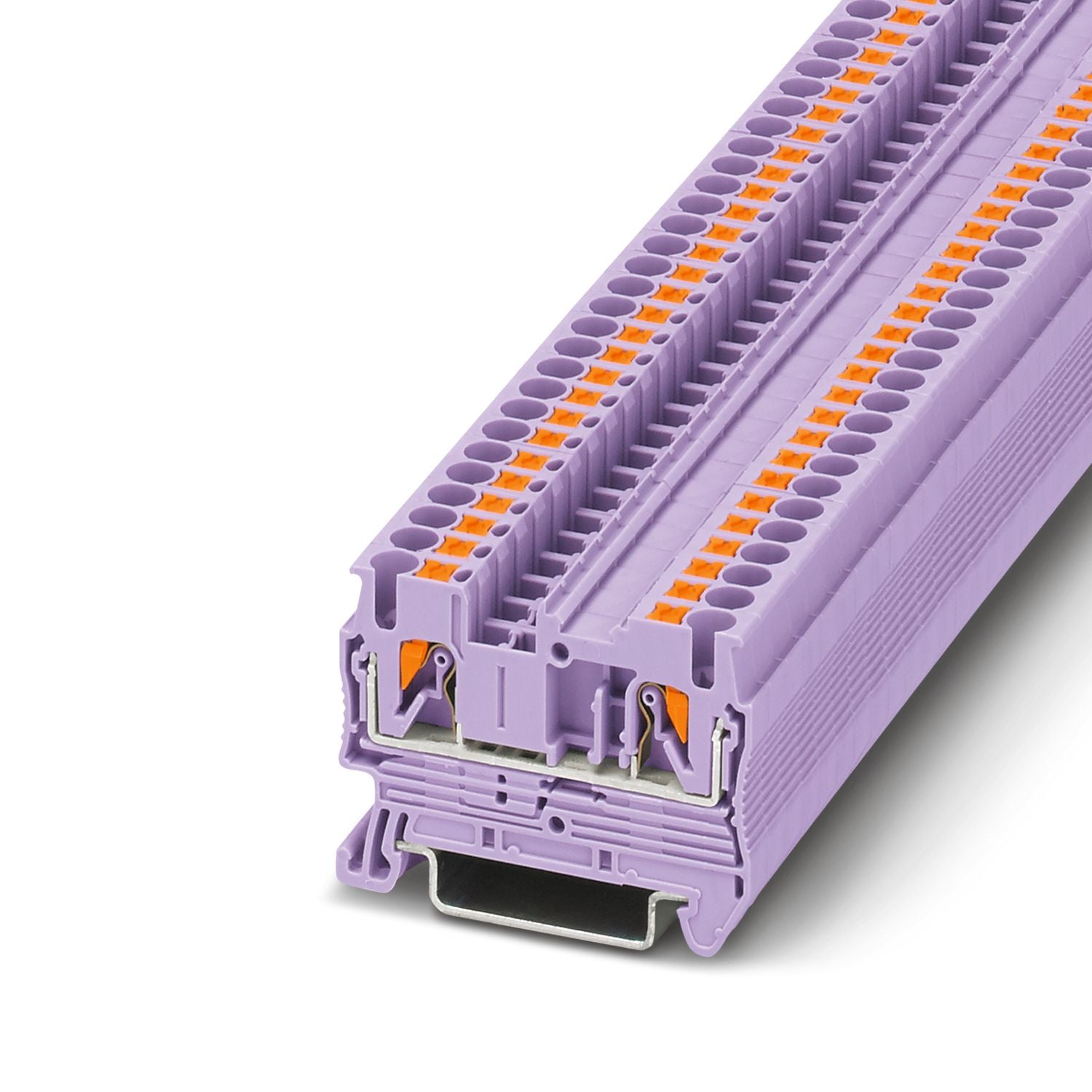

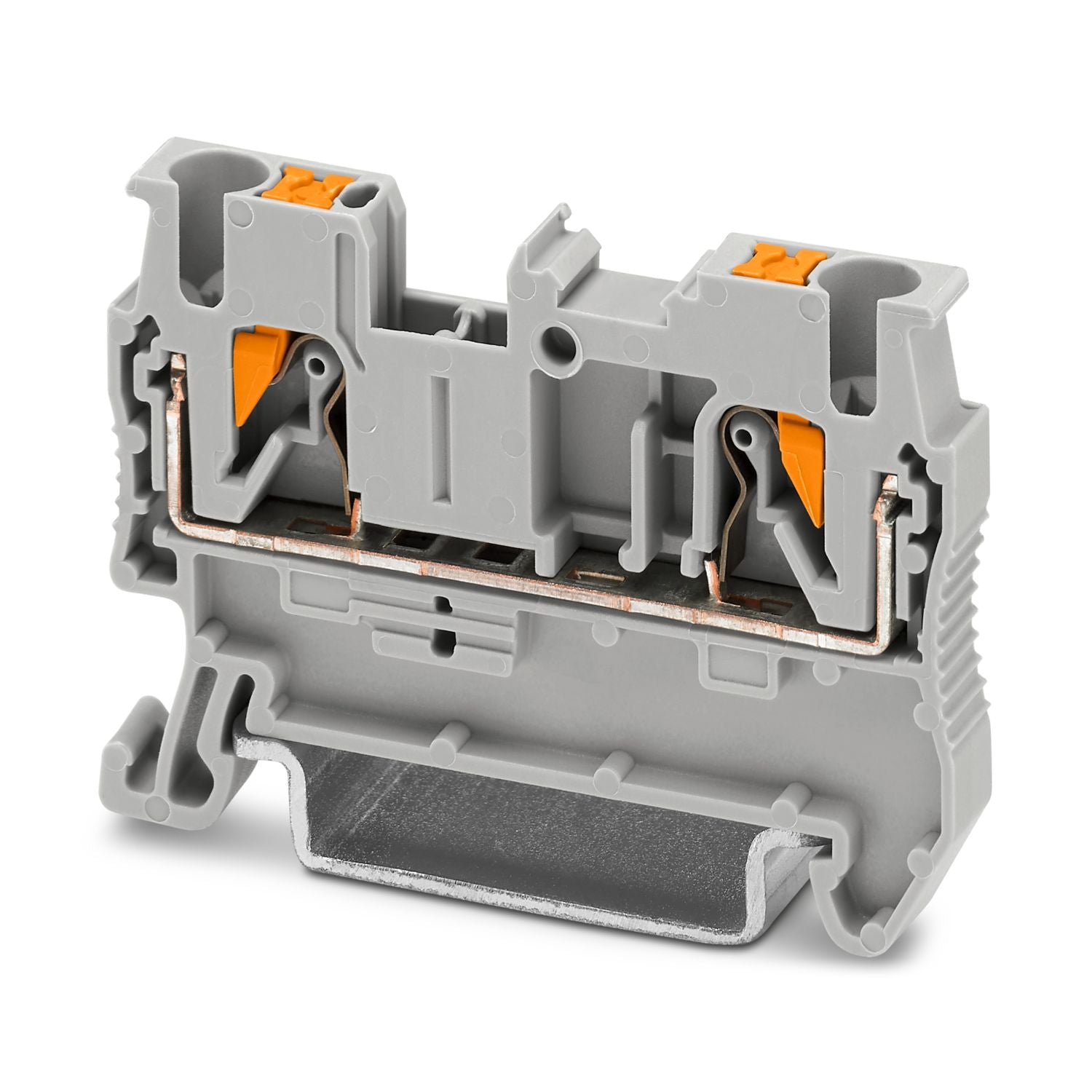

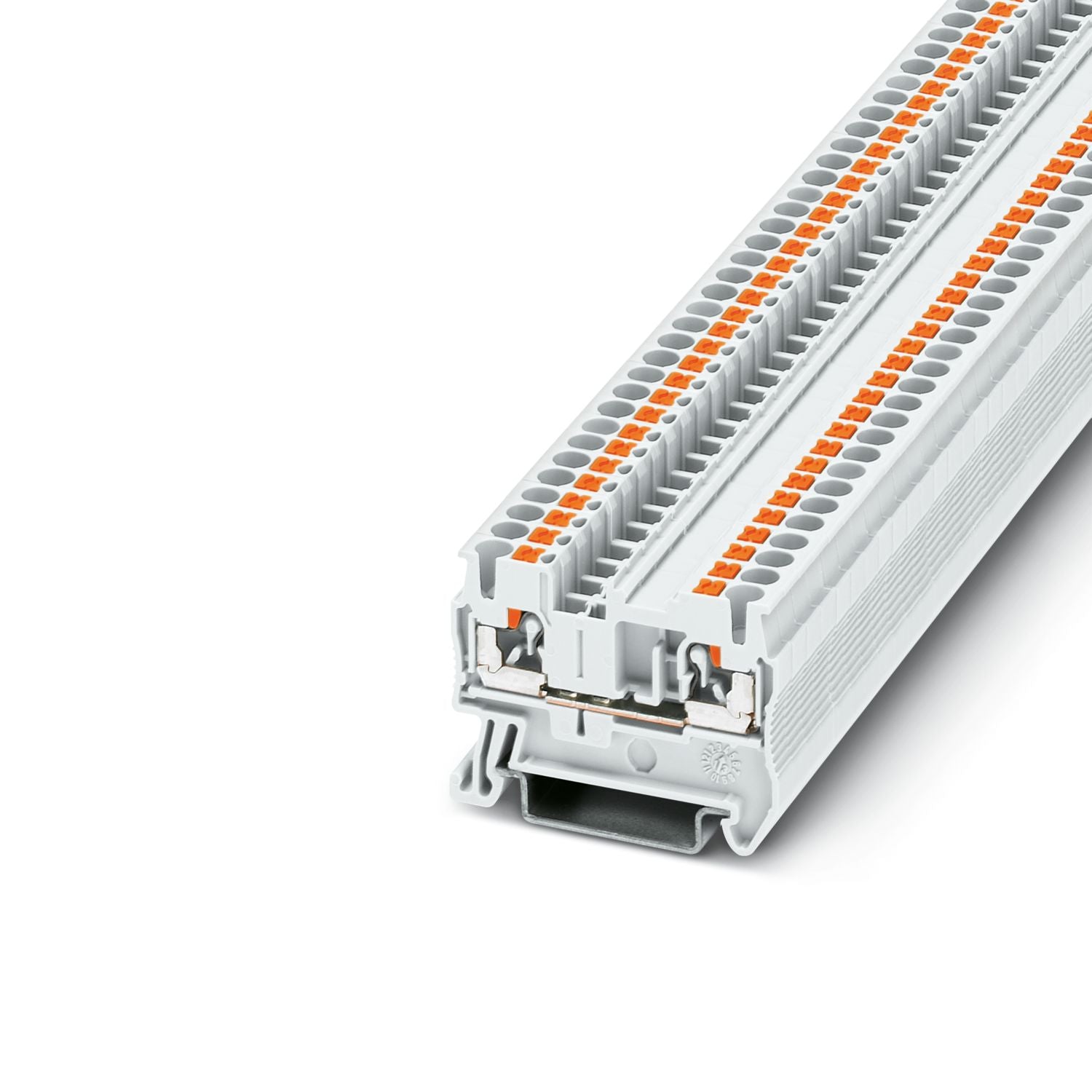

Phoenix Contact PT 2,5 - Feed-through terminal block

Phoenix Contact PT 2,5 - Feed-through terminal block

$47.50
$47.50
Tax included.

3209510

Colour: Grey

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 2, number of positions: 1, connection method: Push-in connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15.

  • Sold in packs of 50

Feed-through terminal blocks

Feed-through terminal blocks are characterized by two terminal points and a compact design. The large cross-section range of the feed-through terminal blocks allows universal use in every application. Along with the standard feed-through terminal blocks for wiring with copper litz wires, for example, Phoenix Contact also provides Al/Cu terminal blocks. The universal terminal blocks enable the connection of aluminum and copper conductors in just one terminal block.



Features

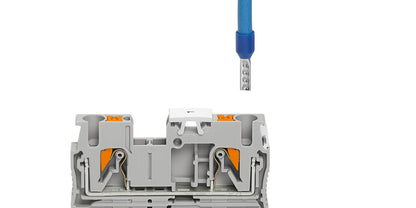

  • Time-saving conductor connection thanks to tool-free direct-connection technology
  • Convenient plugging with lower insertion force
  • High conductor pull-out forces due to the spring design
  • Vibration-resistant and maintenance-free conductor connection
  • Full flexibility thanks to the standardized CLIPLINE complete bridging, marking, and testing accessories
  • Optimized for manual and automated wiring
