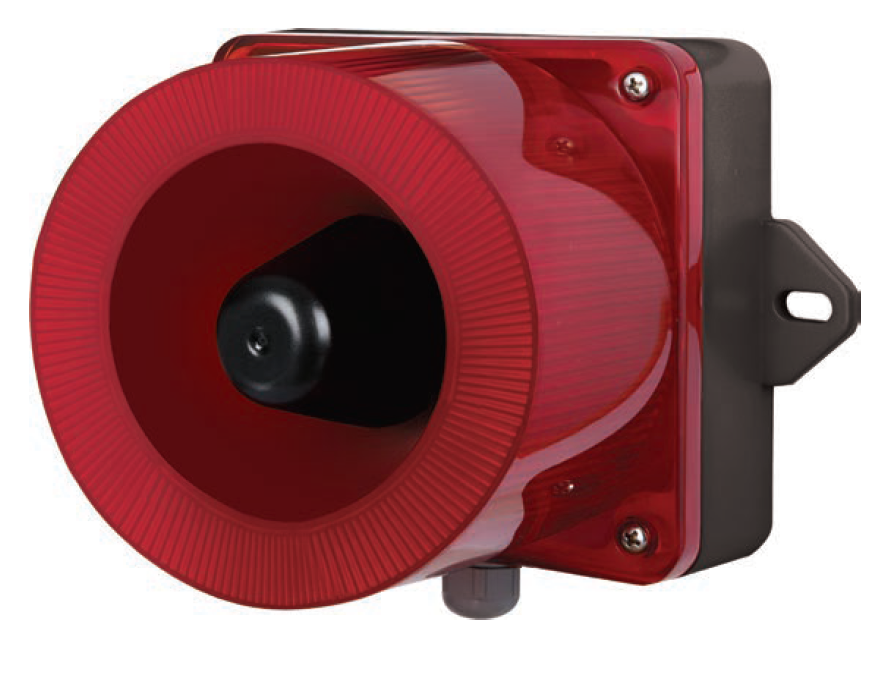

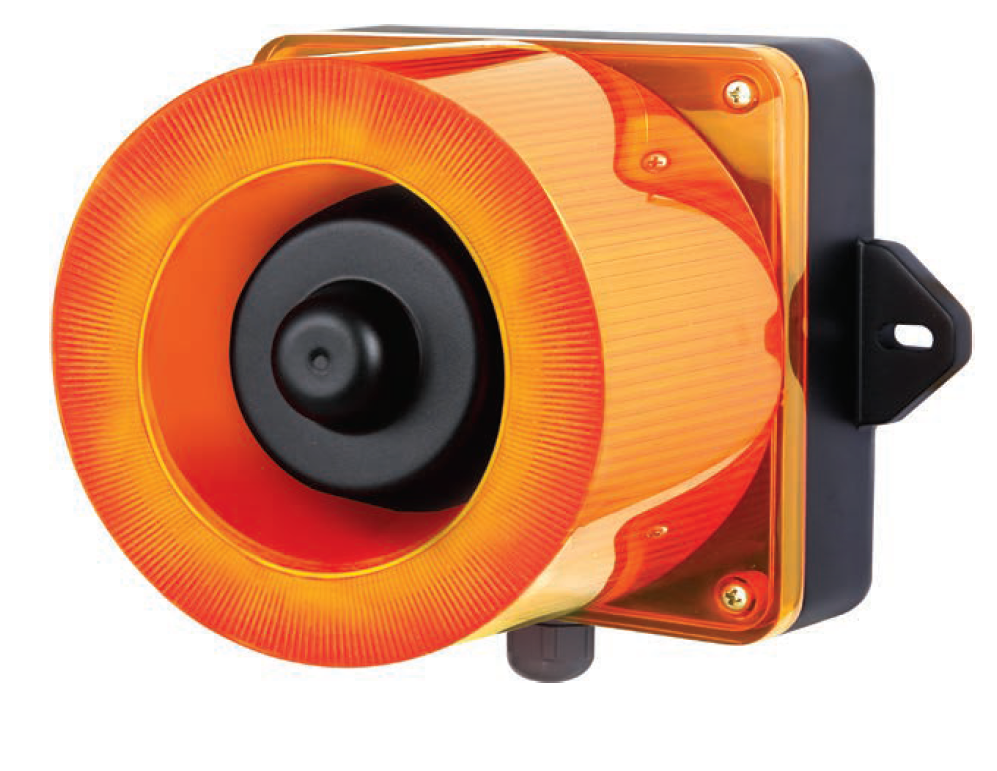

Qlight QWCD50SD 123dB Max 31 Tone Electronic Sounder/Beacon with 5ch MP3 Playback


Beacon Colour

Special order product, 5-6 week lead time

LED Strobe Signal Beacon & Electronic Sounder Combinations
Weatherproof LED Strobe Beacon Sounder / Audible & Visual Alarm

Signal light with horn for general purpose can be use in harsh environments Audible and visual alarm signal effect in one unit


  • By using the horn cover as a light globe, the size of the product has been reduced significantly
  • Easy device customization with built in sound selection function, volume adjustment function and an SDcard slot for user inputted tones
  • 31 available tones that can be selected for a variety of environments
  • The user can select their own tones by inputting the MP3 file directly into the SDcard.
  • 31 pre-recorded tones available via binary input
  • Suitable for use in environments that require a tight seal and superior dust protection rated IP66
  • Can be used in extreme environmental conditions such as the arctic where temperatures can reach -50°C
  • Flashing rate : 60-80 flashes/min(steady/flashing mode selection available in built in switch)
  • Materials : Horn-PC, Body-ABS
  • Ambient operating temperature : -50°C to +60°C(Standard type)
                     -20°C to +50°C
  • Protection Rating : IP66
  • Certificates : CE Compliant, UL Listed
  • Compliant with RoHS directive
  • Cable entry: PG 13.5 (M20)


  • Voltage: 10-30VDC 3.3A Max, 100-240VAC 0.65A Max
  • Bit Input: 5Ch (SDcard only)
  • Binary Input: 31Ch
  • Warning sound: 123dB
  • MP3 sound: 118dB
  • Weight: 3.0kg
  • Beacon Colours: Red, Amber, Green, Blue
