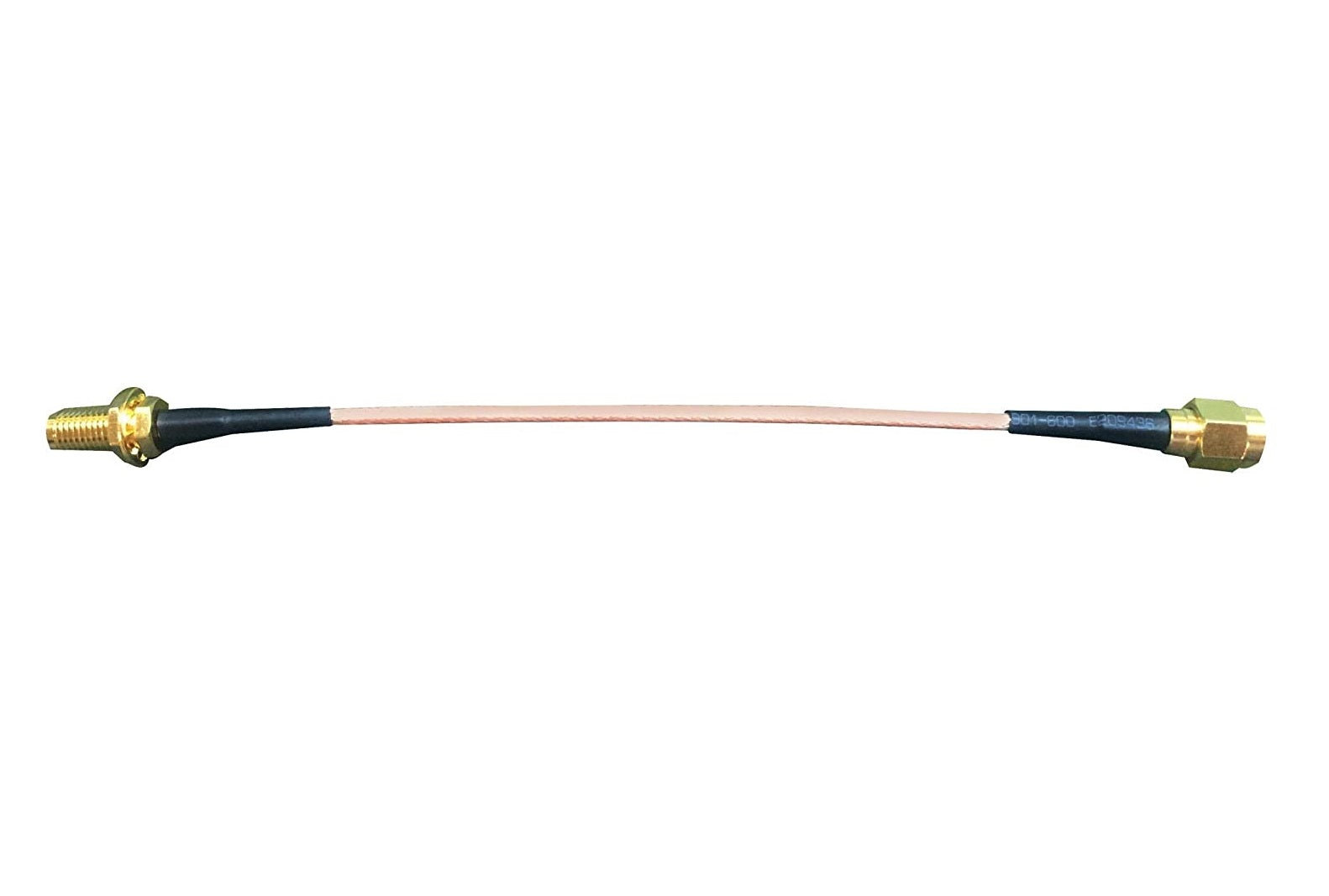

RF / Coaxial Cable Assembly, RG316, SMA Straight Plug, SMA Bulkhead Jack, RG316, 6", 152mm length

Multicomp

Supplied with rubber washer for watertight seal to surface.

6.5mm Dia hole cut out

  • Connector Type A : SMA Right Angle Plug
  • Connector Type B : SMA Bulkhead Jack
  • Coaxial Cable Type : RG316
  • Cable Length - Imperial : 6"
  • Cable Length - Metric : 152mm

Specifications

Frequency Range : 0 to 3GHz VSWR : ≤1.3

Insertion Loss : ≤0.5db

Body : Brass Nickel

Centre contact : Brass Gold

Insulator : PTFE
