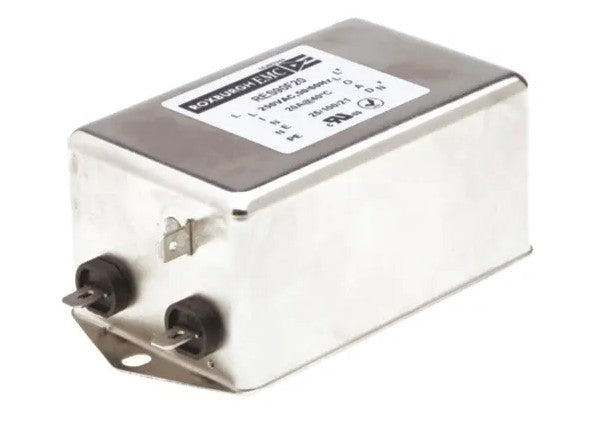

Roxburgh EMC, 20A 250 V ac DC → 60Hz, Chassis Mount RFI Filter, Fast-On, Single Phase - RES90F20
Roxburgh EMC, 20A 250 V ac DC → 60Hz, Chassis Mount RFI Filter, Fast-On, Single Phase - RES90F20
Regular price
$150.00
Sale price
$150.00
Regular price
$210.00
Unit price
per
Tax included.
RES90F20
1 in stock
Roxburgh EMC RES90 Series
Roxburgh EMC RES90 series of multi-stage, single phase EMC filters featuring very high differential and common mode attenuation. The RES90 series is designed for use in applications where high levels of noise are present such as where drives are used. Typical applications for the RES90 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Multi-stage
Very high differential and common mode attenuation
Excellent attenuation performance
For use from DC to 60Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Very high differential and common mode attenuation
Excellent attenuation performance
For use from DC to 60Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
Rated Voltage: 250VAC max
Rated Current at Ambient: 20A @ 40°C
Operating Frequency: DC-60HZ
Climatic Class (IEC60068-1): 25/100/21
Temperature Range: -25°C to +100°C
Overload Current: 1.5 x Rated Ct. for 1 Min
Operational Leakage current (at 230VAC and Total C +/-20%): 1.02 mA max
Worst case Leakage current (N interrupted and Total C +/-20%): <3.46 mA max
DCR @ 25°C (+/-25%): 50 mΩ
Test Voltage (100%) for 2 sec:-
* P-P: 1100VDC
* P-GND: 3000VDC
Ingress Protection: IP20
