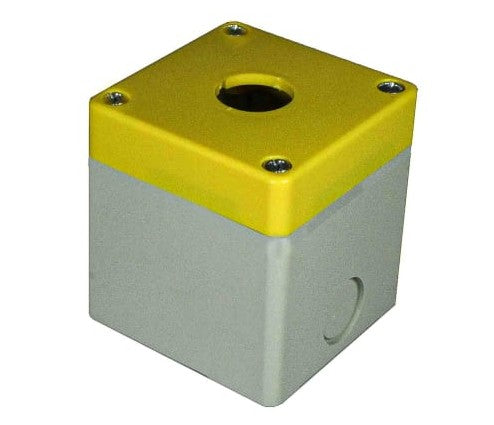

RS PRO Grey/Yellow ABS Push Button Enclosure - 1 Hole 22mm Diameter - 194-7459
$15.50 $35.90
RS PRO Two-Part ABS Push Button Enclosure with 1 Hole, 70 x 70 x 74, Yellow
Introducing the range of RS PRO IP65 Push Button ABS Enclosures. These two-part enclosures are a high-quality and versatile enclosure solution, ideal for housing push buttons within industrial environments. The enclosure offers 1 hole moulded for 22mm diameter control switches as a general industry standard and comes pre-assembled to save time for installation of the enclosure. It also features an additional 21mm diameter knockout as an added option to ensure greater versatility should an additional hole be required. Made from highly durable ABS plastic, these enclosures ensure optimum protection from grease, oil and chemical exposure, making these enclosures ultra-protective and reliable for a wide range of applications.
| RS PRO | |
| Series | CCS |
| Cutout Diameter | 22mm |
| Number of Cutouts | 1 |
| Enclosure Colour | Grey/Yellow |
| Enclosure Material | ABS |
| IP Rating | IP65 |
| Length | 70mm |
| Width | 70mm |
| Depth | 74mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Dimensions | 70 x 70 x 74mm |
| For Use With | Control Switch and Equipment |
| Operating Temperature Range | -25 → +70°C |
