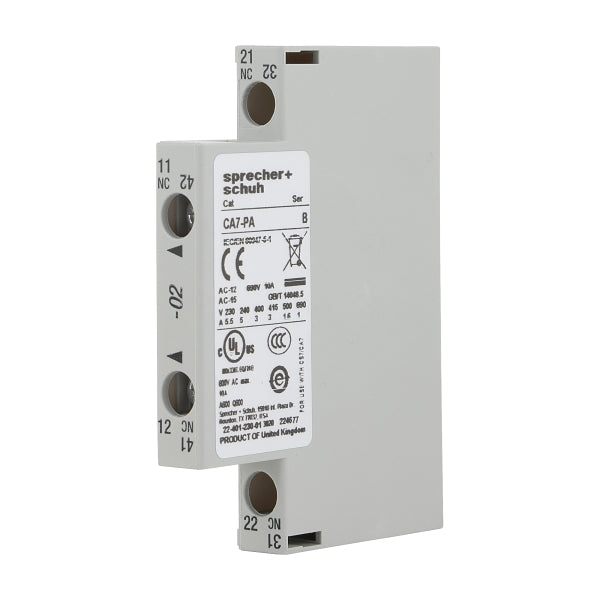

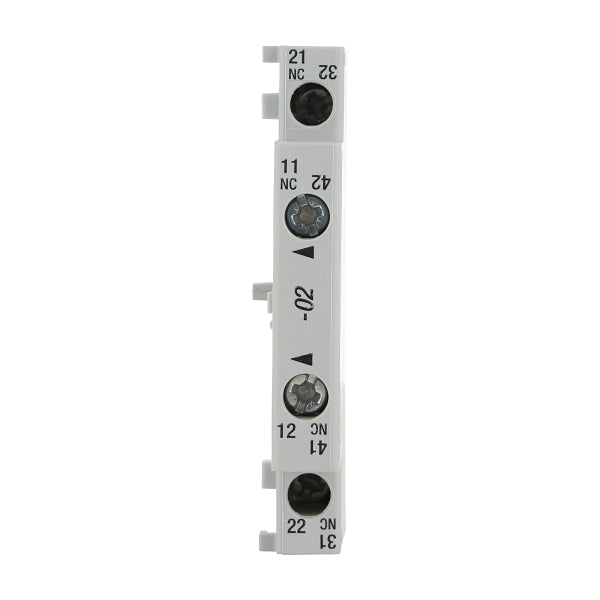

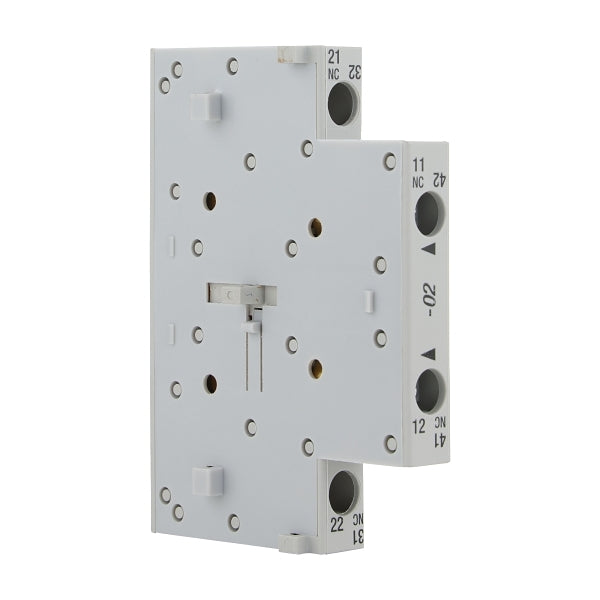

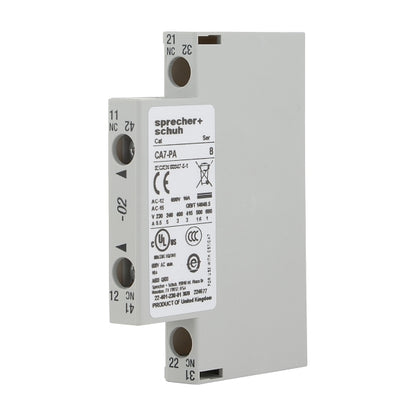

S+S CA7 Auxiliary Contact with 2NC Contact Side Mount - CA7-PA-02

Sprecher + Schuh

$45.00 $90.50

1 item left
The Official website for all your motor control and protection needs | Sprecher + Schuh
  • Number of contacts as normally closed contact: 2
  • Rated insulation voltage Ui: 690 V
  • Rated operation current Ie at 40 °C Tu: 10 A
  • Rated operation current Ie at AC-15, 24 V: 6 A
  • Rated operation current Ie at AC-15, 120 V: 6 A
  • Rated operation current Ie at AC-15, 240 V: 5 A
  • Rated operation current Ie at AC-15, 400 V: 3 A
  • Rated operation current Ie at DC-12, 24 V: 6 A
  • Rated operation current Ie at DC-12, 110 V: 1 A
  • Rated operation current Ie at DC-12, 220 V: 0.5 A
  • Rated operation current Ie at DC-13, 24 V: 5 A
  • Rated operation current Ie at DC-13, 110 V: 0.68 A
  • Rated operation current Ie at DC-13, 220 V: 0.32 A
  • Min. contact rating current: 10 mA
  • Min. contact rating voltage: 17 V
  • Rated operation current Ie at AC-15, 230 V: 5.5 A
  • Mounting method: Side mounting
