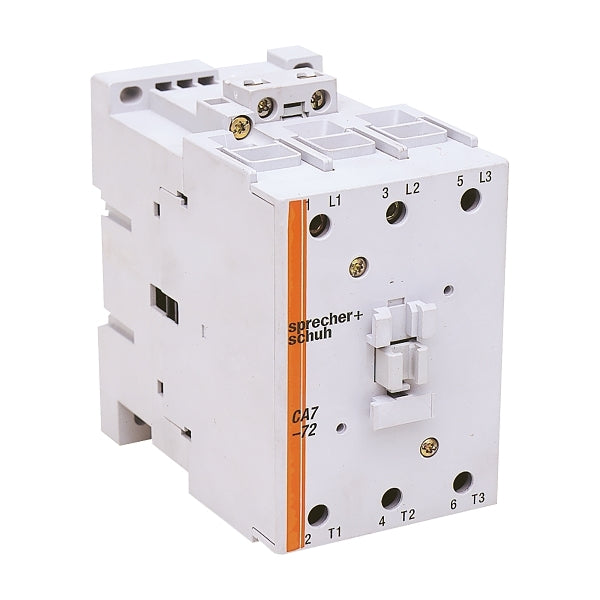

S+S CA7 Contactor 37kW 3Pole 110VDC Coil - CA7-72D-00-110VDC
$800.00 $1,850.00
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Rated operation current Ie at AC-3, 400 V: 72 A
- Rated operation power at AC-3, 400 V: 40 kW
- Rated operation current Ie at AC-1, 400 V: 100 A
- Max. rated operation voltage Ue AC: 690 V
- Voltage type for actuating: DC
- Control supply voltage Us at DC: 110 V
- Number of auxiliary contacts as normally open contact: 0
- IP rating: IP2X
- Mounting method: Screw mounting
- Height: 122mm
- Width: 72mm
- Depth: 125.5mm
- Weight: 1.47kg
