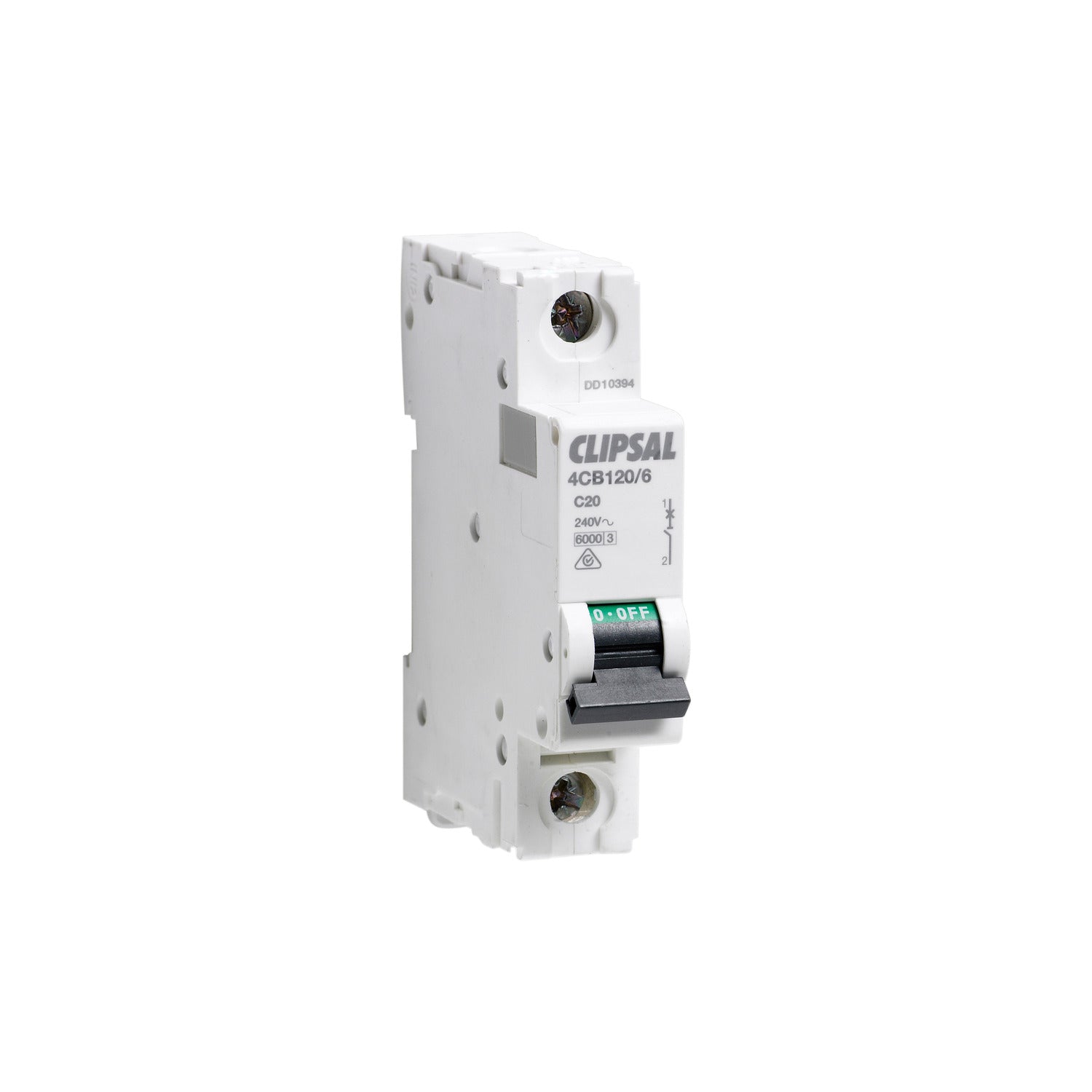

• Schneider Electric 4CB Single Pole Miniature Circuit Breaker Schneider Electric 20A - BNR Industrial Automation

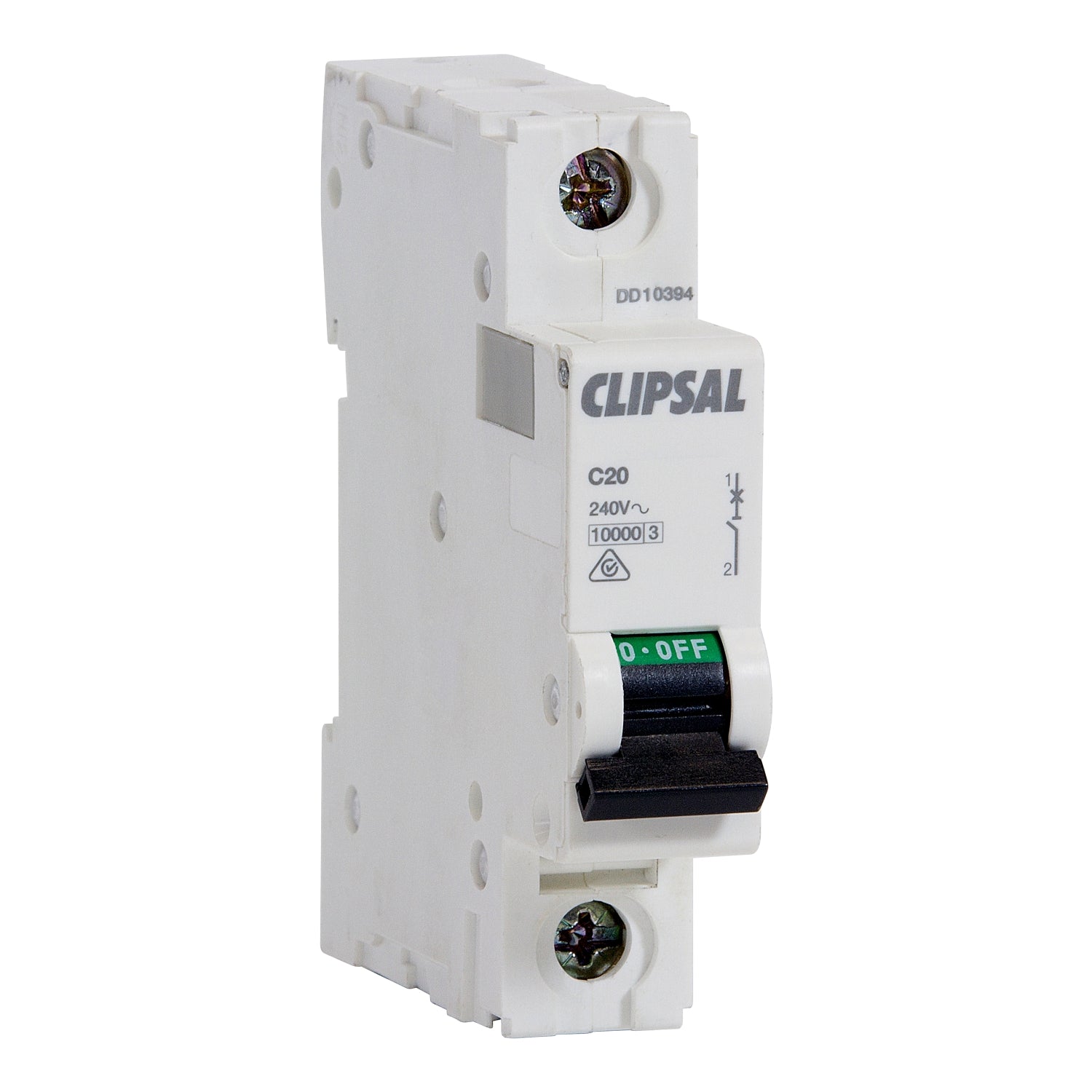

  • Schneider Electric 4CB Single Pole Miniature Circuit Breaker Schneider Electric 10A - BNR Industrial Automation

Schneider Electric 4CB Single Pole Miniature Circuit Breaker

Schneider Electric 4CB Single Pole Miniature Circuit Breaker

Schneider Electric

$12.00
$12.00
Tax included.

4CB110/6

3 in stock
Amperage

Miniature circuit breaker, Clipsal - Max 4, 1P 20 A C curve 6000 A 240 V

This Clipsal Series 4 product is a low voltage miniature circuit breaker (MCB). The rated short circuit breaking capacity is up to 6kA at 240VAC conforming to IEC 60947-2 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ue operational voltage is 240VAC. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The dimensions are (W) 18mm x (H) 81mm x (D) 78.5mm. The weight is 115g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.

Specifications

Curve code: C
Number of poles: 1
[In] rated current: 10 A, 20 A
Number of modules: 1
[Ue] rated operational voltage: 240 V
Breaking capacity: 6 kA conforming to IEC 60947-2
Network type: AC
Network frequency: 50/60 Hz
Mechanical durability: 20000 cycles
Electrical durability: 20000 cycles
Connections - terminals: Screw terminal for 1 cable(s) 0.75…16 mm² rigid, Screw terminal for 1 cable(s) 0.33…10 mm² flexible, Screw terminal for 1 cable(s) 0.33…10 mm² flexible with ferrule
Wire stripping length: 13 mm
Tightening torque: 2 N.m
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation: -25…70 °C
Ambient air temperature for storage: -40…70 °C
Standards: AS/NZS 60898
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Height: 81 mm
Width: 18 mm
Depth: 78.5 mm
Product weight: 115 g
