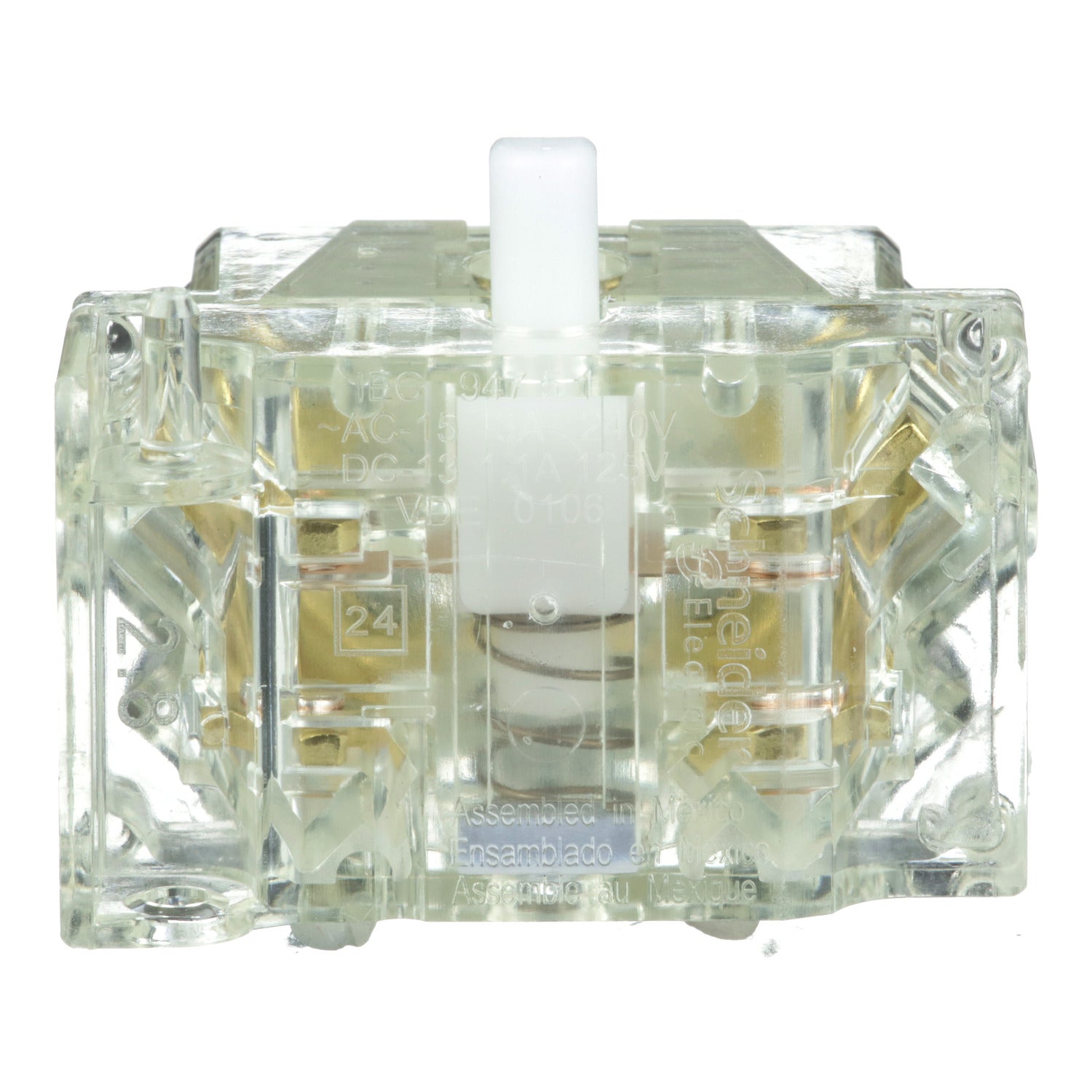

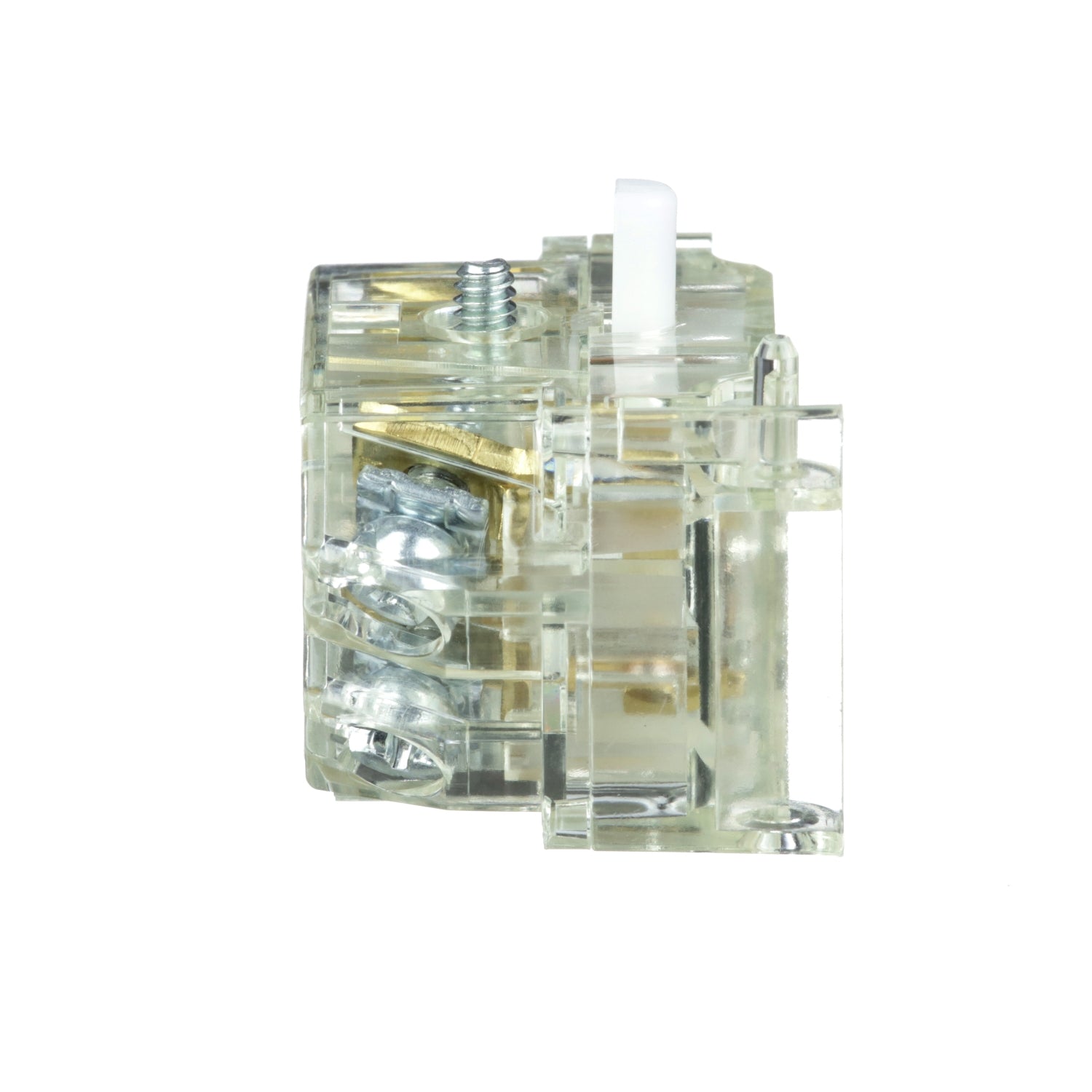

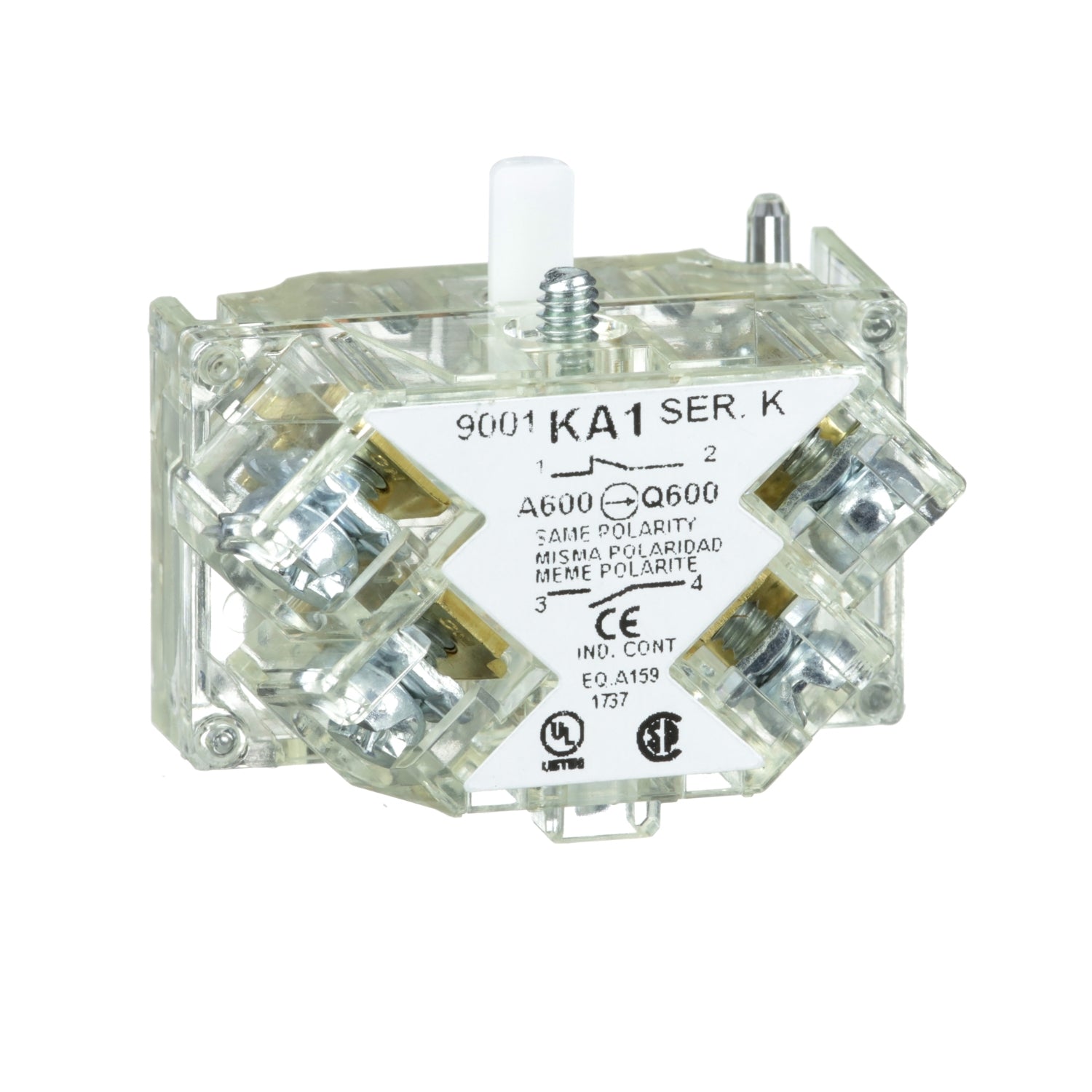

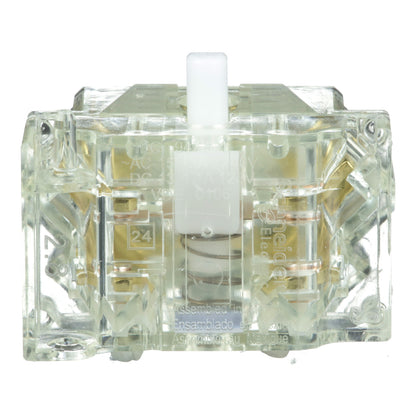

Schneider Electric Harmony 9001K Contact Block, SPDT NO & NC - 9001KA1
$52.80
Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO
Contact operation: Positive opening
Positive opening: Without
Connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted
Contacts material: Silver alloy contacts
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Ui] rated insulation voltage: 250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
[Ie] rated operational current:
* 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
* 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
[Icm] rated short-circuit making capacity:
* 12 kA at 600 V AC-15, 7200 VA
* 15 kA at 480 V AC-15, 7200 VA
* 30 kA at 240 V AC-15, 7200 VA
* 60 kA at 120 V AC-15, 7200 VA
* 0.1 kA at 600 V DC-13, 7200 VA
* 0.27 kA at 250 V DC-13, 7200 VA
* 0.55 kA at 125 V DC-13
Rated breaking capacity:
* 3 kA at 240 V AC-15, 720 VA
* 6 kA at 120 V AC-15, 720 VA
* 1.2 kA at 600 V AC-15, 720 VA
* 1.5 kA at 480 V AC-15, 720 VA
* 0.1 kA at 600 V DC-13
* 0.27 kA at 250 V DC-13
* 0.55 kA at 125 V DC-13
