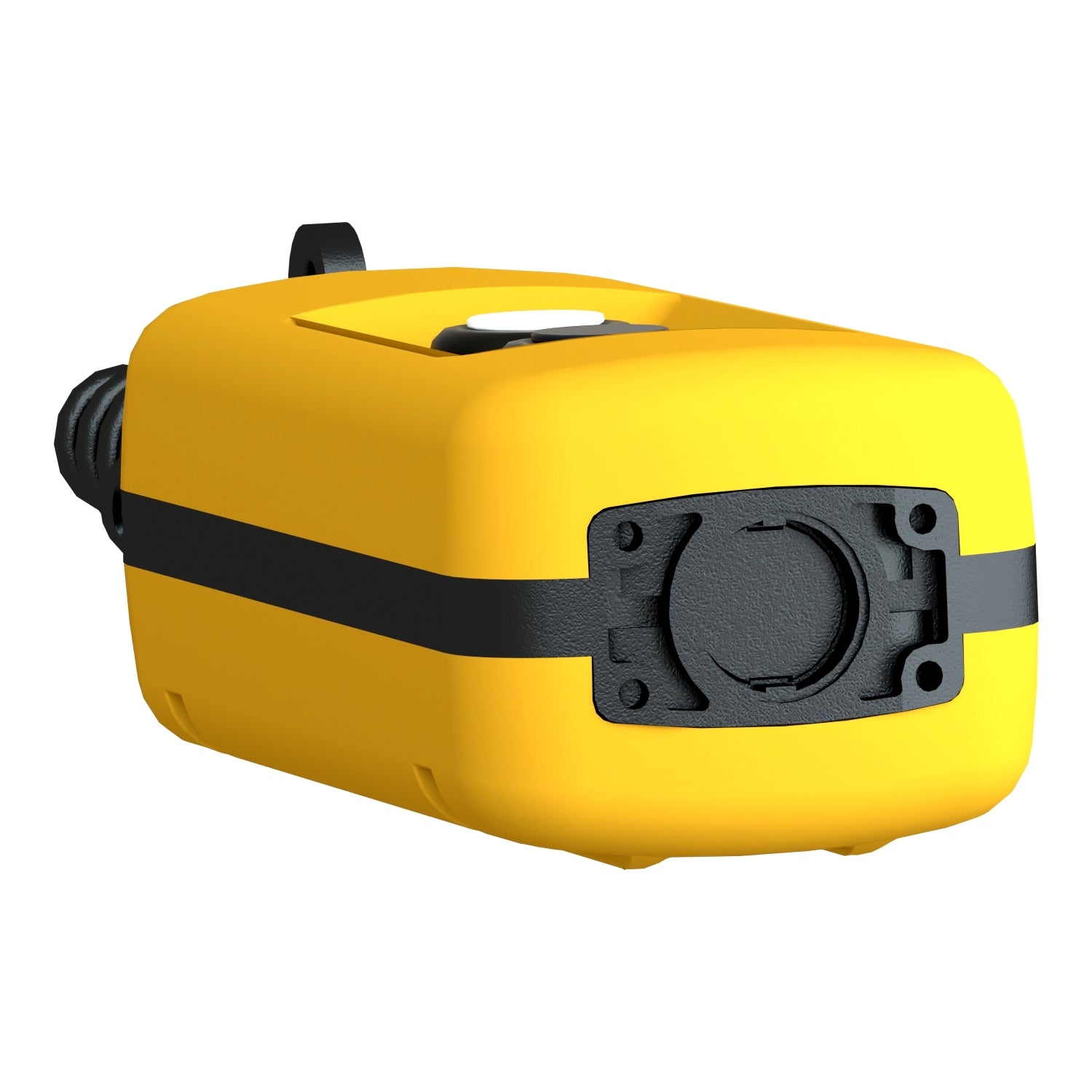

Schneider Electric XACA281 Pendant Control Station

Range of product: Harmony XAC
Product or component type: Pendant control station
Device short name: XACA
Control station type: Double insulated
Enclosure material: Polypropylene
Electrical circuit type: Control circuit
Enclosure type: Complete ready for use
Control station application: Control of single speed hoist motor

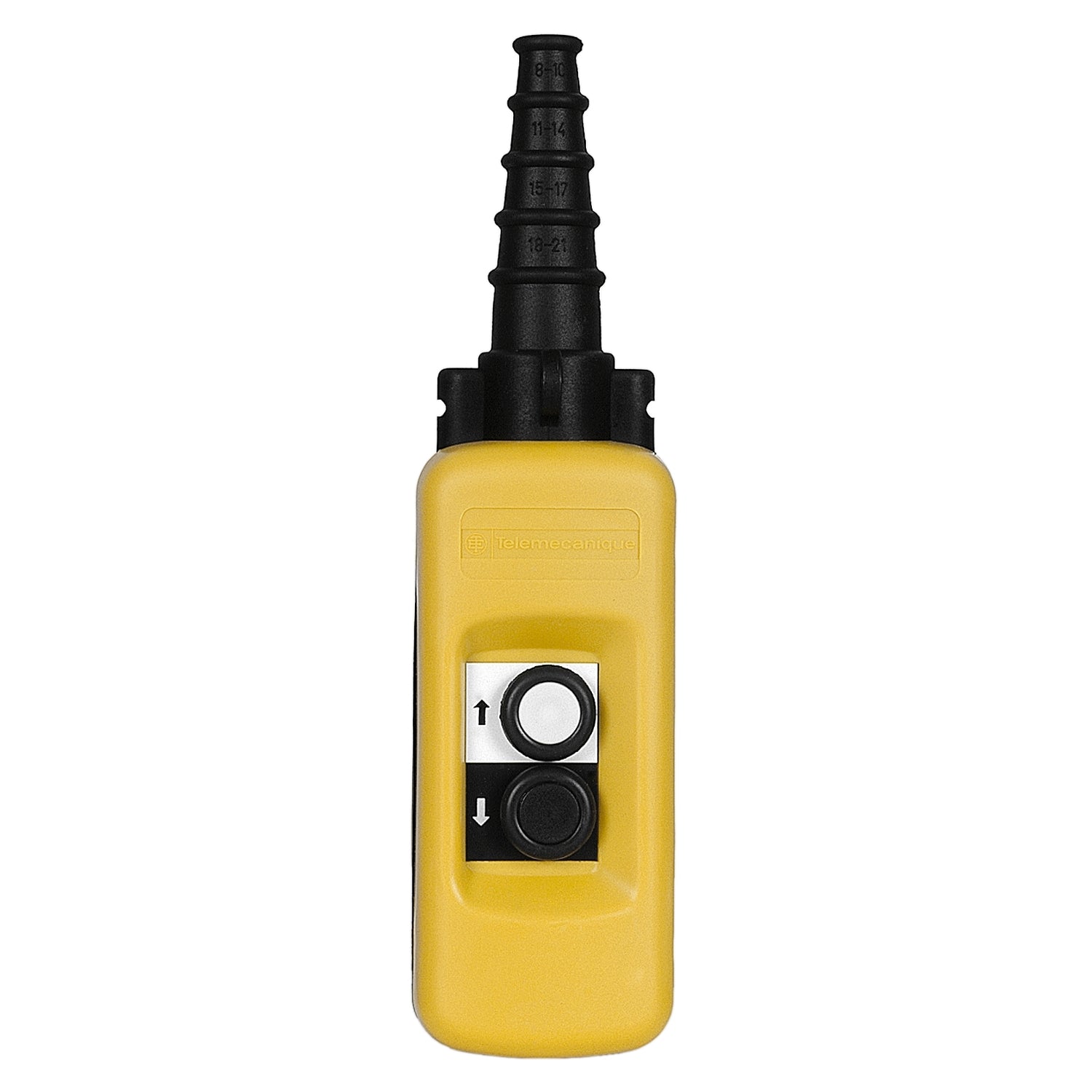

Control station composition: 2 push-buttons
Control button type: First push-button 1 NC + 1 NO raise, slow
Second push-button 1 NC + 1 NO lower, slow
Product compatibility: ZB2BE102 + ZB2BE101 for each direction
Mechanical interlocking: With mechanical interlocking
Control station colour: Yellow
Connections - terminals: Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Standards: IEC 60204-32, IEC 60947-5-1, CSA C22.2 No 14, UL 508
Product certifications: CCC, GOST
Protective treatment: TH
Ambient air temperature for operation: -25…70 °C
Ambient air temperature for storage: -40…70 °C
Vibration resistance: 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 100 gn conforming to IEC 60068-2-27
Overvoltage category: Class II conforming to IEC 61140
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK08 conforming to IEC 62262
Mechanical durability: 1000000 cycles

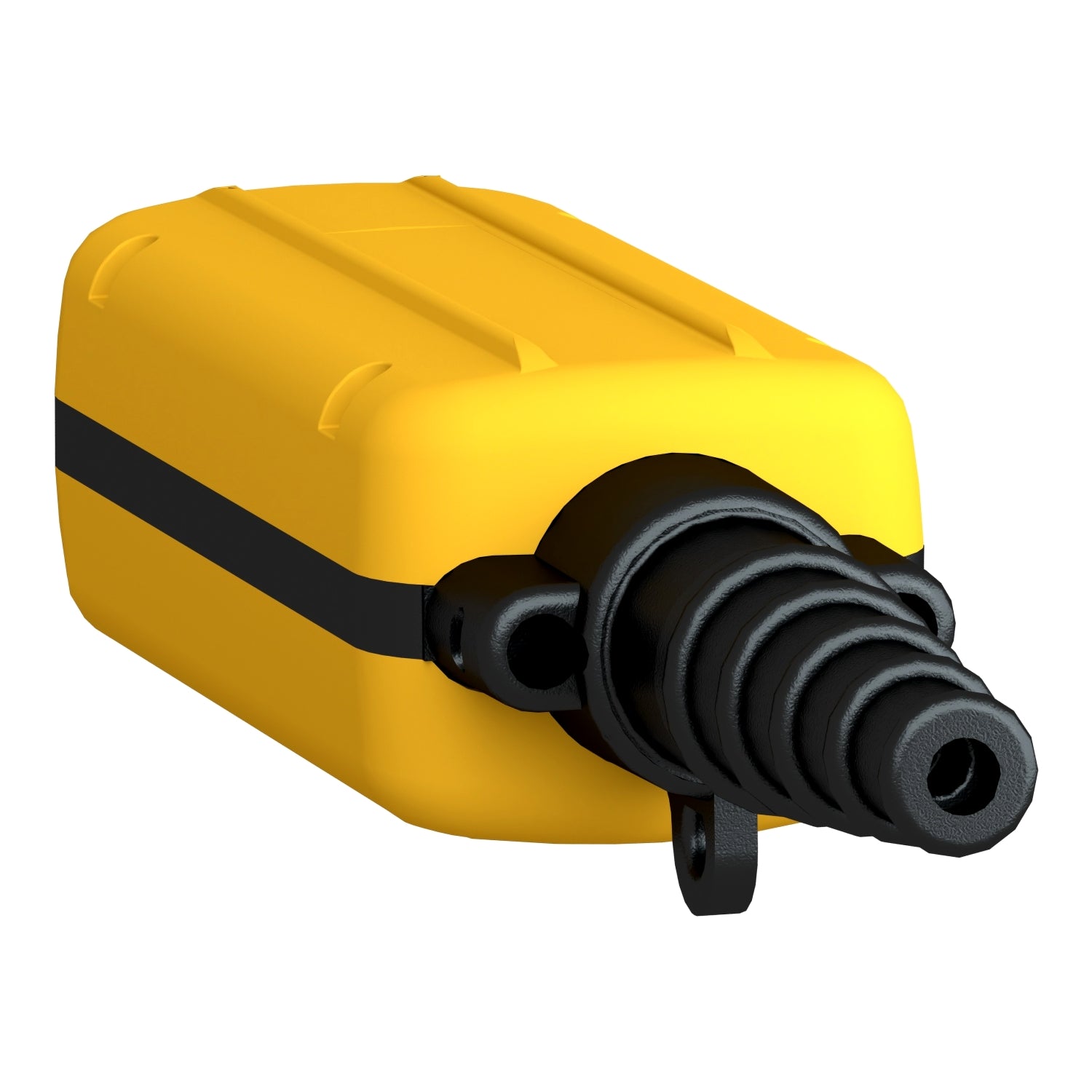

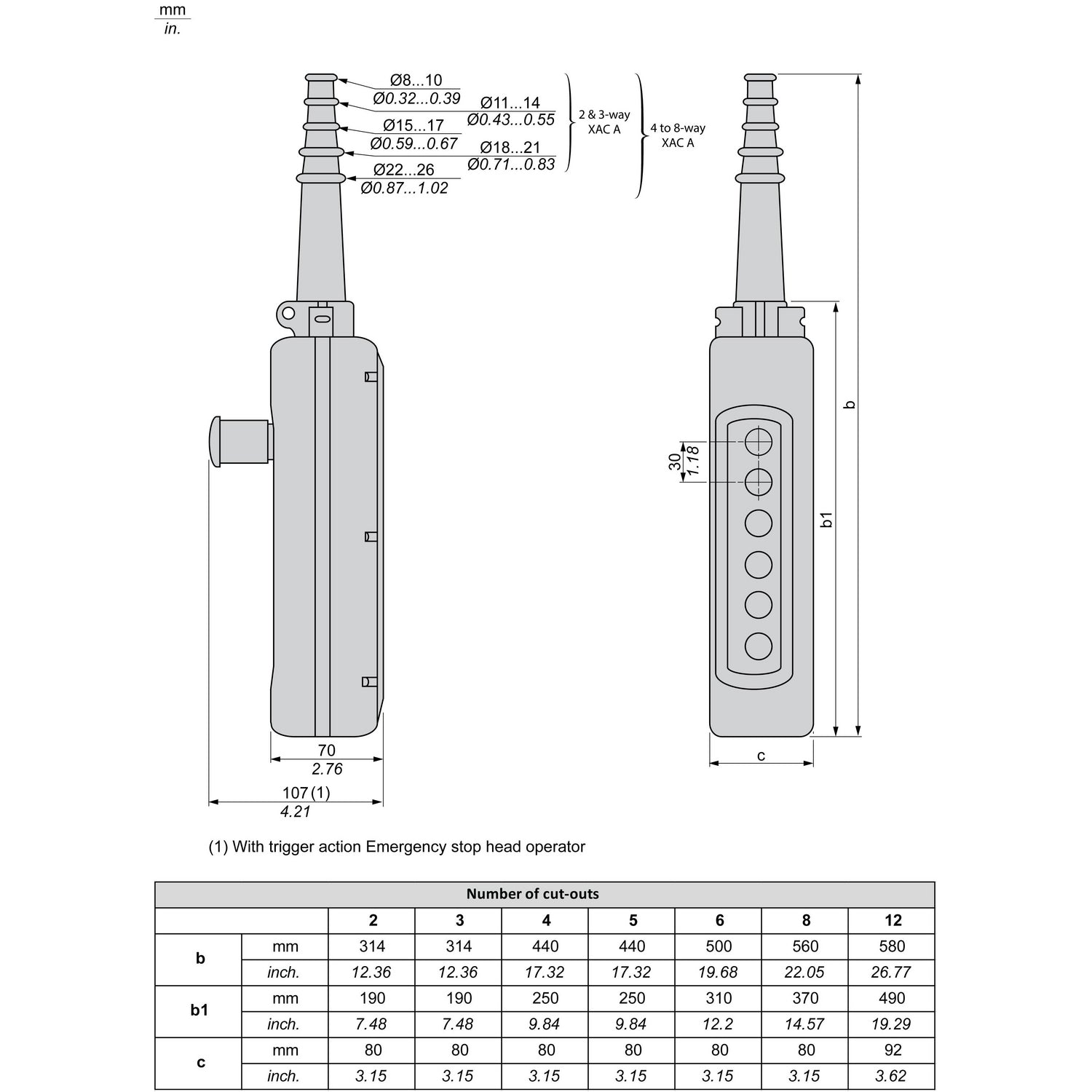

Cable entry: Rubber sleeve with stepped entry 8…26 mm
