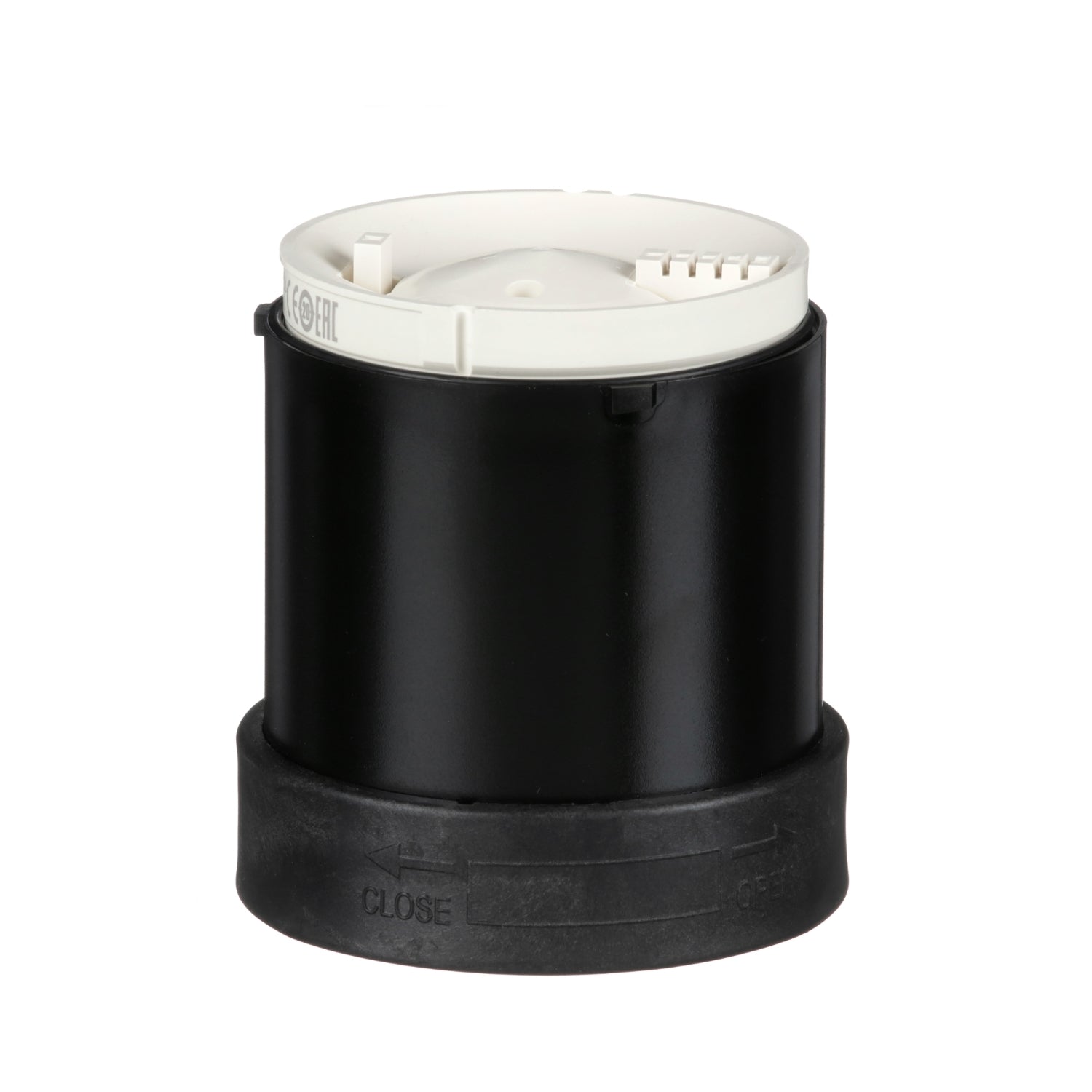

Schneider Electric XVBC9B Audible Unit for Modular Tower Lights
Schneider Electric XVBC9B Audible Unit for Modular Tower Lights
XVBC9B
Audible unit for modular tower lights, Harmony XVB, plastic, Ø70, buzzer, continuous or intermittent tone,70... 90 dB, 12...48 V AC/DC
This Harmony XVB audible buzzer unit is supplied with 12V to 48V AC/DC. This indicating bank buzzer is an accessory designed as an audible and signalling unit for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. 90 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Specifications
Specifications
Range of product: Harmony XVB Universal
Product or component type: Indicator bank
Beacon or indicator bank unit type: Audible unit
Mounting diameter: 70 mm
Component name: XVBC
Noise level: 70…90 dB at 1 m
[Us] rated supply voltage: 12...48 V AC/DC
Signalling type: Continuous or intermittent buzzer
Assembly style: Customer assembly, up to 5 units
Connections - terminals: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage: 250 V conforming to IEC 60947-1
Nominal voltage limit: 0.85...1.1 Un conforming to IEC 60947-5-1
Current consumption: < 15 mA
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1
Fundamental frequency: 2.8 kHz

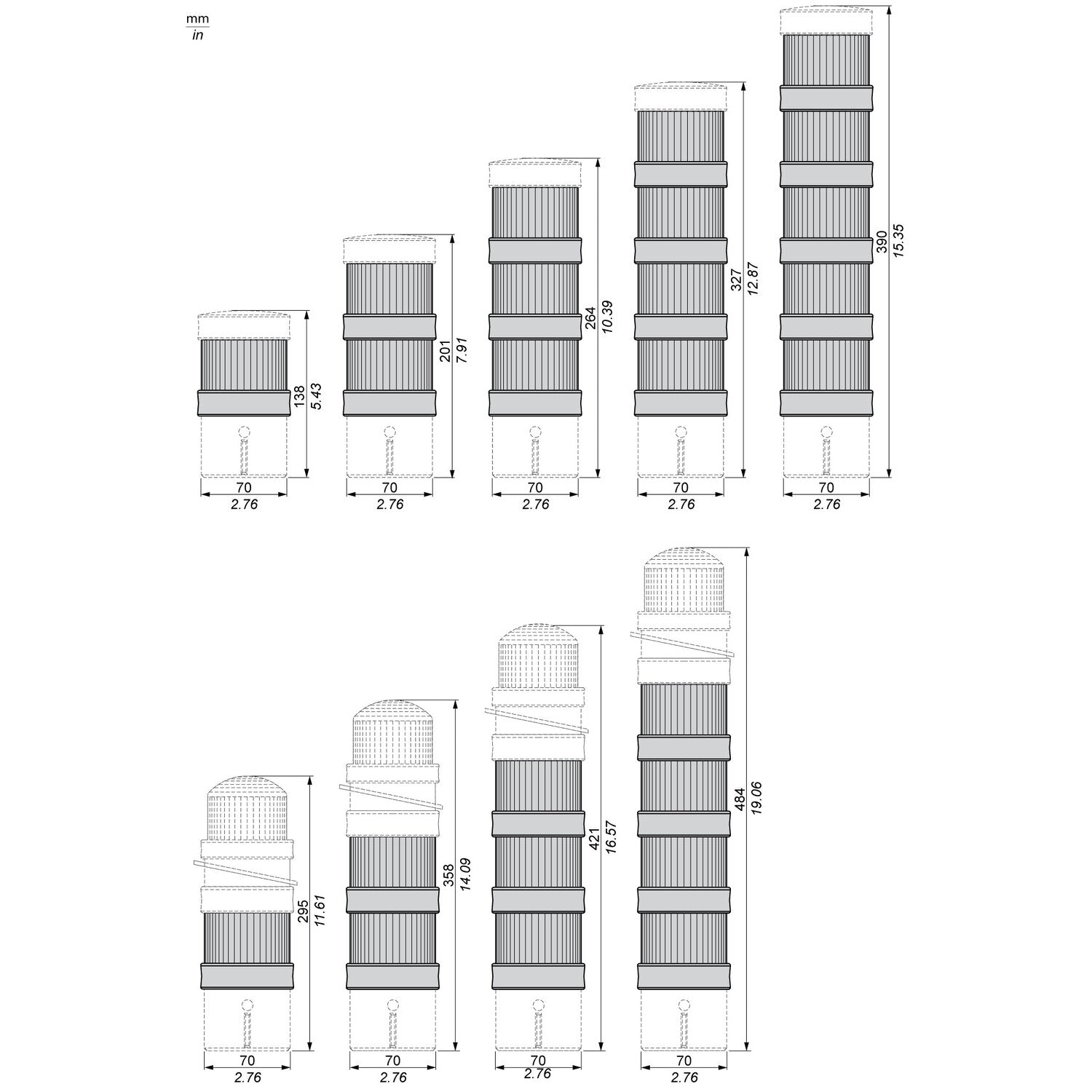

Dimensions
Dimensions

$270.00
