• Schneider Electric XVUC9S Audible Unit Schneider Electric - BNR Industrial Automation

Schneider Electric XVUC9S Audible Unit

Schneider Electric XVUC9S Audible Unit

Schneider Electric

$135.80
$135.80
Tax included.

XVUC9S

6 in stock

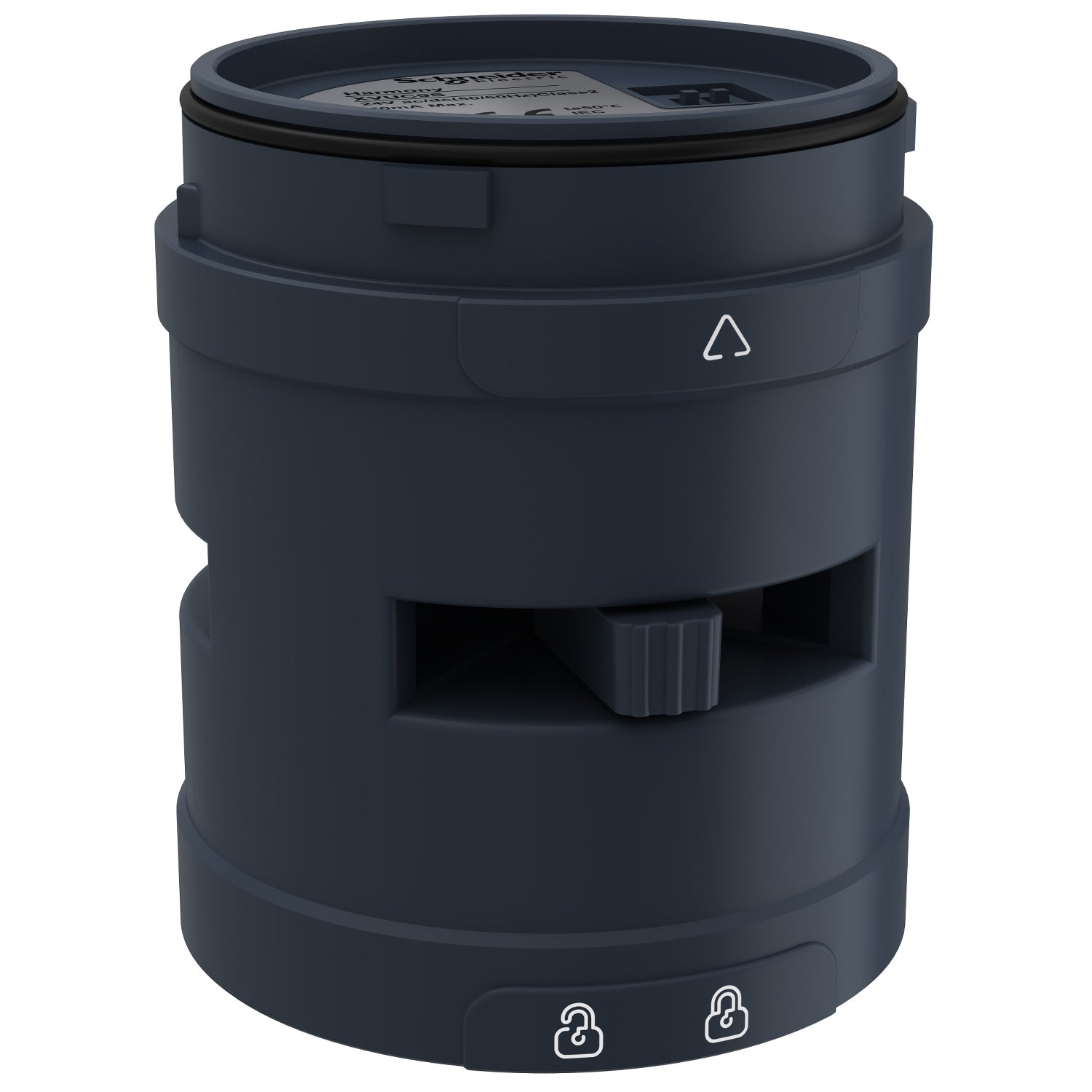

Audible unit, Harmony XVU, black, Ø60, buzzer, 24 V AC/DC

This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.

Specifications

Range of product: Harmony XVU
Product or component type: Modular tower light
Beacon or indicator bank unit type: Buzzer unit
Mounting diameter: 60 mm
Component name: XVU
Housing colour: Black
Signalling type: Continuous or intermittent buzzer
Material: PBT (polybutylene terephthalate) V-0 conforming to UL 94ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94PC (polycarbonate) V-0 conforming to UL 94
Localisation on device: Top
Assembly style: Customer assembly
[Us] rated supply voltage: 24 V AC/DC
Maximum power dissipation in W: 1.7 W
Acoustic level: 85 dB at 1 m
Sound frequency: 2635 Hz
Current consumption: <= 70 mA
Length: 58 mm
Product weight: 0.077 kg

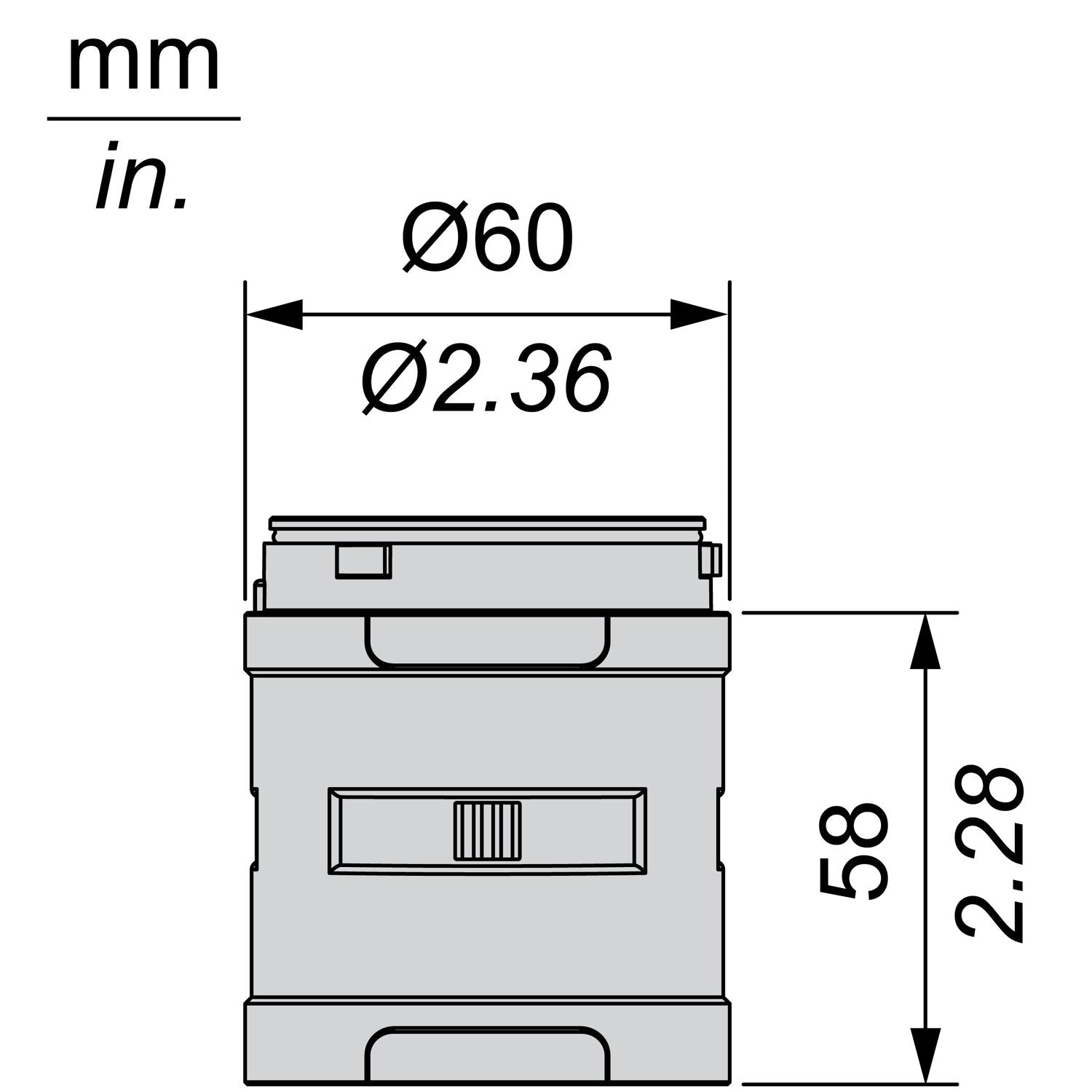

Dimensions

Schneider_20Electric_Harmony-XVU_XVUC9S Datasheet
