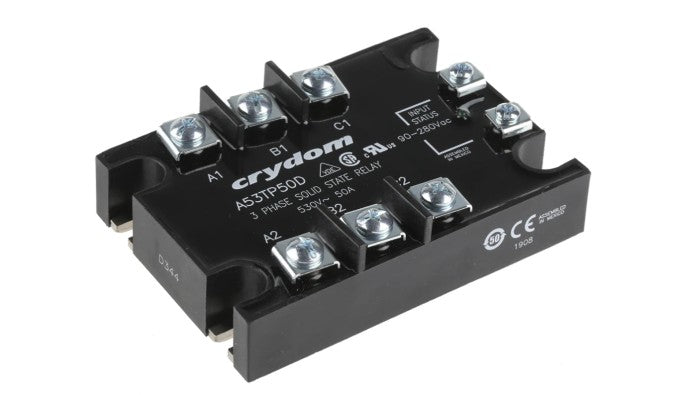

Sensata Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control - A53TP50D
$295.00 $435.00
| Brand | Sensata / Crydom |
| Maximum Load Current | 50 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 530 V rms |
| Minimum Load Voltage | 48 V ac |
| Maximum Control Voltage | 280 V rms |
| Minimum Control Voltage | 90 V rms |
| Switching Type | Zero Cross |
| Control Voltage Range | 90 → 280 V ac |
| Minimum Load Current | 0.05 A |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 50 ms |
| Series | 53TP |
| Load Voltage Range | 48 → 530V ac |
| Dimensions | 103.8 x 73.4 x 30mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Length | 103.8mm |
| Off State Leakage Current | 10 mA |
| Depth | 73.4mm |
| Capacitance | 8pF |
| Standards Met | CE, CSA, RoHS Compliant |
| Height | 30mm |
| Maximum Operating Temperature | +80°C |
