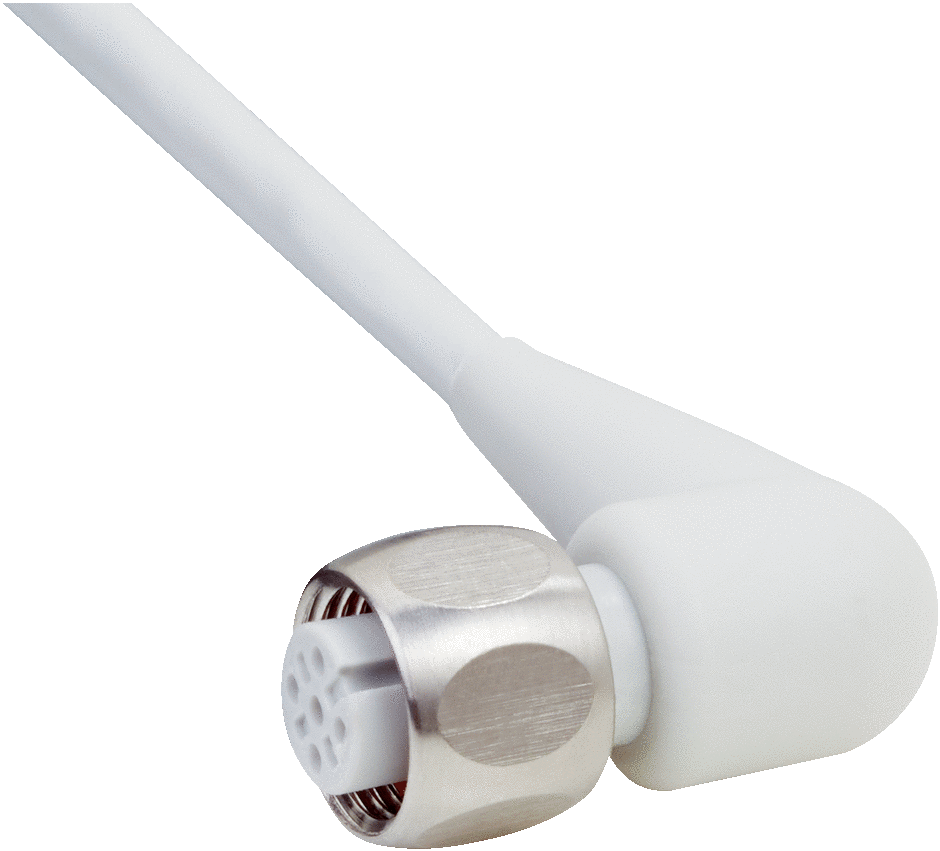

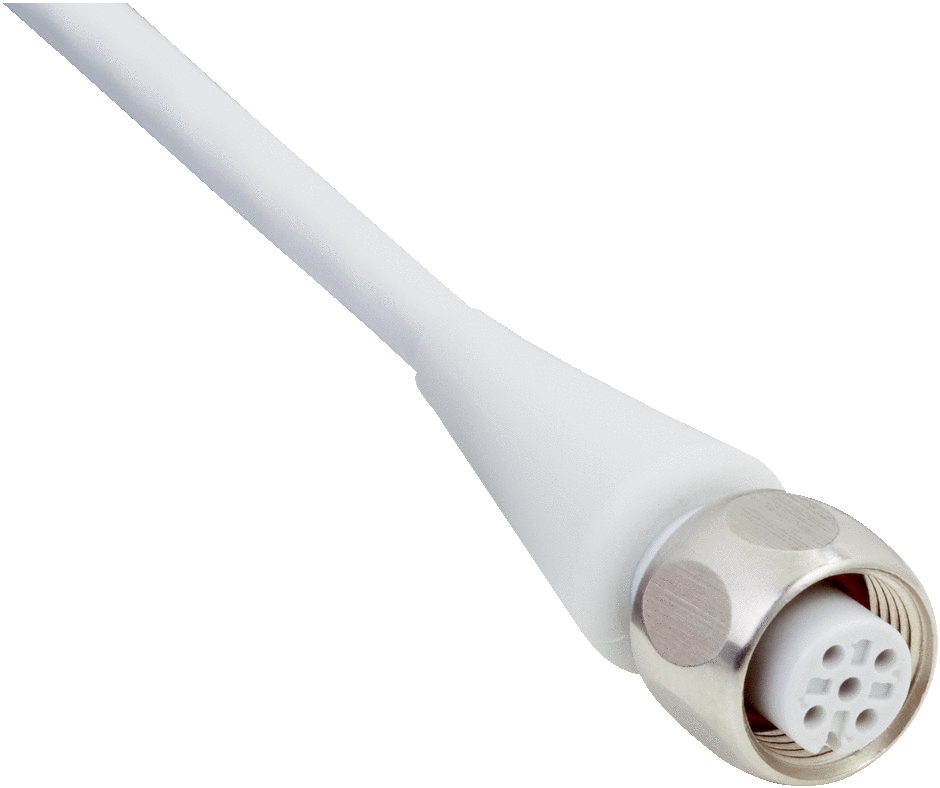

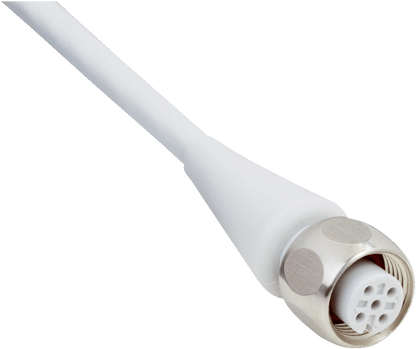

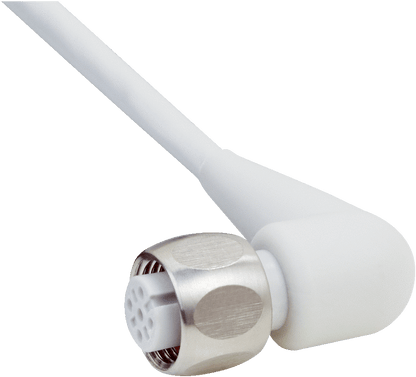

SICK M12 PP Sensor Lead Cable for Hygienic and Washdown Zones
$49.80
M12 PP Sensor Leads for Hygienic and Washdown Zones
As the connectors are used in cold stores and washdown zones, they must be highly resistant to chemical, thermal, and mechanical contamination. Complying with hygiene requirements is the highest priority. Using a suitable mounting tool ensures a watertight connection between the sensor and cable.
IP enclosure ratings IP69K for protection from the effects of high pressure cleaning and steam cleaning. The Ecolab certification also indicates that the cables for this zone are particularly resistant to aggressive acidic and alkaline cleaning agents. In addition, these cables have coupling nuts made of stainless steel (V4A).
PP cables
- Consistent use of FDA approved materials
- Hygienic design based on EHEDG recommendations. Designed with very smooth surfaces and no gaps to prevent dirt getting trapped.
- Very high temperature resistance: –40 °C ... +105 °C
- Suitable for drag chains
- Resistant to lactic acid, microbes and hydrolysis
Features
- Enclosure rating IP69K
- Ecolab certified
- Knurled nuts made of stainless steel (V4A)
- FDA conformity
- Resistance to lactic acid
- Hygienic design
- Torsionable ± 180°/m
- Weatherproof (resistant to ozone and UV)
- Halogen free
Benefits
- Durability and resistance to corrosion with the high quality cable material (PVC/PP) used
- High resistance to Ecolab-certified cleaning agents
- Resistance to the effects of high pressure cleaning and steam cleaning with protection classes IP67 and IP69K
- PP cables have a hygienic design which prevents trapping of dirt and is easy to clean
- Using a suitable mounting tool ensures a watertight connection between the sensor and cable
- Variants with 3 status display LEDs (Power, N/C, N/O)
Specifications
Cable material: PP
Cable jacket color: White
Enclosure rating: IP67, IP69K
Knurled nut material: Stainless steel (V4A/1.4404)
Temperature range:
–40 °C ... +105 °C for fixed installation
–25 °C ... +105°C for flexible use
Certifications: Ecolab, FDA
