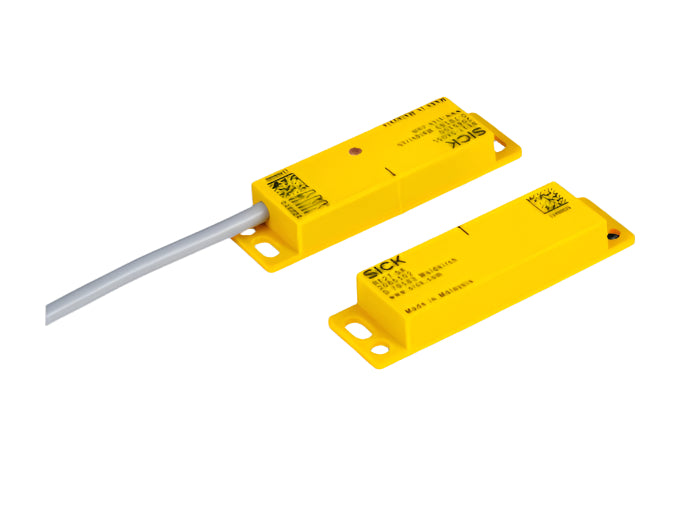

SICK Safety Switch RE27-SA05L - 1059510
SICK Safety Switch RE27-SA05L - 1059510
Regular price
$126.20
Sale price
$126.20
Regular price
Unit price
per
Tax included.
1059510
| System part | Sensor with actuator |
| Sensor principle | Magnetic |
| N/O contacts | 2 |
| N/C contacts | 0 |
| Signaling contacts | 1 |
| Safe switch on distance Sao | 9 mm |
| Safe switch off distance Sar | 20 mm |
| Active sensor surfaces | 1 |
| Actuation directions | 3 |
| Connection type | Cable |
| Length of cable | 5 m |
| Cable diameter | 5.8 mm |
| Conductor cross section | 0.25 mm² |
| Bend radius (with fixed installation) | > 12 x cable diameter |
| Bend radius (with moving cable) | > 15 x cable diameter |
| Cable material | PVC |
| Conductor material | Copper |
| Type of output | Reed contacts |
| Switching voltage | ≤ 30 V DC |
| Switching current |
≤ 100 mA ≤ 10 mA 1) |
| Design | Rectangular |
| Dimensions (W x H x D) | 25 mm x 88 mm x 13 mm |
| Weight | 0.3 kg |
| Housing material | VISTAL® |
