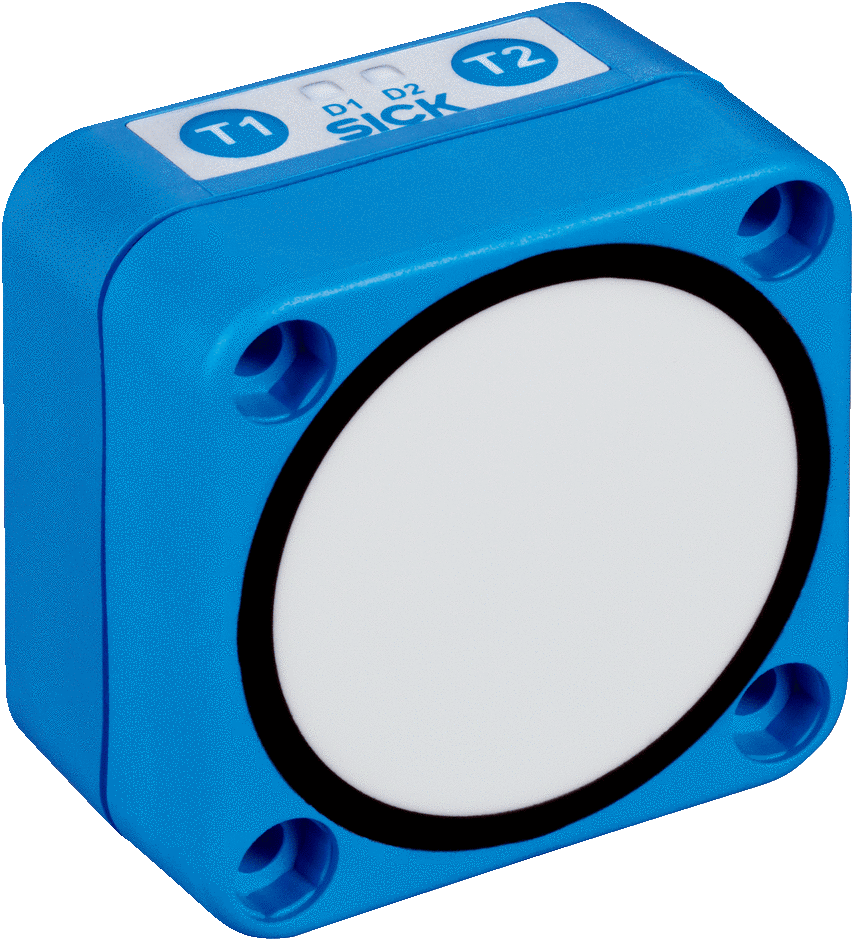

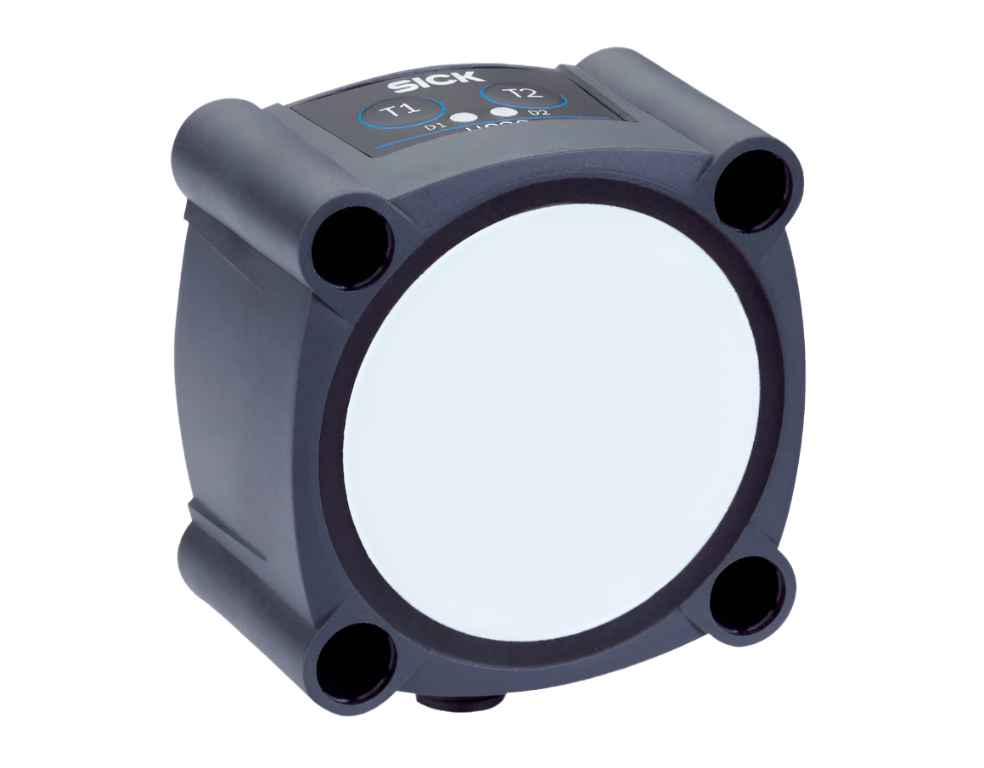

Rugged, compact ultrasonic sensor, great for vehicle detection applications

• Compact cubic housing for straightforward machine integration
• Rugged, plastic housing ensures highest plant availability
• Various output signals for solving complex applications available
• IO-Link with many diagnostic options for fault-free operation and simple maintenance
• Teach-in buttons for fast and easy commissioning
• Rugged ultrasonic technology, measures reliably even in dirty, dusty, humid, and foggy conditions
• Integrated temperature compensation ensures high measurement accuracy at all times for optimum process quality

• Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm
• Response time: 240 ms
• Digital output: 1 x push-pull: PNP/NPN
• Communication interface: IO-Link
• Communication Interface detail: IO-Link V1.0
• Sending axis: Straight
• Weight: 240 g
• Enclosure Rating: IP67
• Connection type: Male connector, M12, 5-pin

Wiring:

Brown: +9-30VDC

Black: Output (+9-30VDC)

Blue: -0VDC

Click Here for PDF Data Sheet
