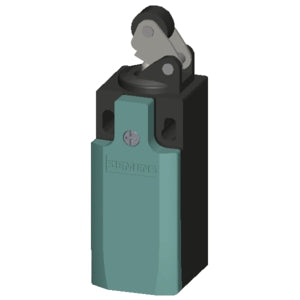

SIEMENS 3SE5 Series Roller Lever Interlock Switch, NO/NC, IP65, DPST, Plastic Housing, 400V ac Max - 3SE5232-0HE10
$120.00 $195.00
| Article Number (Market Facing Number) | 3SE5232-0HE10 |

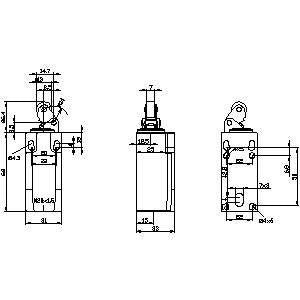

| Product Description | Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/1 NC quick action contacts integrated (not replaceable) Roller lever with plastic roller 13 mm |
| Product family | Enclosure width 31 mm acc. to EN 50047 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Insulation Voltage Rated Value | 400V |
| Protection Class IP | IP65 |
| Thermal Current | 10A |
| Surge Voltage Resistance Rated Value | 6kV |

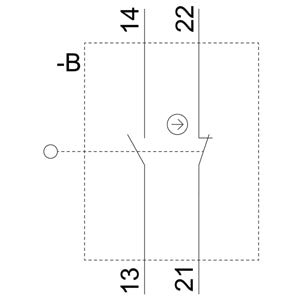

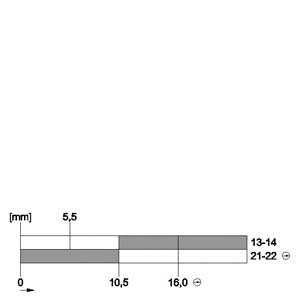

| Operation | 1NO / 1NC |
| Export Control Regulations | AL : N / ECCN : N |
| Net Weight (kg) | 0,081 Kg |
| Packaging Dimension | 45,00 x 42,00 x 97,00 |
| Package size unit of measure | MM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4011209694316 |
| UPC | Not available |
| Commodity Code | 85365080 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Product Group | 5317 |
| Group Code | R711 |
| Country of origin | Germany |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
