Siemens LOGO! DM8 24R Expansion Module 24V AC/DC 4 DI / 4 Relay Outputs – 6ED1055-1HB00-0BA2
Siemens LOGO! DM8 24R Expansion Module 24V AC/DC 4 DI / 4 Relay Outputs – 6ED1055-1HB00-0BA2
Regular price
$195.00
Sale price
$195.00
Regular price
$265.00
Unit price
per
Tax included.
6ED1055-1HB00-0BA2
21 in stock

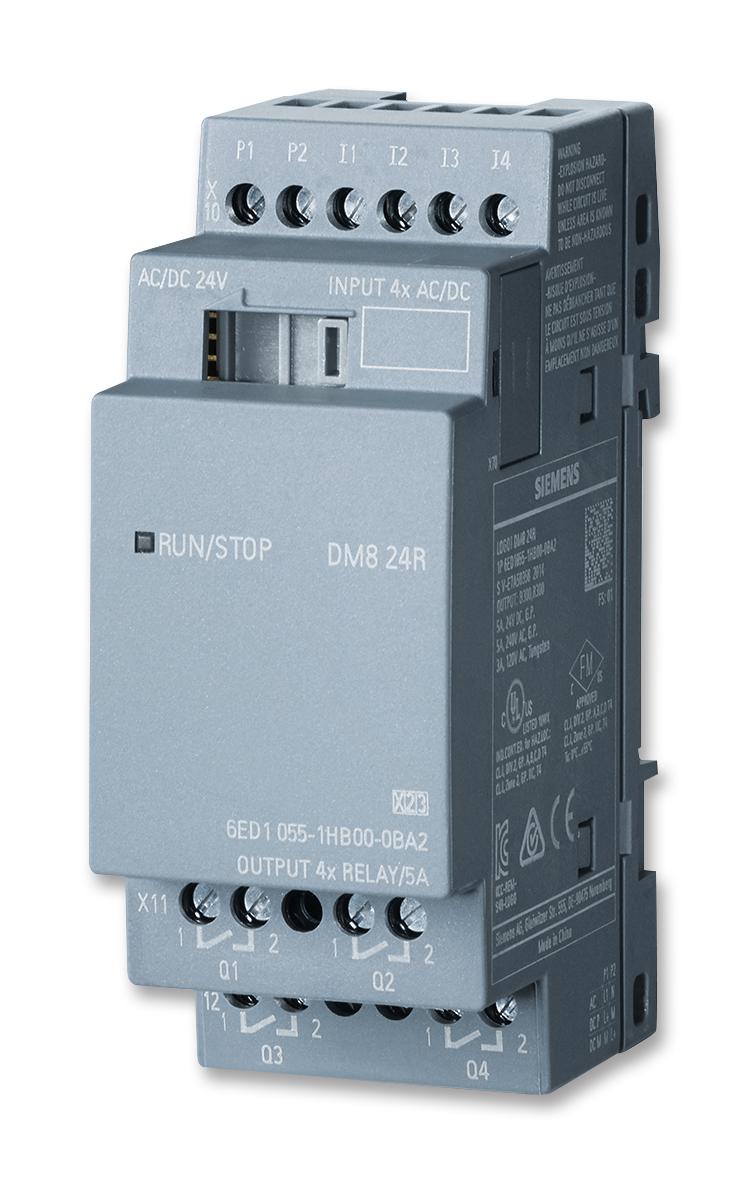

The Siemens LOGO! DM8 24R is a digital input/output expansion module for the LOGO! 8 family of logic modules. It adds four digital inputs and four relay outputs in a compact two-module-wide housing, and accepts either a 24 V DC or 24 V AC supply—useful where the control supply isn't fixed. Relay outputs switch up to 5 A resistive, so loads such as contactors, solenoids and lamps can be driven directly without interposing relays.
Key features
- 4 digital inputs, AC/DC compatible (also suitable for NPN sensors)
- 4 relay outputs rated 5 A resistive / 3 A inductive
- Dual 24 V DC or 24 V AC supply
- Only 35.5 mm wide (2 module widths) on 35 mm DIN rail
- Screw terminals for straightforward field wiring
- Suits LOGO! 8, 8.1, 8.2 and 8.3 base modules
Technical specifications
| Siemens order number | 6ED1055-1HB00-0BA2 |
| Product designation | LOGO! DM8 24R |
| Type | Digital expansion module |
| Supply voltage | 24 V DC (20.4–28.8 V) / 24 V AC (20.4–26.4 V, 47–63 Hz) |
| Digital inputs | 4, AC/DC — signal 0 < 5 V, signal 1 > 12 V |
| Input current | approx. 2.63 mA at signal 1 |
| Outputs | 4 relay (volt-free) |
| Output rating | 5 A resistive, 3 A inductive, lamp load max. 1000 W |
| Minimum load current | 100 mA |
| Switching voltage | up to 265 V AC/DC |
| Dimensions (W × H × D) | 35.5 × 90 × 58 mm (2 module widths) |
| Mounting | 35 mm DIN rail |
| Degree of protection | IP20 |
| Ambient temperature | 0 to +55 °C (–20 °C from version ES03) |
| Standards | Developed in accordance with IEC 61131 |
| Approvals | CE, UL, CSA, FM, marine |
Please note
- Ambient operating temperature 0 to +55 °C; –20 to +55 °C from product version ES03 and higher.
- The -0BA2 suffix denotes a LOGO! 8 generation expansion module. It is not interchangeable with -0BA1 or -0BA0 modules intended for the older LOGO! 0BA6 / 0BA7 generations.
