E2S SONF1 Sounder

E2S

Colour

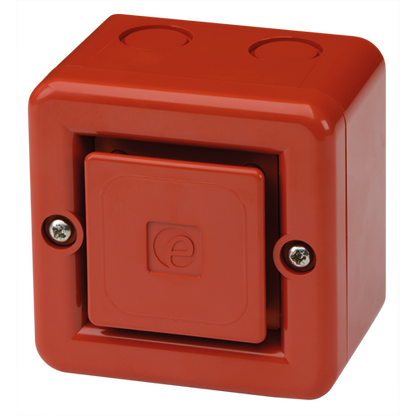

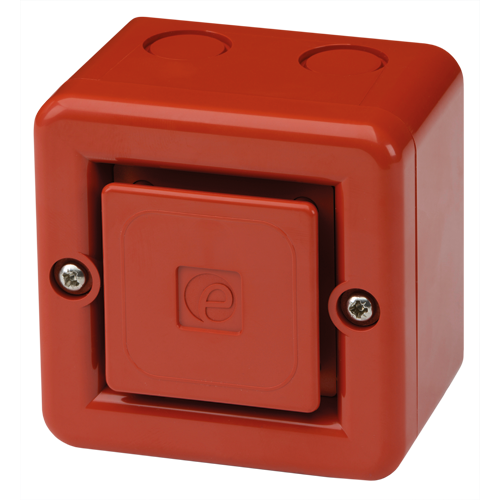

Red

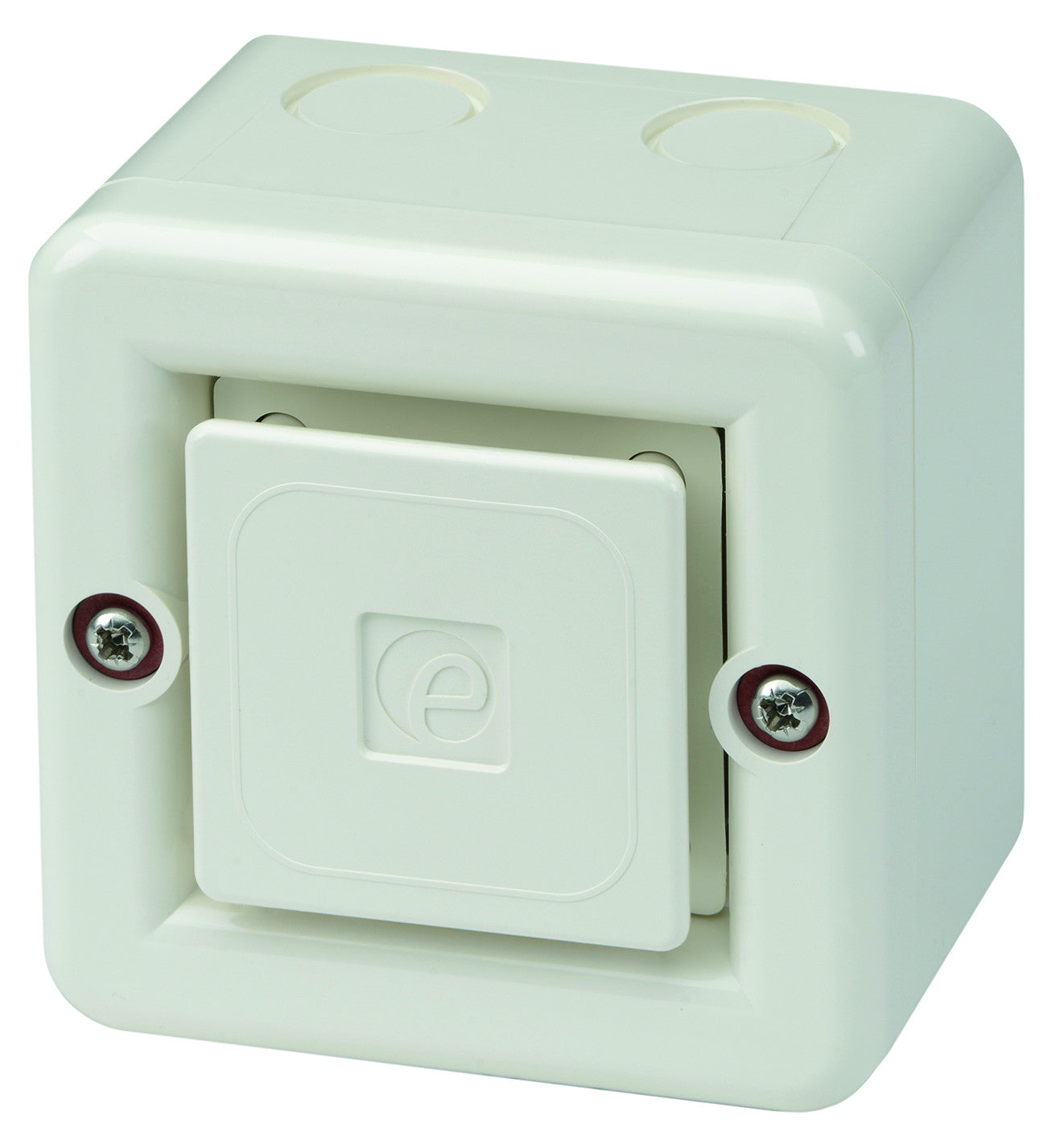

White
Voltage

The SONF1 is a compact, high output, 100dB(A) alarm sounder.

Low current consumption and high SPL in a robust fire retardant housing ensure the SONF1 is suitable for all general signalling applications including fire, security and process control.

Features

  • Electronic sounder up to 100dB
  • 10 tones (includes ISO tones to Australian Standards)
  • Automatic synchronization on multi-sounder systems*
  • Volume control
  • Two stage alarm (DC voltage only) by reversing polarity
  • Available in red or white
  • Volume control
  • IP66

Specifications

Sound output: 100dB @ 1m

Sound frequency: 10 tones

Protection: IP66

Temp rating (°C): -25 to +55

Cable entry: 4 x M20 knockouts

Rating: Continuous

Construction: Flame Retardant ABS

Weight: 0.3kg

Dimensions: 86 x 86 x 64mm



For more information, please click here

Approvals

  • VdS approved:
    EN54-3 (CPD 89/106/EEC).
  • UL & cULs approved:
    General signalling use.
  • GOST-R approved. Cert:
    POCC GB.JB05.H00144.
