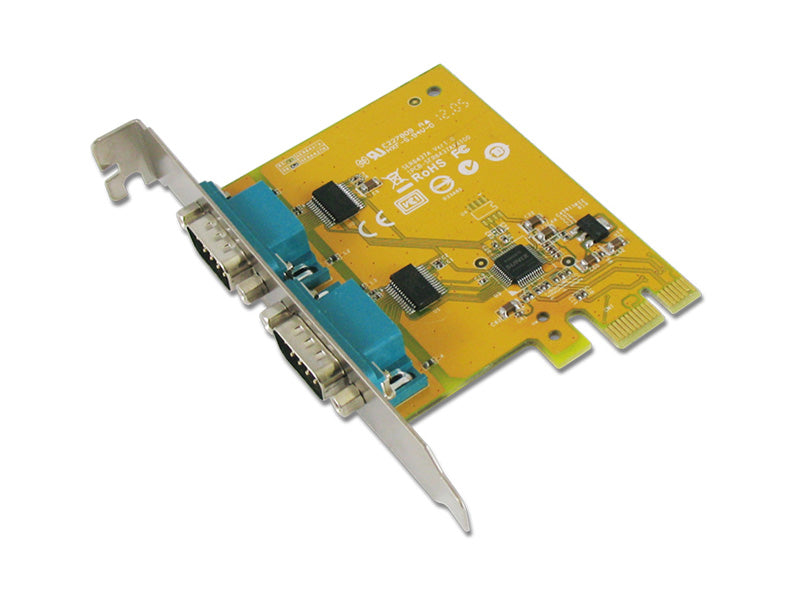

SUNIX SER6437A 2-Port RS-232 PCI Express Serial Card

The SUNIX SER6437A is a 2-port RS-232 serial card that adds two independent DB9 COM ports to any PC with a spare PCI Express slot. Most modern motherboards ship with one serial port or none at all, so this card is a simple way to keep PLCs, HMIs, barcode scanners, scales, modems and other legacy serial devices talking to a new PC or industrial computer.

Built around SUNIX's own SUN2212 PuLao native PCIe UART controller, the card has a 128-byte hardware FIFO and on-chip automatic hardware flow control to prevent data loss. It meets PCI Express Base Specification 2.0 and, as an x1 card, fits x1, x2, x4, x8 or x16 slots. Every serial signal carries ±15 kV ESD protection to IEC 61000-4-2, and I/O address and IRQ are assigned automatically by the BIOS for true plug-and-play installation.

Driver support is broad: WHQL-certified drivers for Windows XP through Windows 11 and Windows Server 2003 through 2022, plus Linux kernel 2.x to 6.x and DOS.

Key features

• 2 independent RS-232 ports, DB9 male
• Baud rates from 50 bps up to 115.2 kbps
• SUNIX SUN2212 PuLao native PCIe UART controller
• 128-byte hardware FIFO with automatic hardware flow control
• PCI Express 2.0, x1 card — fits x1/x2/x4/x8/x16 slots
• ±15 kV ESD protection on all serial signals (IEC 61000-4-2)
• Plug-and-play — I/O address and IRQ assigned by BIOS
• Windows (WHQL), Linux and DOS drivers

Specifications

• Interface: RS-232, 2 ports
• Bus: PCI Express 2.0, single lane (x1)
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Data: stop bits 1/1.5/2; parity even/odd/none/mark/space
• Flow control: none, Xon/Xoff, RTS/CTS
• ESD: ±15 kV HBM, ±15 kV air gap, ±8 kV contact
• Operating temperature: 0 to 60 °C; humidity 5–95% RH
• Storage temperature: −20 to 85 °C
• PCB size: 65 x 88 mm; standard 121 mm full-height bracket, 1 slot
• Approvals: CE, FCC, VCCI, BSMI, RoHS, Microsoft WHQL
• OS support: Windows XP/Vista/7/8.x/10/11 (32/64-bit), Windows Server 2003–2022, Windows Embedded/POSReady, Linux 2.x–6.x, DOS

Typical applications

• Connecting PLCs, HMIs and drives to new PCs for programming and monitoring
• POS and kiosk peripherals — receipt printers, scales, scanners, pole displays
• Industrial and embedded PCs needing extra COM ports
• Replacing failed or missing onboard serial ports

Ships with a standard full-height bracket. Drivers are available from the SUNIX website.
