SUNIX SER6437AL 2-Port RS-232 Low Profile PCI Express Serial Card

The SUNIX SER6437AL is the low-profile version of SUNIX's 2-port RS-232 PCI Express serial card. It adds two independent COM ports to slim, small-form-factor and compact industrial PCs. Most modern motherboards ship with one serial port or none, so this card keeps PLCs, HMIs, scanners, scales, modems and other legacy serial devices connected to new hardware that only has room for low-profile cards.

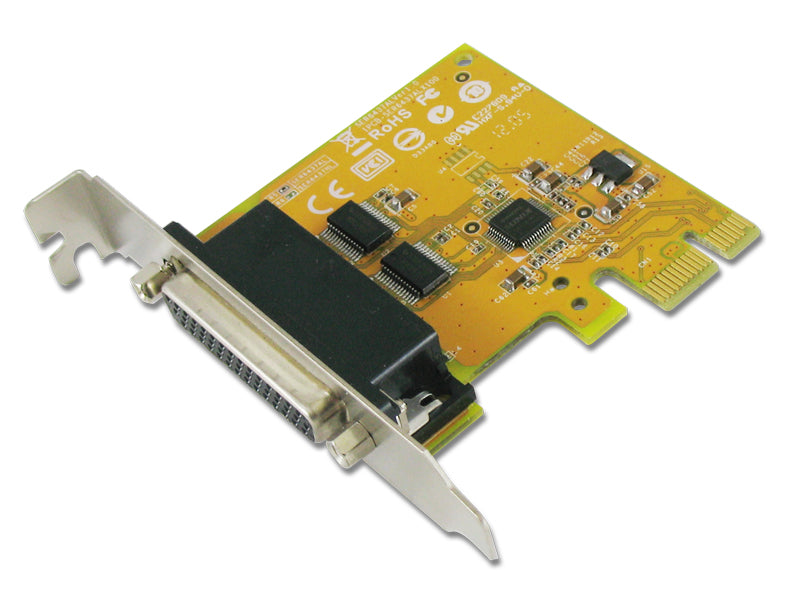

The low-profile bracket can't fit two DB9 connectors, so the card uses a single DB44 female connector. A 40 cm breakout cable included in the box splits it into two standard DB9 male serial ports. The card is built around the SUNIX SUN2212 native PCIe UART controller, with a 128-byte hardware FIFO and on-chip automatic hardware flow control to prevent data loss. It meets PCI Express Base Specification 2.0 and, as an x1 card, fits x1, x2, x4, x8 or x16 slots. All serial signals have ±15 kV ESD protection to IEC 61000-4-2.

WHQL-certified drivers cover Windows XP through Windows 11 and Windows Server 2003 through 2022, and drivers are also available for Linux kernel 2.x to 6.x and DOS.

Key features

• 2 independent RS-232 ports via the included DB44 to 2 x DB9 male cable
• Low-profile 80 mm bracket for slim and small-form-factor PCs
• Baud rates from 50 bps up to 115.2 kbps
• SUNIX SUN2212 native PCIe UART controller
• 128-byte hardware FIFO with automatic hardware flow control
• PCI Express 2.0, x1 card — fits x1/x2/x4/x8/x16 slots
• ±15 kV ESD protection on all serial signals (IEC 61000-4-2)
• Plug-and-play — I/O address and IRQ assigned by BIOS
• Windows (WHQL), Linux and DOS drivers

Specifications

• Interface: RS-232, 2 ports
• Bus: PCI Express 2.0, single lane (x1)
• Card connector: DB44 female (breaks out to 2 x DB9 male)
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Data: stop bits 1/1.5/2; parity even/odd/none/mark/space
• Flow control: none, Xon/Xoff, RTS/CTS
• ESD: ±15 kV HBM, ±15 kV air gap, ±8 kV contact
• Operating temperature: 0 to 60 °C; humidity 5–95% RH
• Storage temperature: −20 to 85 °C
• PCB size: 65 x 68 mm; low-profile 80 mm bracket, 1 slot
• Approvals: CE, FCC, VCCI, BSMI, RoHS, Microsoft WHQL
• OS support: Windows XP/Vista/7/8.x/10/11 (32/64-bit), Windows Server 2003–2022, Windows Embedded/POSReady, Linux 2.x–6.x, DOS

In the box

• SER6437AL card with low-profile bracket
• DB44 to 2-port DB9 male cable, 40 cm (SUNIX 1WDB-44M04009D2000)

Typical applications

• Adding COM ports to slim desktop, SFF and mini-tower PCs
• POS and kiosk systems — receipt printers, scales, scanners, pole displays
• Connecting PLCs, HMIs and drives to compact industrial PCs
• Replacing failed or missing onboard serial ports

Low-profile bracket only. For full-height slots, see the SER6437A. Drivers are available from the SUNIX website.
