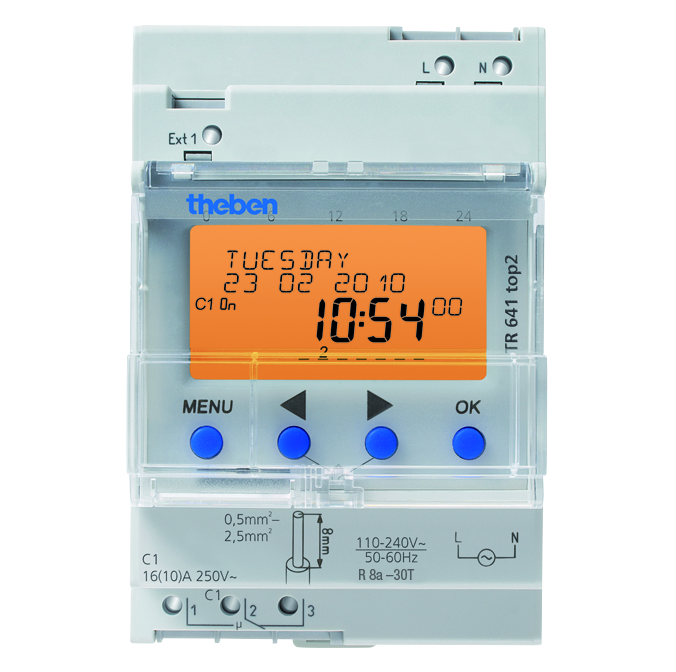

theben TR 641 top2 Digital time switch with yearly and astronomical time, Pulse, Cycle program - 6410100

theben

Made in Germany

Function Description

  • Digital time switch with yearly and astronomical time program
  • 1 channel
  • External input
  • Connectable sensors (external selector switch, sequence timer)
  • Connectable switches (ON or OFF permanent switching)
  • DuoFix spring terminals
  • For 2 conductors each
  • Wire or strand (with or without wire end sleeve)
  • Wire diameter: 0.5 - 2.5 mm²
  • Button for releasing plug-in connection
  • Text-oriented user guidance in display
  • Preset date and time
  • fully operable without mains connection
  • 800 memory locations
  • Interface for OBELISK top2 memory card (PC programming)
  • 2. insertable switching program
  • Copying programs
  • Storing programs
  • 8 year power reserve (lithium battery)
  • Zero-cross switching for leay-saving switching and high lamp loads (not with 24 V devices)
  • Automatic summer/winter time changeover
  • can be deactivated
  • Date rule options are already stored for Europe, the USA and other countries
  • own date rule options or changeover around set dates are available
  • ON-OFF switching times
  • Pulse program
  • Cycle program
  • Extensive yearly clock functions
  • Basic weekly program and 14 different weekly programs with priority levels and date ranges
  • Permanent ON / permanent OFF with highest priority via date range program option
  • fixed and variable public holidays, public holidays dependent on Easter, day and date ranges with serial pattern
  • Public holiday database for Germany including all Federal states, Switzerland, France etc.
  • Program simulation on clock display
  • Graphic program simulation with 12 month overview for all channels on PC
  • Astronomical time switch function (automatic calculation of sunrise and sunset times for the whole year)
  • Offset for adjusting of sunrise and sunset times
  • Position data via coordinates or country/city lists can be programmed
  • Optional production of own city list (favourites) and a table with own astronomical times on PC
  • Fixed ON-OFF switching times can be programmed (e.g. night time interruption)
  • Simulation of astronomical switching times (calculated astronomical times and programmed ON/OFF switching times) for the whole year
  • various astronomical setting options (evening ON - mornings OFF or evenings OFF - mornings ON, astronomical pulse)
  • Switching pre selection
  • Permanent switching ON/OFF
  • Count-down timer
  • Integrated operating hour counter
  • Reset option
  • Service function for monitoring maintenance intervals
  • Holiday program
  • 2 random programs
  • Display back light (can be turned off)
  • PIN coding
