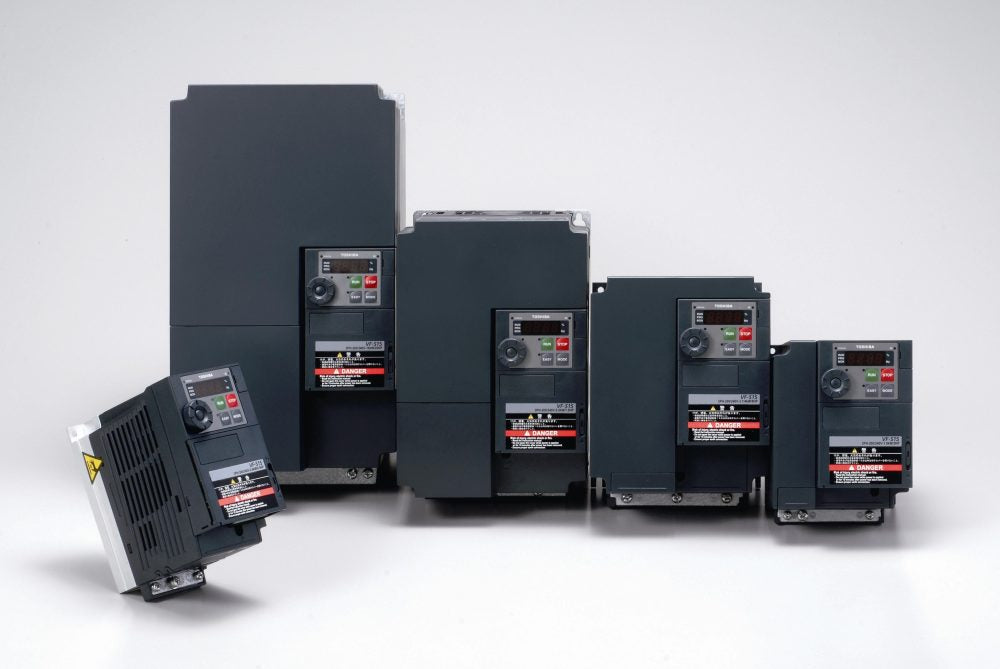

Toshiba VF-S15 Series VSD Drives

Toshiba

Motor Output

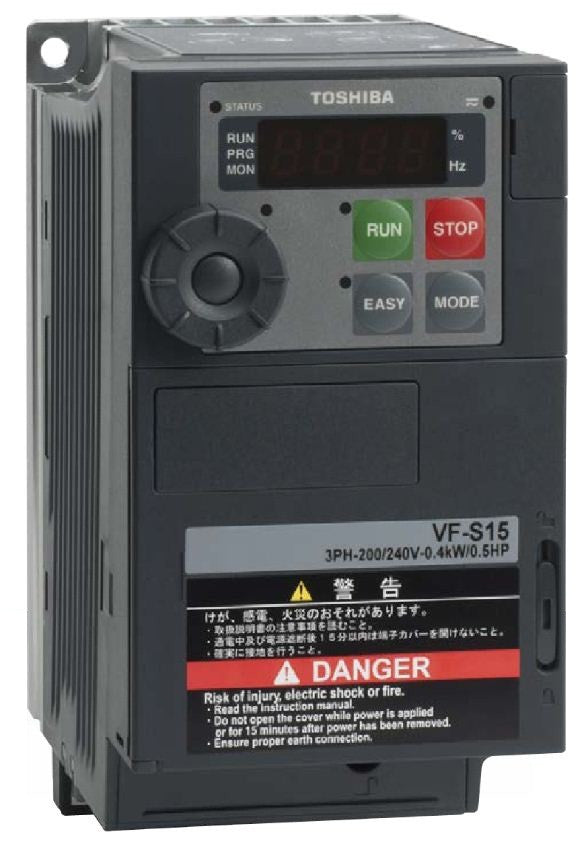

VF-S15 is a compact TOSHIBA drive designed for powerful performance in wide ranging applications. It is a sensorless vector control drive providing high torque throughout the speed range.

Available in two types - 1Ph, 240V input (0.4-2.2kW) and 3Ph, 415V input (0.75-15kW), VF-S15 drives are universally accepted for most industrial applications.

  • General Purpose VSD

  • Range: 1) 0.75kW-2.2kW, 1Ph 240V Input; 3Ph 0-240V output 2) 0.75kw-15kW, 3Ph, 415V Input; 3Ph 0-415V output

  • Built-in RFI Filter

  • Sensorless Vector Control provides up to 200% torque at low speeds.

  • Built-in PID Control

  • Extensive Diagnostic Tool

  • Easy to Set-up and Operate

  • Multi-function Programmable Inputs/Outputs

  • C-Tick, CE, UL approved

  • RS485, Comms Compatible, Profibus, DeviceNet, CC-Link, CAN Open & EtherNet options

Features

  • Sensorless Vector Control Drive

  • Ultra-Compact size

  • Safe Power removal (EN954-1 category 3, AS/IEC61800-5-2 SIL2)

  • Built-in RFI filter

  • Suitable for >50°C Ambient Temperature

  • Easy to set and operate

  • Profibus, DeviceNet, CC-Link, CAN Open & EtherNet options

  • My function

  • Remote control key-pad option

  • CE, UL and C-Tick compliant
