TP-LINK TL-POE10R PoE Splitter

TP-LINK TL-POE10R PoE Splitter

TP-LINK

$12.00
$12.00 $20.00
Tax included.

TL-POE10R

1 in stock

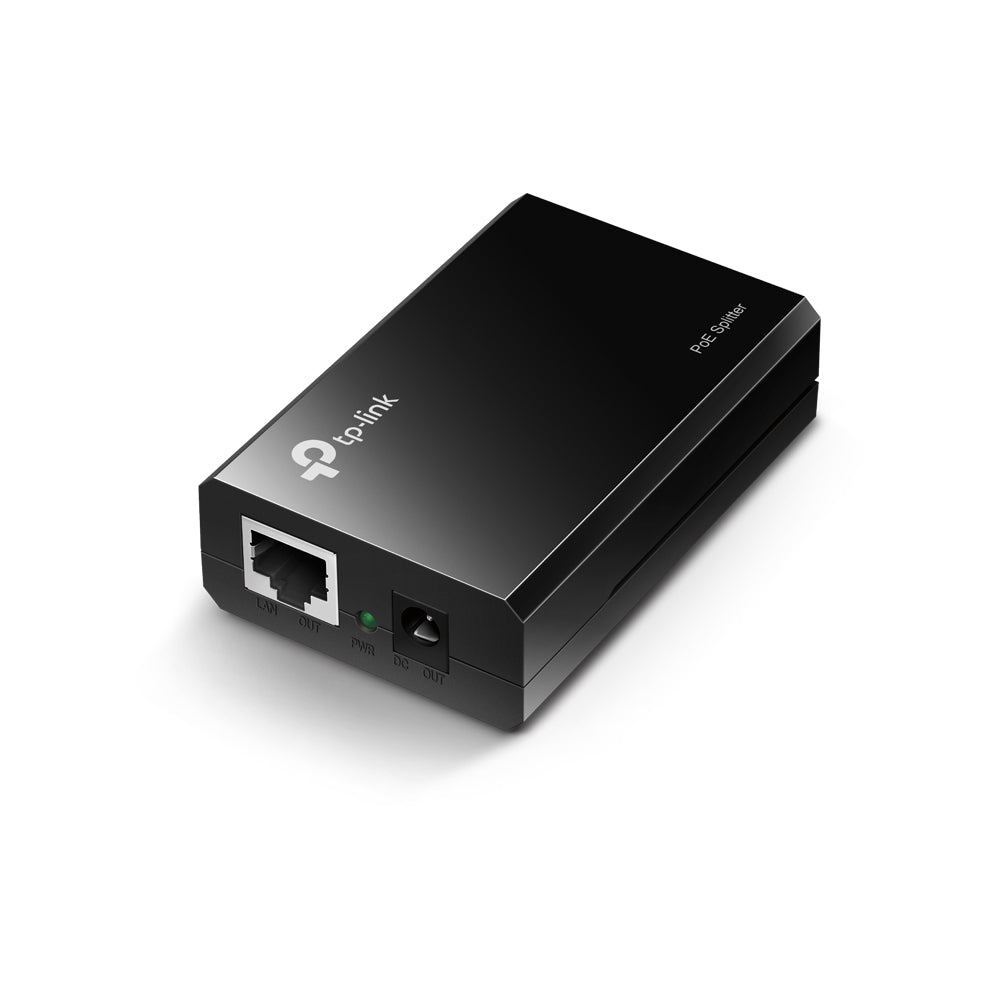

TL-POE10R PoE Splitter

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SG3424P, TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specifications

Interface: 2 10/100/1000Mbps RJ45 PortAUTO Negotiation/AUTO MDI/MDIX1 POWER OUTPUT PORT
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply: 12VDC 1A, 9VDC 1A, 5VDC 2A
Basic Function: Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator: PWR
Dimensions: ( W x D x H )3.2*2.1*0.9 in.(80.8*54*24 mm)
Basic Function: Compatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Supply
Certification: FCC, CE, RoHS
Package Contents: PoE Splitter, TL-POE10R, Power Cord, RJ45 Cable, Installation Guide
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
