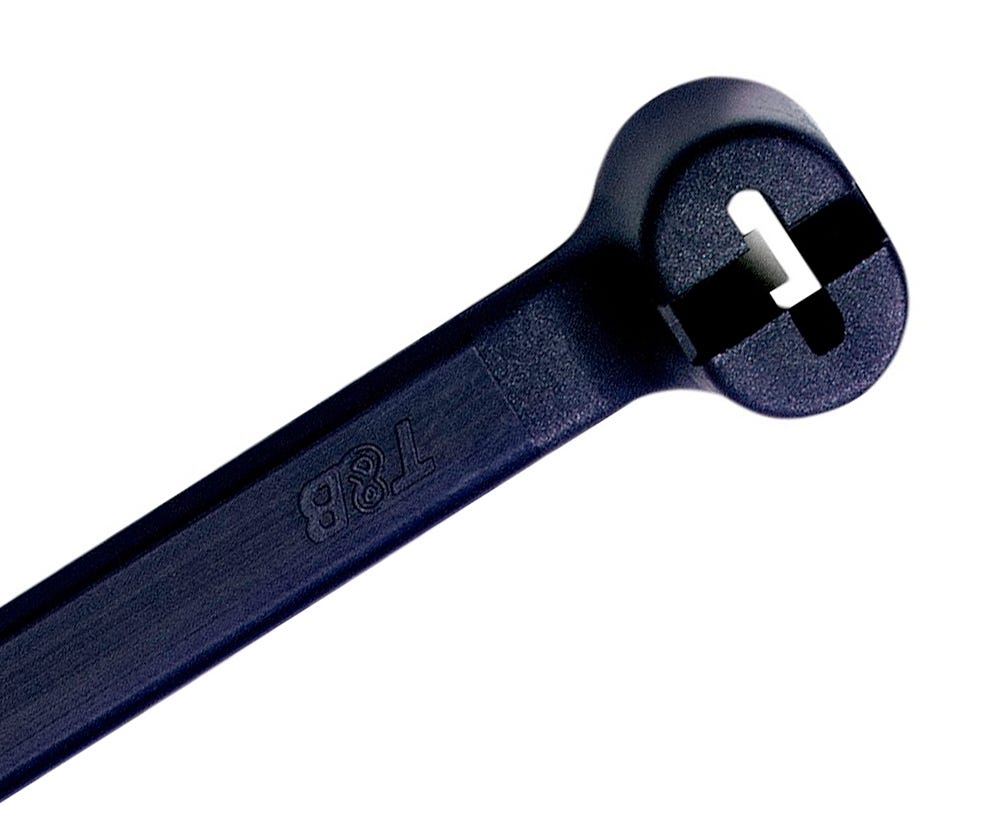

Ty-Rap® TY5232MX PA 6.6 Cable Tie 80N 203X2.3mm Uv - 100 Pack

Thomas & Betts

Ty-Rap® high performance cable ties

Polyamide 6.6 cable ties – UV-resistant black

Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (221 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 202mm (8.0 Inches), Width of 2.3mm (0.09 Inches), Thickness of 1.1mm (0.04 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), 100 Pack

  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.


  • UV-resistant
  • Recommended for outdoor applications
  • Several lengths and 6 typical widths with a tensile strength up to 780N, to cover the most demanding applications

Technical information

  • Material - Molding: Polyamide 6.6
  • Material - Locking barb: 316 grade stainless steel
  • Temperature range: -60°C to +105°C (-76°F to 221°F)
  • Min. Installation Temp.: -30°C (-22°F)
  • Color: Black Flammability rating: UL 94 V-2
  • Other properties: UV-resistant, Halogen free, Silicone free
