WAGO 222 Series Classic Splicing Connector Terminal Block with Operating Levers

WAGO

Conductors

222 Series Classic Splicing Connector Terminal Block with Operating Levers

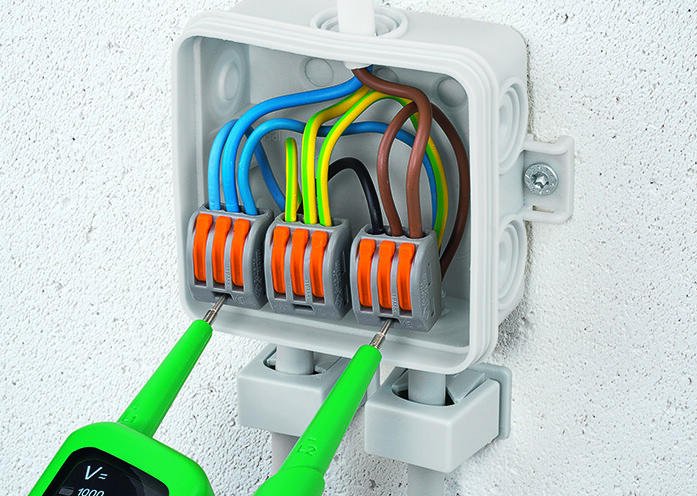

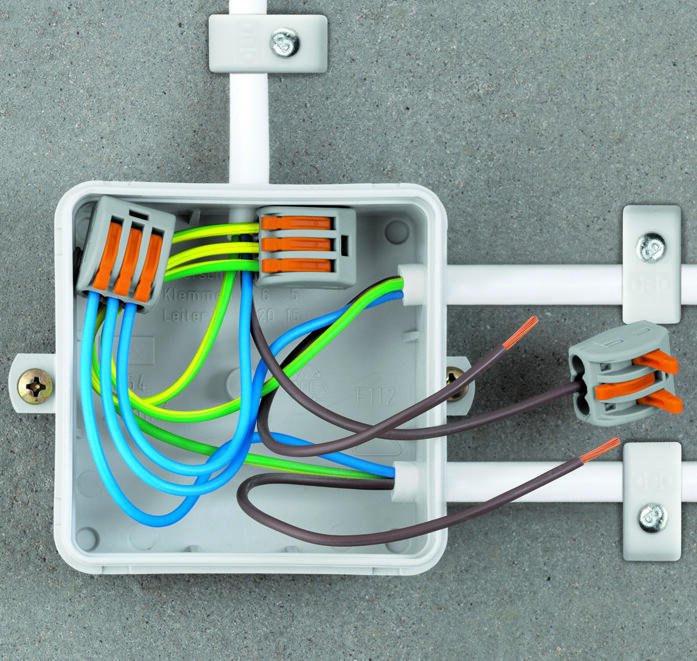

Whether in a junction box or distribution box, WAGO's installation terminal blocks and connectors offer you the right product for every installation job.

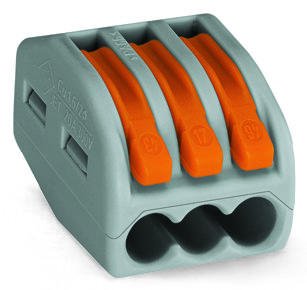

The 222 series Wago connectors offer a tool free and compact solution for connecting assembled terminal blocks. The connection of up to three stripped fine stranded conductors up to 2.5 mm². The integrated orange lever acts as a sturdy clamp when in the rest position, preventing a connected conductor accidentally become loose or damaged, making them a really handy for free wiring.

  • 9 mm to 10 mm stripped length
  • Side entry wiring of up to 3 connection points
  • 20A Current Rating, 600 V measured voltage
  • Cutting guide underneath for stripping off insulation on wires.
  • 2.5 mm² max cross section
