Weidmüller JPP PNP NPN 24VDC JACKPAC Level Converter - 8857030000
$110.00 $160.00

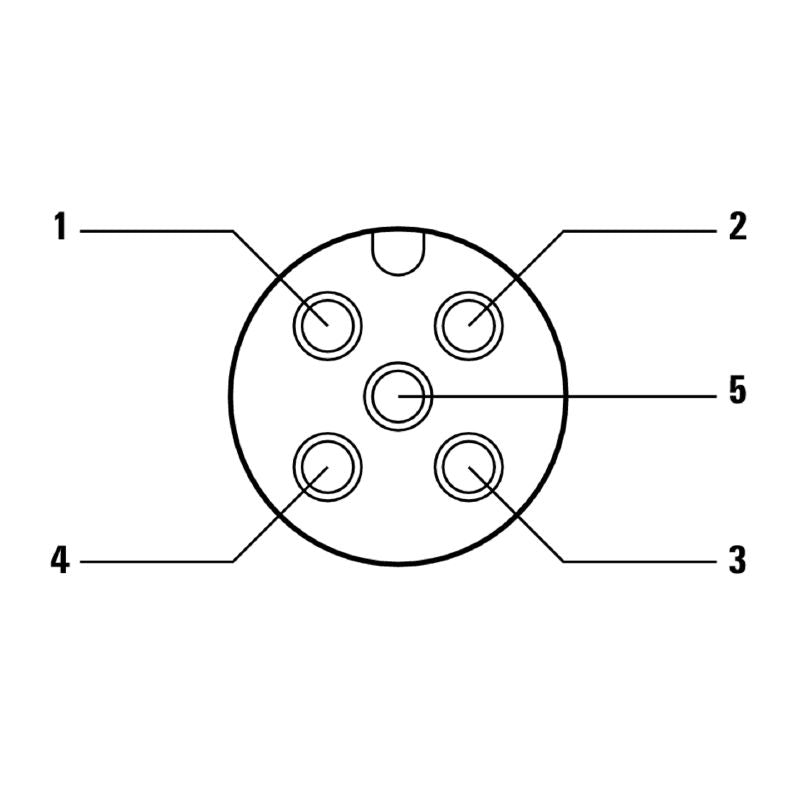

JACKPAC, Level converter, Rated control voltage: 18...24...30 V DC , Rated switching voltage: 18...30 V DC, Continuous current: 0.4 A, M12 plug/socket, A-coded

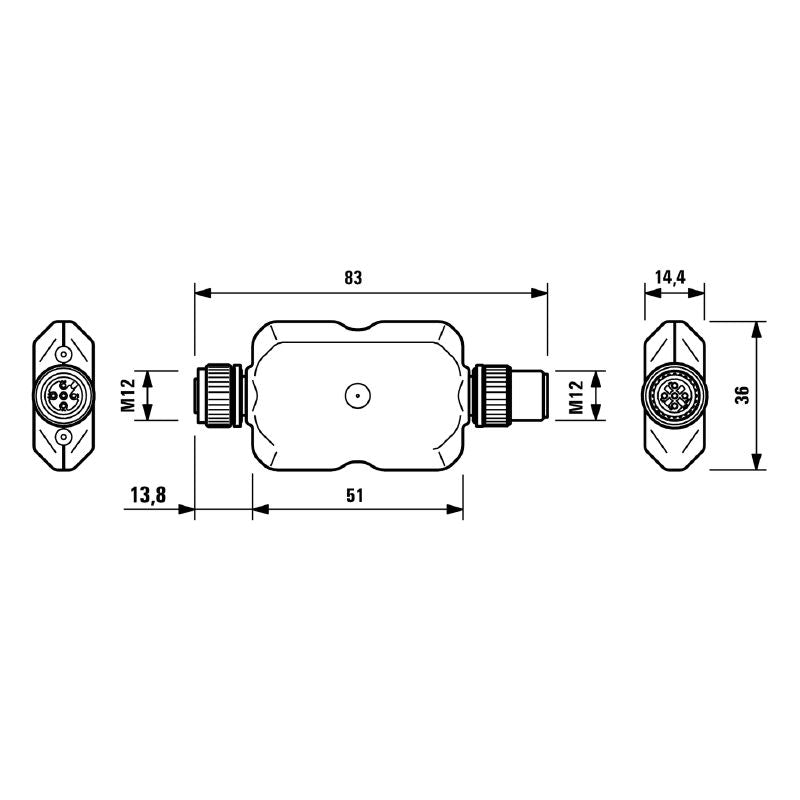

Dimensions and weights
Height: 14.4 mm
Height (inches): 0.567 inch
Width: 36 mm
Width (inches): 1.417 inch
Length: 83 mm
Length (inches): 3.268 inch
Net weight: 39.5 g
Temperatures
Storage temperature: -20 °C...85 °C
Operating temperature: 0 °C...60 °C
Input
Rated control voltage: 18...24...30 V DC
Rated control voltage: 18...30 V DC
Control side
Rated control voltage: 18...24...30 V DC
Sensor: 2-/ 3-Conductor Sensor PNP-Type
Input current for sensor: <200 mA
Output
Continuous current
Rated switching voltage
Rated switching voltage: 18...30 V DC
Continuous current: 0.4 A
Load side
Rated switching voltage: 18...30 V DC
Continuous current: 0.4 A
Rated switching current: 400 mA
Voltage drop at max. load: ≤ 0.3 V
Insulation coordination
Rated voltage: 32 V
Surge voltage category: I
Pollution severity: 2
Protection degree: IP67
Impulse withstand voltage: 500 V
