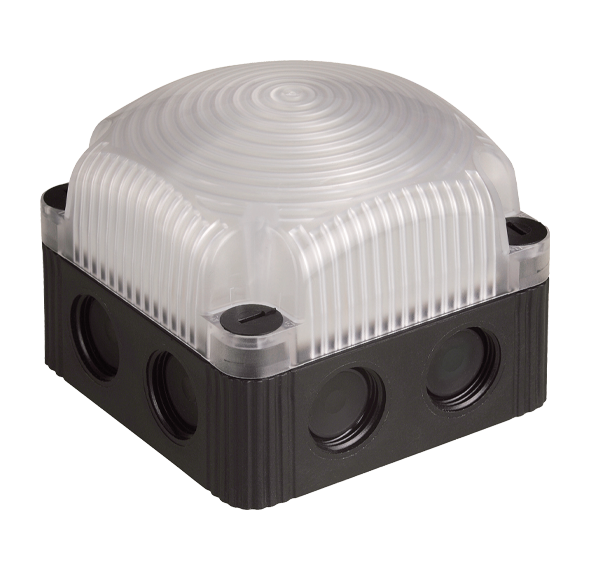

Werma BWM 853 Series Multi Colours Steady Beacon, 7 Colours in 1 unit, 24VDC, Base Mount, LED, IP66, IP67

Werma BWM 853 Series Multi Colours Steady Beacon

7 Colours in 1 unit.

Red, Green, Yellow, White, Blue, Violet and Cyan.

LED Permanent light (multicolour) in attractive quadratic form 7 different status warnings can be signalled by just one beacon (7 colours) The three basic colours (red/yellow/green) can be triggered using only two PLC outputs Easy assembly due to quick-release screws

Specifications

• Operating voltage: 24VDC
• Operating voltage tolerance:+/- 10%
• Rated operational current: 150.0mAh
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3
• Dome Colour: Clear
• Protection category: IP66; IP67
• Connection: Spring-type terminal
• Working temperature minimum: -25°C
• Working temperature maximum: +50°C
• Type of fixing: Base mounting; Wall mounting

Wiring
