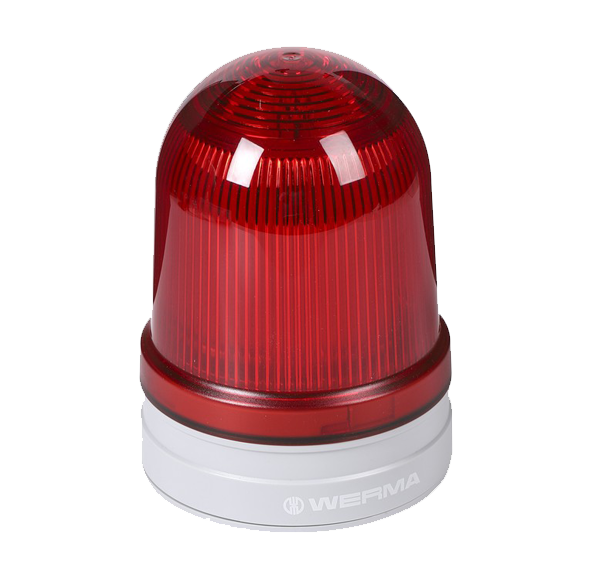

Werma D120 Permanent/Flashing/Rotating LED Beacon with Sounder, 100dB, 24VDC, IP66
Regular price
$254.55
Sale price
$254.55
Regular price
Unit price
per
Tax included.
410.060.45
Werma D120 Blink, Flash, Permanent and Revolving Signal Beacon with Sounder
24VDC, IP66, 100db Sounder
Specifications
Diameter 120mm
Height 170mm
Materials PC; PC/ABS
Dome colour Red
Housing colour Grey
Protection category IP66
Connection Push-in terminal
Type of fixing Base mounting
Working temperature minimum -30°C
Working temperature maximum +50°C
Electrical data
Operating voltage 24V
Operating voltage type DC
Operating voltage tolerance +/- 10%
Rated operational voltage 24 VDC
Rated operational current 780.000000
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 1000 mA
Optical data
Light source LED
Optical signal image Blink; Flash; Permanent; Revolving
Service life optical 50,000 h maximum
Audible data
Volume (max) at 1m distance 100dB
Acoustic signal image Alternating tone; Multi-tone; Pulse tone
Number of tones 3 tones
Acoustic service life 5,000 h minimum
Volume adjustable Switch
