Werma D Series D62 Permanent/Flashing LED Beacon/Sounder 24VDC, 85dB
Werma D Series D62 Permanent/Flashing LED Beacon/Sounder 24VDC, 85dB
Regular price
$95.65
Sale price
$95.65
Regular price
Unit price
per
Tax included.
410.612.35

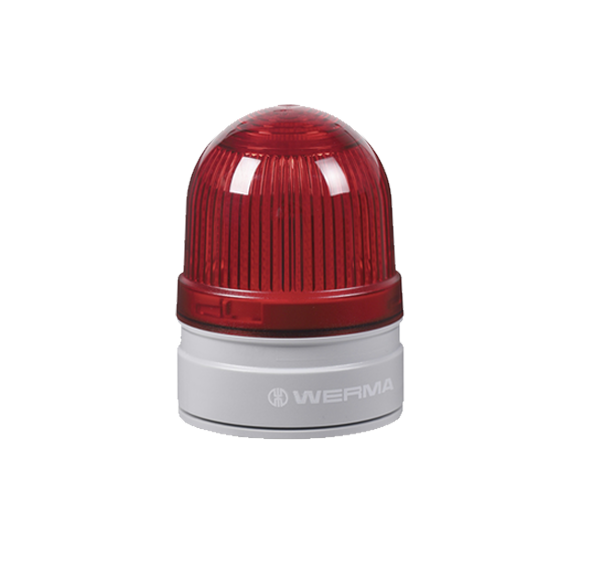

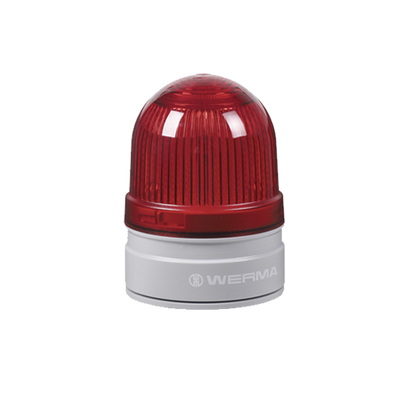

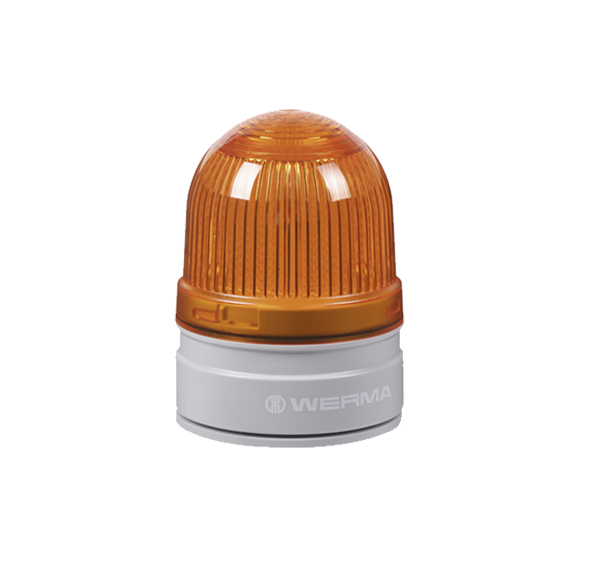

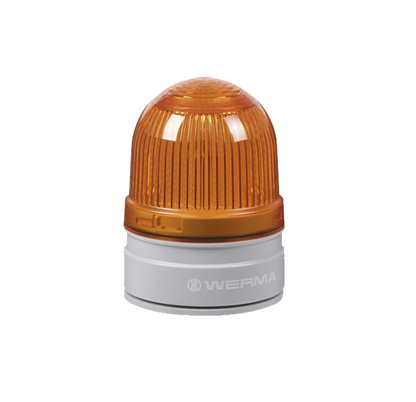

Werma D62 Permanent & Flashing Signal Beacon with Sounder
24VDC, IP66
Specifications
Diameter 62cm
Height 85cm
Materials PC; PC/ABS
Dome colours Red, Yellow, Green
Housing colour Grey
Protection category IP66
Connection Push-in terminal
cross-sectional area maximum 1,50mm² / 16AWG
cross-sectional area minimum 0,25mm² / 24AWG
Type of fixing Base mounting
Cable entry minimumd = 8 mm
Working temperature minimum -30°C
Cable entry maximum d = 12 mm
Working temperature maximum +50°C
Weight with packaging No
Product weight No
Electrical Data
Operating voltage 24V
Operating voltage type DC
Operating voltage tolerance +/- 10%
Rated operational voltage 24 VDC
Rated operational current 80.000000
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 200 mA
Optical Data
Light source LED
Optical signal image Flash; Permanent
Service life optical 50,000 h maximum
Audible Data
Volume (max) at 1m distance 85dB
Acoustic signal image Continuous tone; Pulse tone
Number of tones 2 tone
Acoustic service life 5,000 h minimum
Volume adjustable Switch
