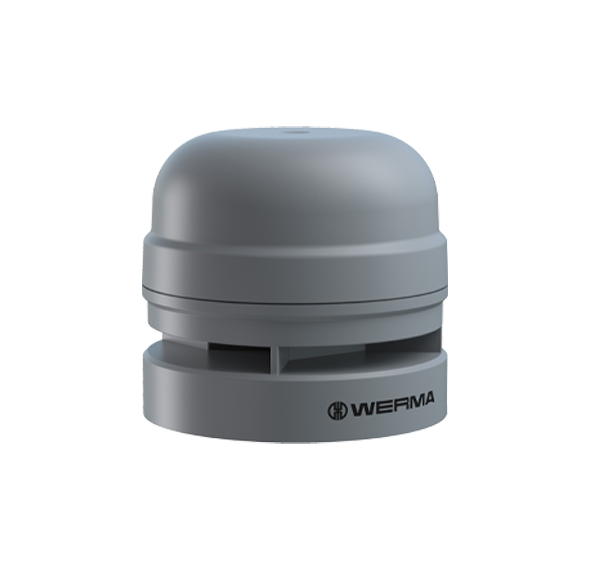

Werma EvoSIGNAL Series Midi Sounder 12/24VAC/DC or 115-230VAC
$215.10
Werma EvoSIGNAL Series Midi Sounder 12/24VAC/DC or 115-230VAC
Specifications
Diameter 85mm
Height 78mm
Materials PC; PC/ABS
Housing colour Grey
Protection category IP66
Connection Push-in terminal
cross-sectional area minimum 0,25mm² / 24AWG
cross-sectional area maximum 1,50mm² / 16AWG
Working temperature minimum -30°C
Working temperature maximum +60°C
Product weight 140g
Electrical Data
12/24VAC/DC
Operating voltage 12/24VAC/DC
Operating voltage type AC or DC
Operating voltage tolerance +/- 10%
Rated operational voltage 12 VDC
Rated operational current 135 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 2500 mA
115-230VAC
Operating voltage 115-230VAC
Operating voltage type AC
Operating voltage frequency 50Hz at 230V; 60Hz at 115V
Operating voltage tolerance +/- 10%
Rated operational voltage 230VAC
Rated operational current 105 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 7000 mA
Audible Data
Volume (max) at 1m distance 110,0 dB (A)
Acoustic signal image Multi-tone
Number of tones 10 tone
Acoustic service life 5,000 h minimum
Audio frequency 3300.000000
