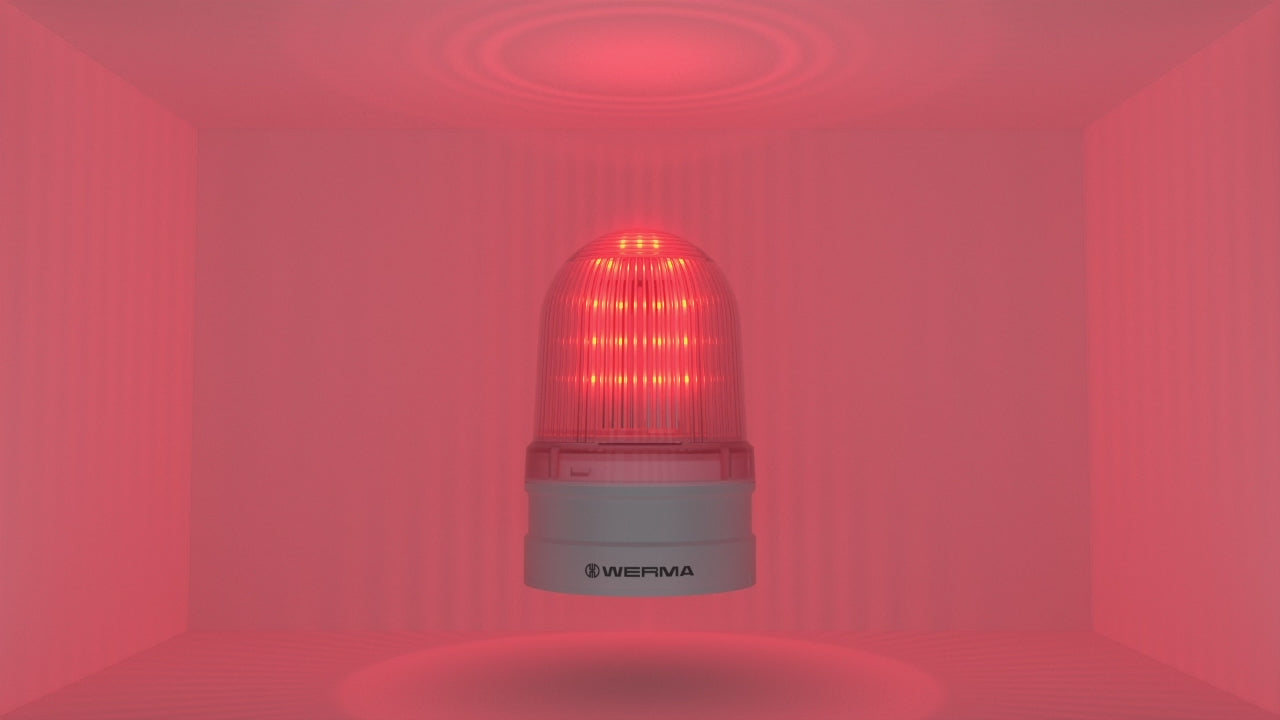

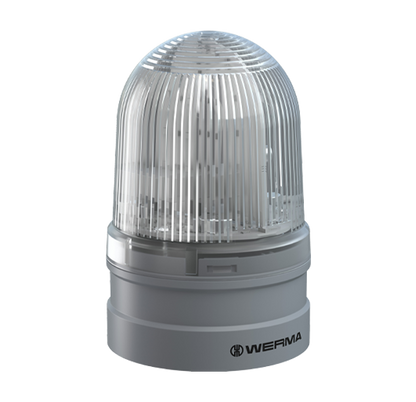

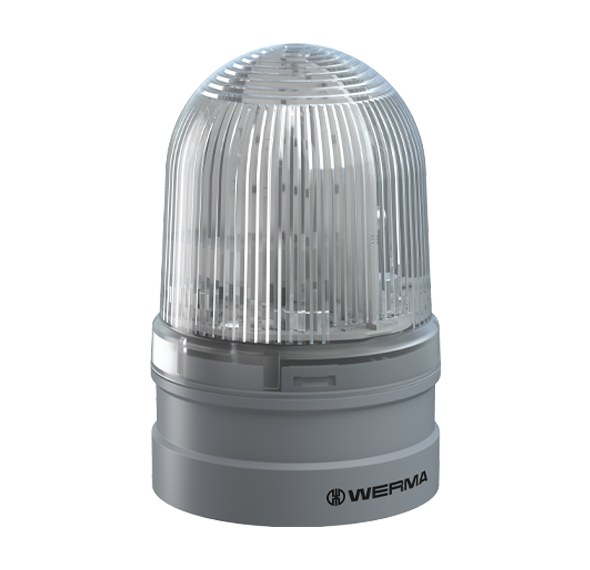

Werma EvoSIGNAL Series Midi TriColour (Green/Yellow/Red) Permanent LED Beacon 12/24VAC/DC or 115-230VAC
$351.00
Midi TriColour 12/24VAC/DC or 115-230VAC
Specifications
Diameter 85mm
Height 130mm
Materials PC; PC/ABS
Housing colour Grey
Dome colour Clear
Protection category IP66
Connection Push-in terminal
cross-sectional area minimum 0,25mm² / 24AWG
cross-sectional area maximum 1,50mm² / 16AWG
Working temperature minimum -30°C
Working temperature maximum +60°C
Product weight 143g
Electrical Data
12/24VAC/DC
Operating voltage 12/24VAC/DC
Operating voltage type AC or DC
Operating voltage tolerance +/- 10%
Rated operational voltage 12 VDC
Rated operational current 135 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 1000 mA
115-230VAC
Operating voltage 115-230VAC
Operating voltage type AC
Operating voltage frequency 50Hz at 230V; 60Hz at 115V
Operating voltage tolerance +/- 10%
Rated operational voltage 230VAC
Rated operational current 50 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 7000 mA
Optical Data
Light source LED
Optical signal image Permanent
Service life optical 50,000 h maximum
