Werma EvoSIGNAL Series Mini TwinLIGHT Combi Permanent/Flashing LED Beacon/Sounder, 95dB, 12VAC/DC, 24VAC/DC or 115-230VAC

Werma

$247.10

Color

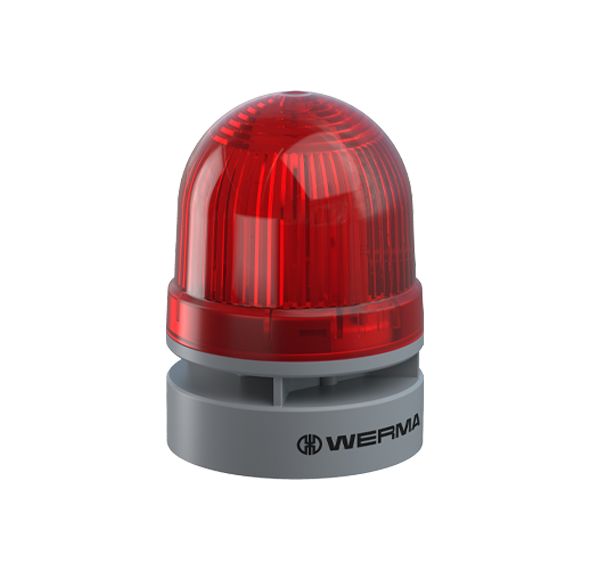

Red

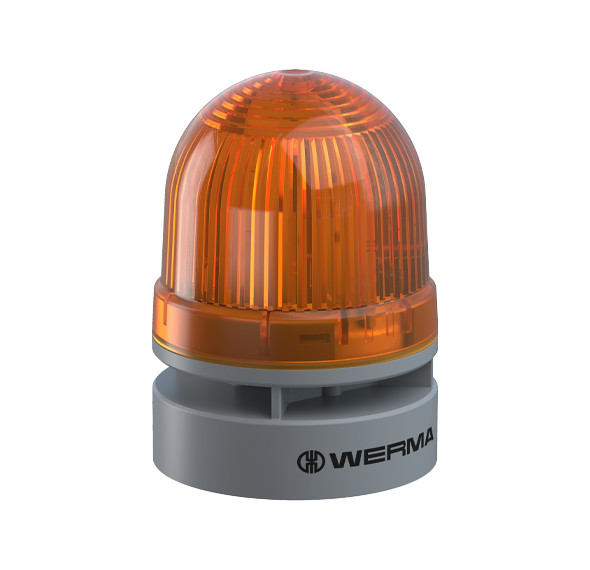

Yellow

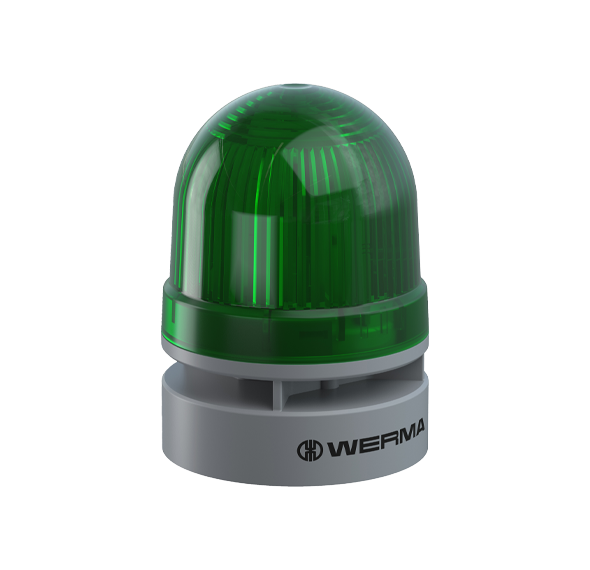

Green

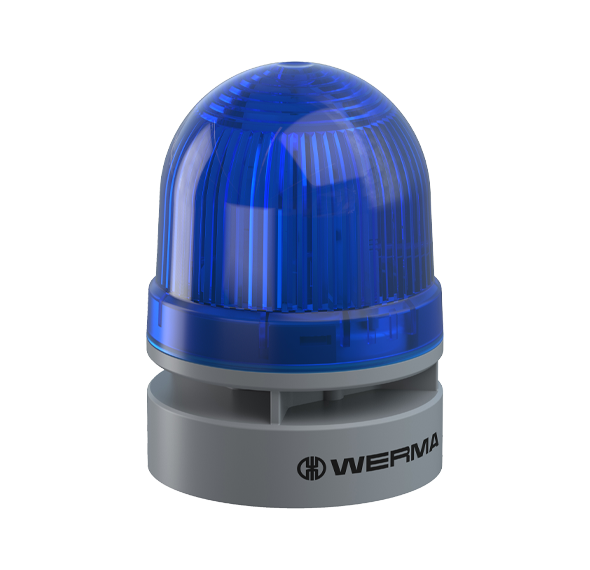

Blue

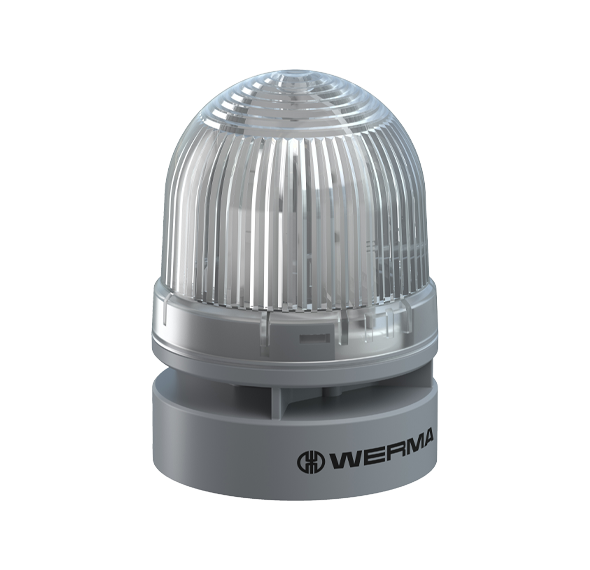

Clear
Operating Voltage

Mini TwinLIGHT Combi 12VAC/DC, 24VAC/DC or 115/230VAC

Mini-sized optical-acoustic combination from the EvoSIGNAL series.

TwinLIGHT

Combination of permanent light and blinking light

TwinLIGHT combines the functions of permanent light and blinking light in a single signalling technology element. Users can flexibly switch between the two modes, which makes TwinLIGHT particularly versatile. This technology is suitable for applications that require both continuous signalling and a recurring visual warning.


Specifications

Diameter 85mm
Height 62mm
Materials PC; PC/ABS
Housing colour Grey
Protection category IP66
Connection Push-in terminal
cross-sectional area minimum 0,25mm² / 24AWG
cross-sectional area maximum 1,50mm² / 16AWG
Working temperature minimum -30°C
Working temperature maximum +60°C
Product weight 78g


Electrical Data

12VAC/DC

Operating voltage 12VAC/DC
Operating voltage type AC or DC
Operating voltage tolerance +/- 10%
Rated operational voltage 12 VDC
Rated operational current 98 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 2000 mA

24VAC/DC

Operating voltage 24VAC/DC
Operating voltage type AC or DC
Operating voltage tolerance +/- 10%
Rated operational voltage 24 VDC
Rated operational current 98 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 3000 mA

115-230VAC

Operating voltage 115-230VAC
Operating voltage type AC
Operating voltage frequency 50Hz at 230V; 60Hz at 115V
Operating voltage tolerance +/- 10%
Rated operational voltage 230VAC
Rated operational current 65 mA
Protection class Protection class 2
Pollution degree 3; In the connection area: 2
Rated inrush current 2000 mA

Optical Data

Light source LED
Optical signal image Blink; Permanent; TwinLight
Blink frequency 1 Hz
Service life optical 50,000 h maximum

Audible Data

Volume (max) at 1m distance 95 dB (A)
Acoustic signal image Continuous tone; Pulse tone
Number of tones 2 tone
Acoustic service life 5,000 h minimum

Click Here for Operating Instructions

Click Here for PDF Data Sheet on EvoSIGNAL range

Please Note: EvoSignal Series requires a base to suit, click here to view base range
