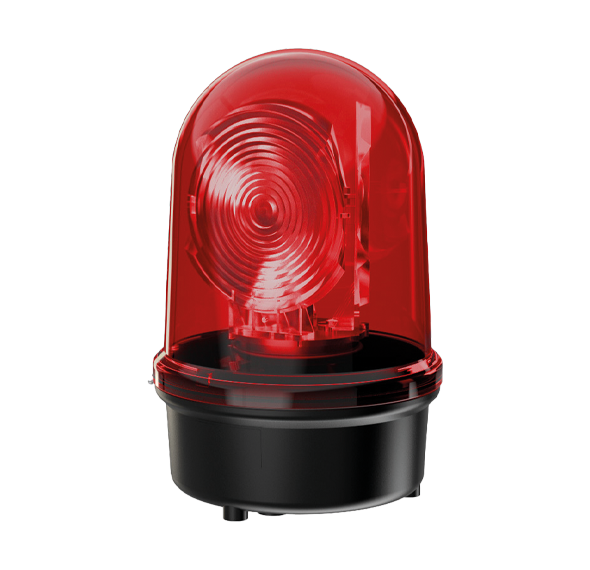

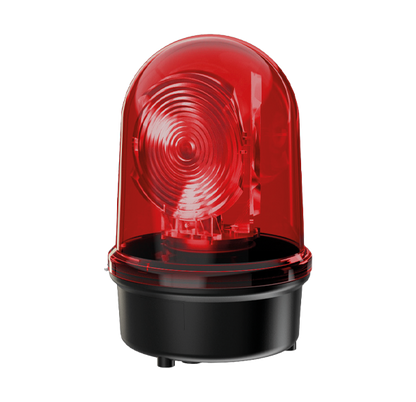

• Werma Rotating Beacon Fresnel Red 884.130.75

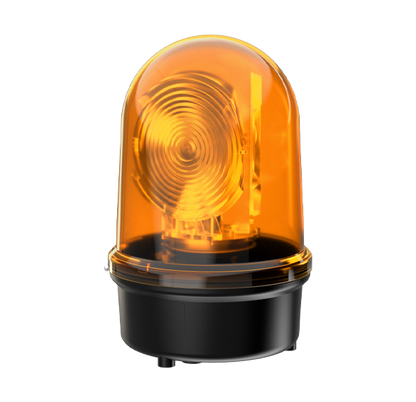

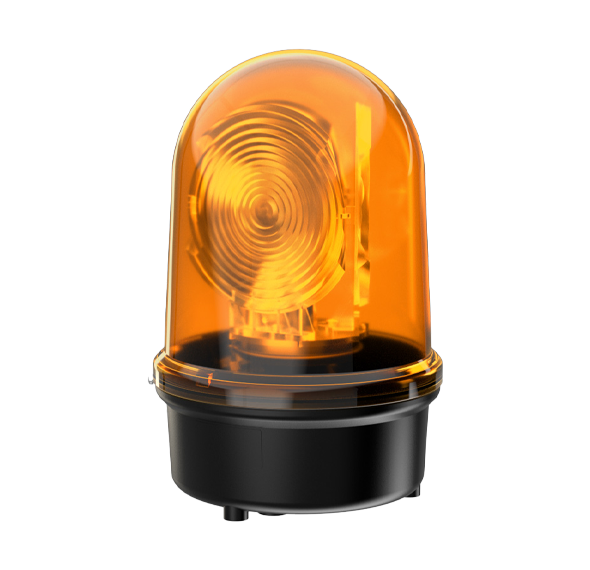

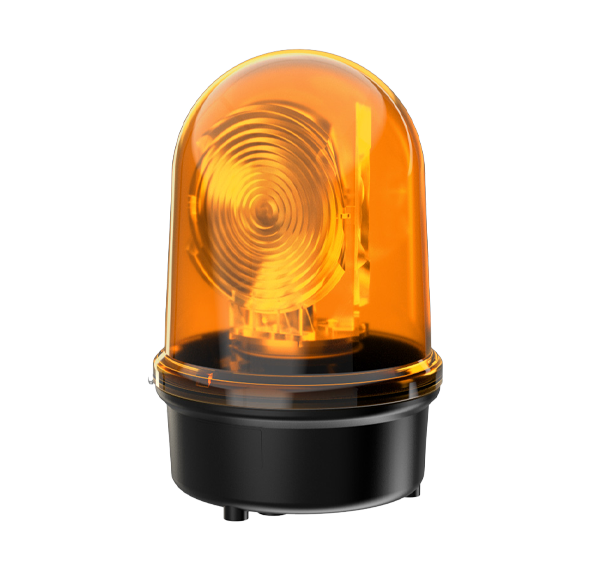

  • Werma Rotating Beacon Fresnel Yellow 884.330.75

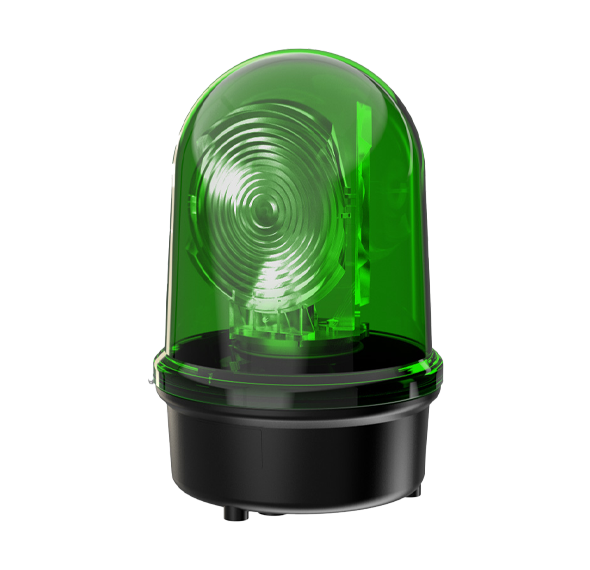

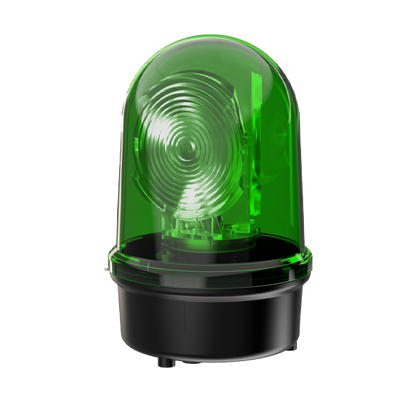

  • Werma Rotating Beacon Fresnel Green 884.230.75

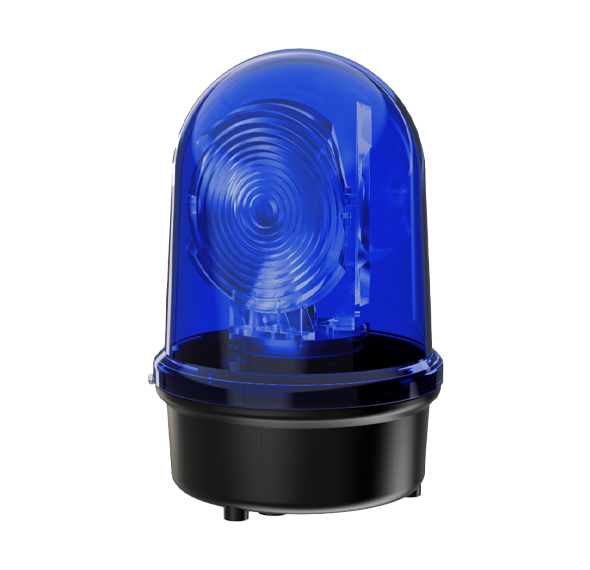

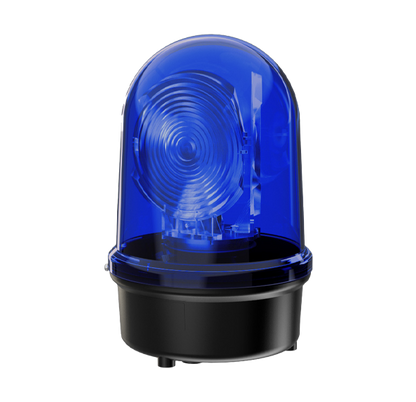

  • Werma Rotating Beacon Fresnel Blue 884.530.75

Werma Rotating LED Beacon Fresnel 24VAC/DC

Werma Rotating LED Beacon Fresnel 24VAC/DC

Werma

$431.75
$431.75
Tax included.

884.130.75

Color: Red
Operating Voltage

The Werma Rotating Beacon Fresnel (884 series) delivers a high-intensity revolving optical signal, engineered for reliable visibility even in poor conditions.

  • Greater signal effect in poor visibility thanks to 3 Fresnel lenses
  • Extreme durability due to low-wear wheel and disc drive
  • High impact resistance up to 20 Joules
  • Energy-saving, long-life LED light source — brighter than its predecessor

Approvals: CE, RoHS, WEEE, UKCA.

Specifications

  • Light source: LED
  • Optical signal: Revolving
  • Rotation speed: 60 rpm
  • Operating voltage: 24V AC/DC, 50Hz, +/- 10%
  • Rated operational current: 250 mA
  • Rated inrush current: 2600 mA
  • Optical service life: up to 50,000 h
  • Protection category: IP65
  • Protection class: Class 2
  • Type of fixing: Base mounting
  • Connection: Screw terminals (max 1.50mm² / 16AWG)
  • Cable entry: Rubber pinch, d = 5–7 mm
  • Housing: PC / PC-ABS, black
  • Dimensions: Height 218 mm, Diameter 142 mm
  • Working temperature: -30°C to +50°C
  • Weight: 672 g

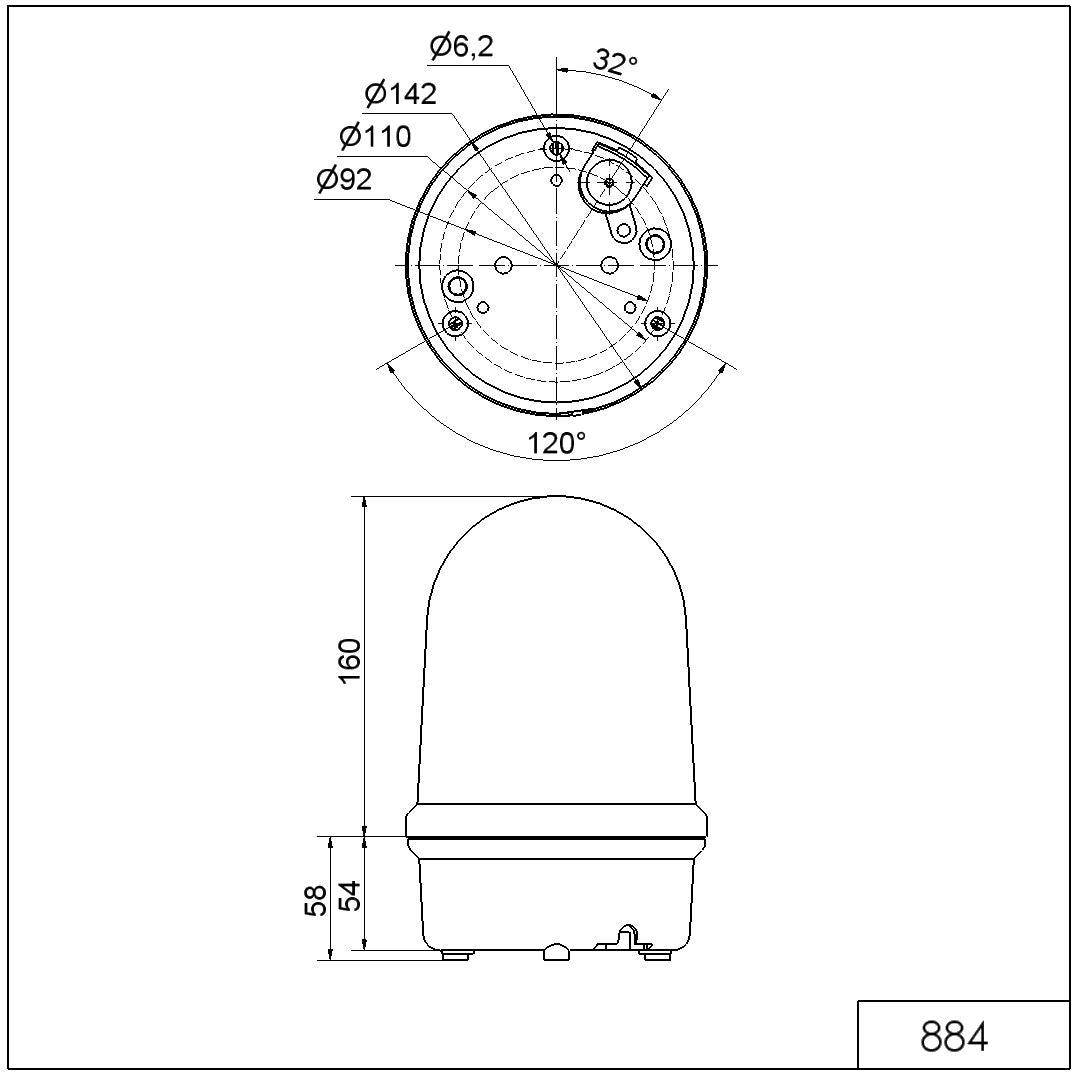

Dimensions

Estimated Lead Time

2-3 week lead time
Werma Rotating LED Beacon Fresnel 24VAC/DC

$431.75

Accessories
