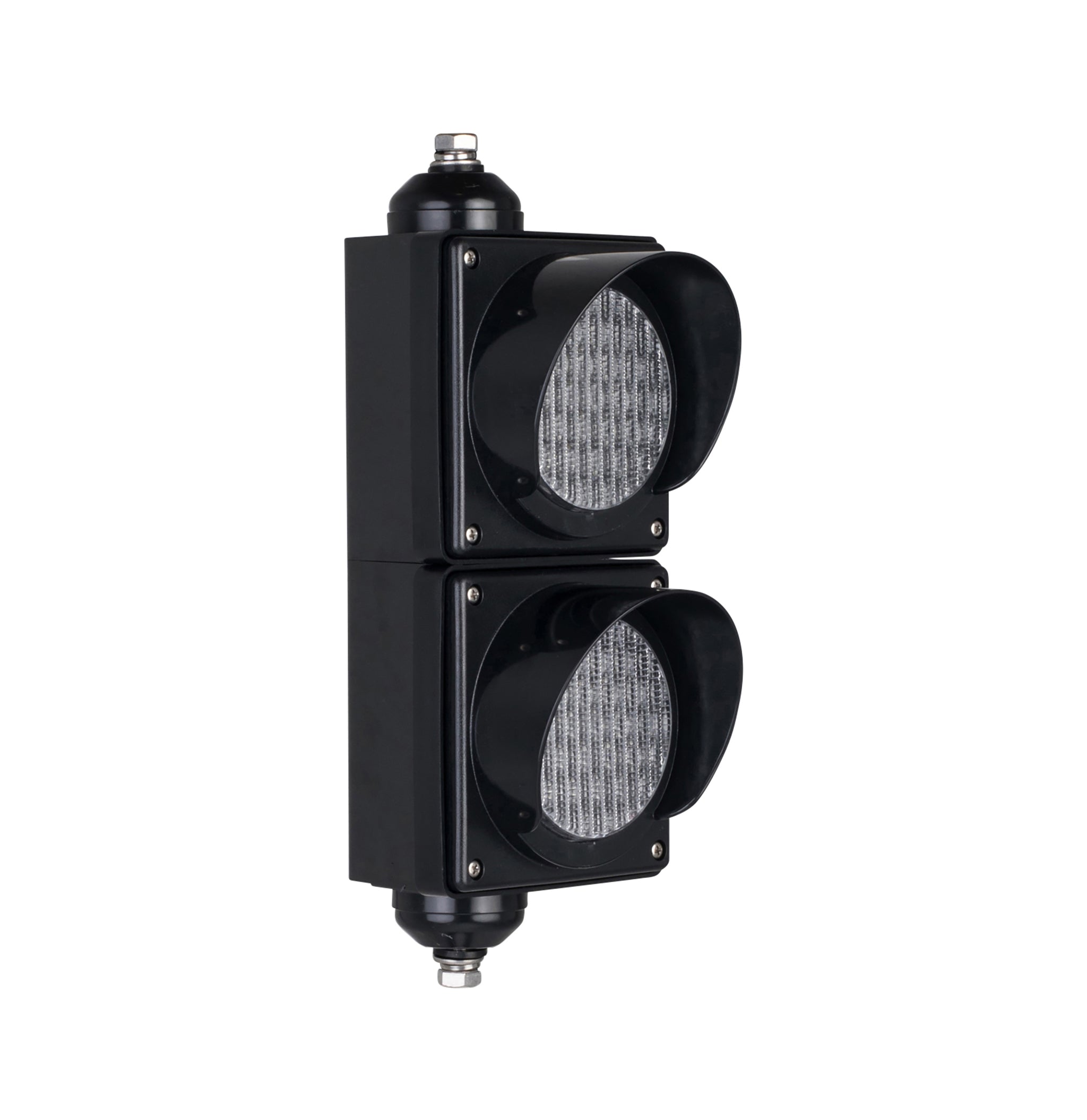

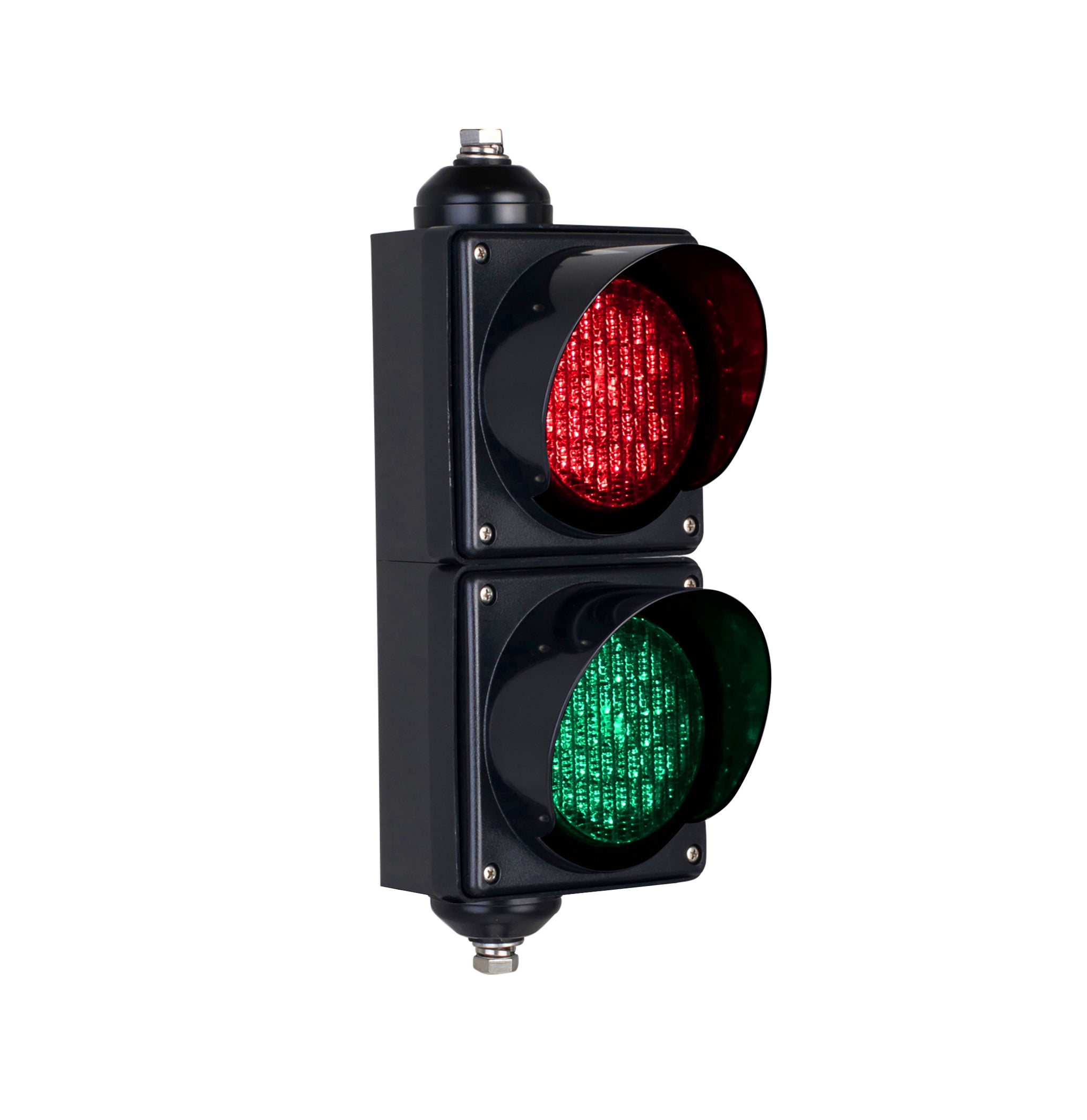

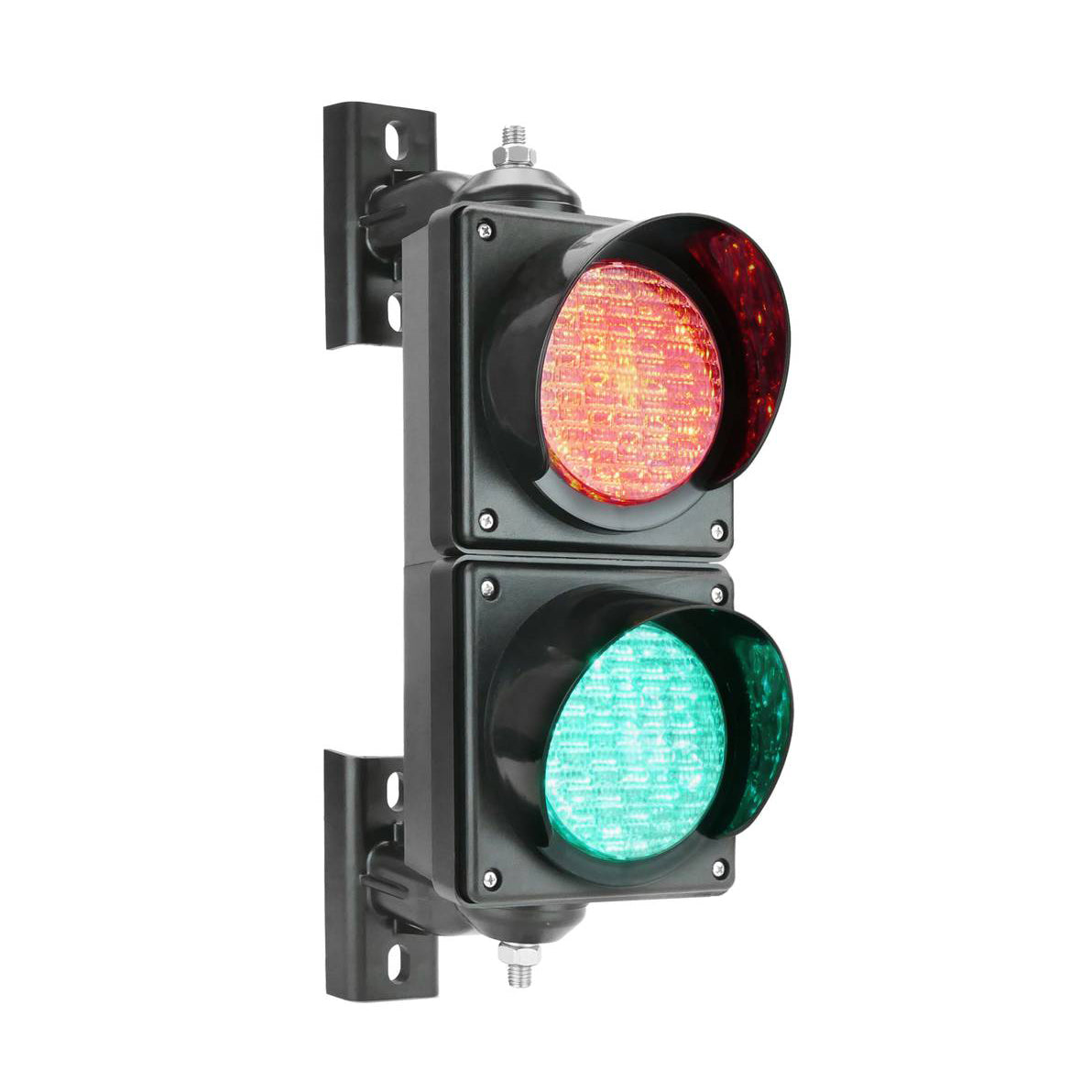

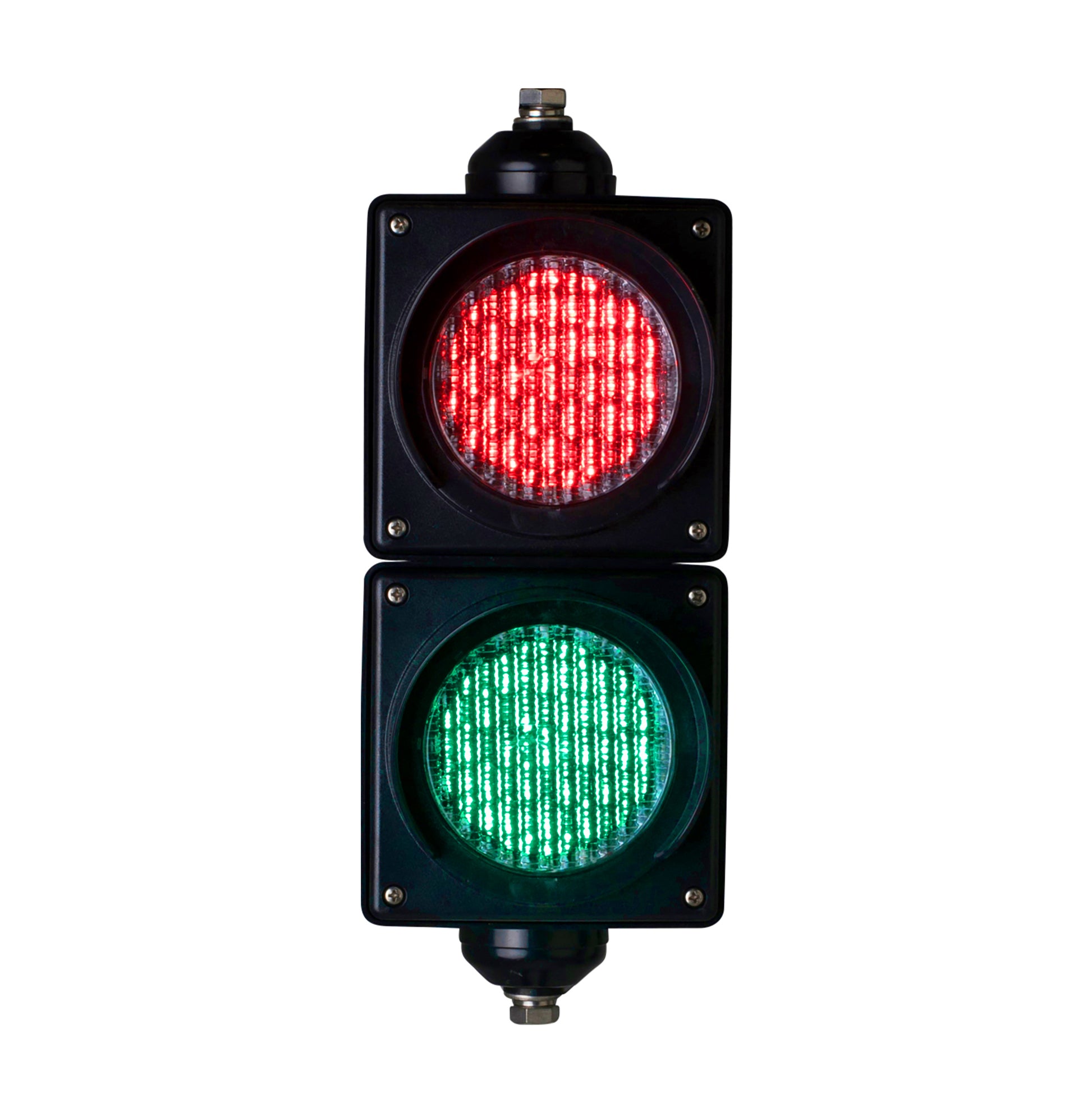

2 Aspect 100mm LED Traffic Light 12-24VDC or 85-265VAC

Ideal for car park, wash bay, and load bay applications where larger traffic lights may not be suitable.

2 aspect 100mm LED Traffic light comes with sun visor and right angle mounting brackets to be easily mounted to a pole or wall. Each modules has 31 internal high output LED's rated to an approximate 80,000 hours.

The manufacturers quality management system is in compliance with GB/T19001-2008 and ISO9001:2008 standard. Our products are CE, RoHs and IP55 certified, comply with EN12368:2006 traffic control equipment regulation and come with 3 years warranty.

Features

• Comply with: CE, GB14887,EN12368, RoHS and other related international standards.
• Double layer optical lens for even light distribution
• Energy saving, power consumption 90％ less than incandescent bulbs
• High-intensity and efficient LED source, Life span more than 80,000 hrs.
• Rational designed optical lens, anti-phantom effect, optimal viewing angle.
• IP55 Dust-proof and weatherproof construction. Environmental friendly, RoHS compliant.
• Assembled in Melbourne, Australia

Specifications

Input Voltage: 12-24VDC or 85-265VAC
Power Consumption 12-24VDC:

90mA @ 12VDC, 50mA @ 24VDC (Red and Yellow Module)

150mA @ 12VDC, 90mA @ 24VDC (Green Module)

Power Consumption 85-265VAC: 1 watt
Lens Diameter: 100mm
Light Intensity: ≥150cd (Red and Yellow) ≥220 cd (Green)
Dominate Wavelength: Red 625nm +/- 5, Yellow 590nm +/- 5, Green 505nm +/- 2
Working Temperature: -40ºC ~ +80ºC
Rating: IP55 Weather Resistant
Housing: UV Resistant Poly-carbonate
Working Humidity: ≤0.97
Average Life of LEDs: 80,000 Hours
View Distance: ≤200m
Mass: 1.6kg
Sun Visors: Rotatable - can be mounting horizontal or vertical

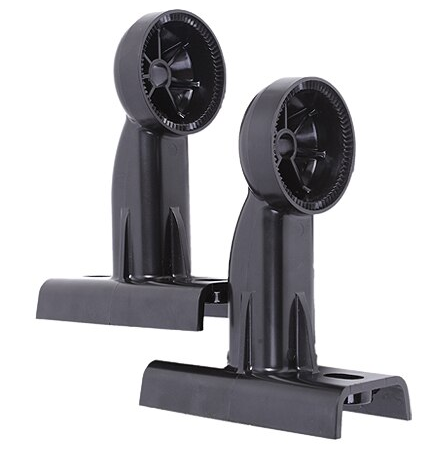

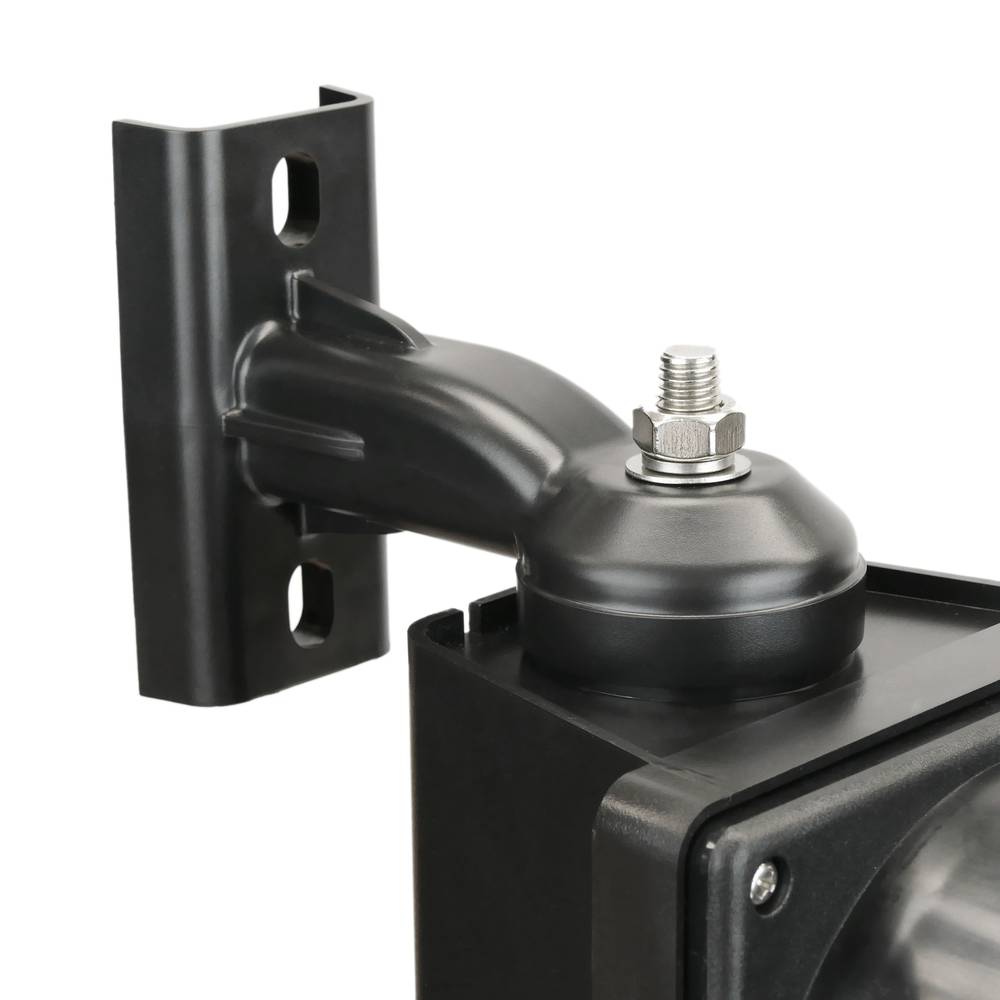

Right angle metal mounting brackets included

Wiring:

12-24VDC - Terminal 1: Common (Neg -), Terminal 2: Module 1 (Pos +), Terminal 3: Module 2 (Pos +)

85-265VAC - Terminal 1: Common (Neutral N), Terminal 2: Module 1 (Active L), Terminal 3: Module 2 (Active L)

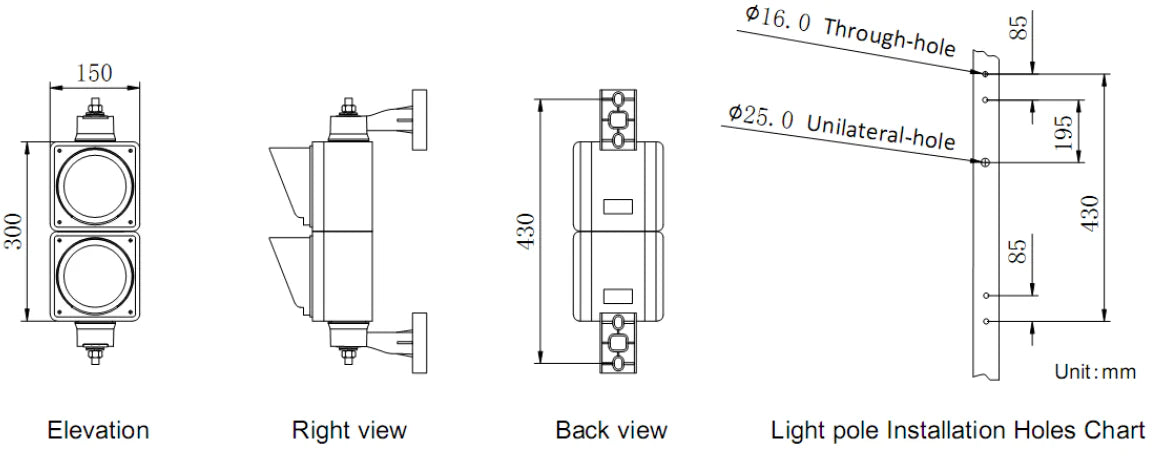

Dimensions
