100mm Aspect Traffic Light Modules

BNR

Module
Voltage

Modules to suits 100mm aspect LED Traffic Lights

Features

  • Simple to replace and install in existing 100mm Aspect BNR Traffic lights
  • 12-24VDC or 85-265VAC voltage rated
  • Highly durable poly-carbonate housing, UV-light and Impact Resistant
  • Double layer optical lens for even light distribution
  • Compliance with CE, RoHS, EN12368, ISO9001
  • 3 Year Replacement Warranty

Specifications

  • Input Voltage: 12-24VDC or 85-265VAC
  • Power Compumtion: 80mA @ 12VDC, 50mA @ 24VDC (Red and Green Module) 150mA @ 12VDC, 80mA @ 24VDC (Yellow Module)

  • Light Intensity: 150 cd (Red and Yellow) ≥220 cd (Green)
  • Working Temperature: -40ºC ~ +80ºC
  • Rating: IP55 (IP65 rating when installed in Traffic Light Housing)
  • Working Humidity: ≤0.97
  • View Distance: ≤200m

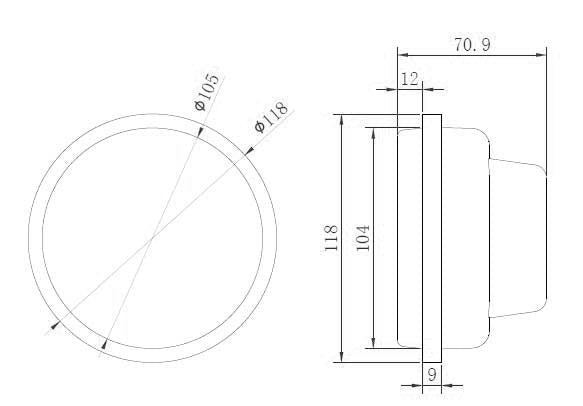

Dimensions
