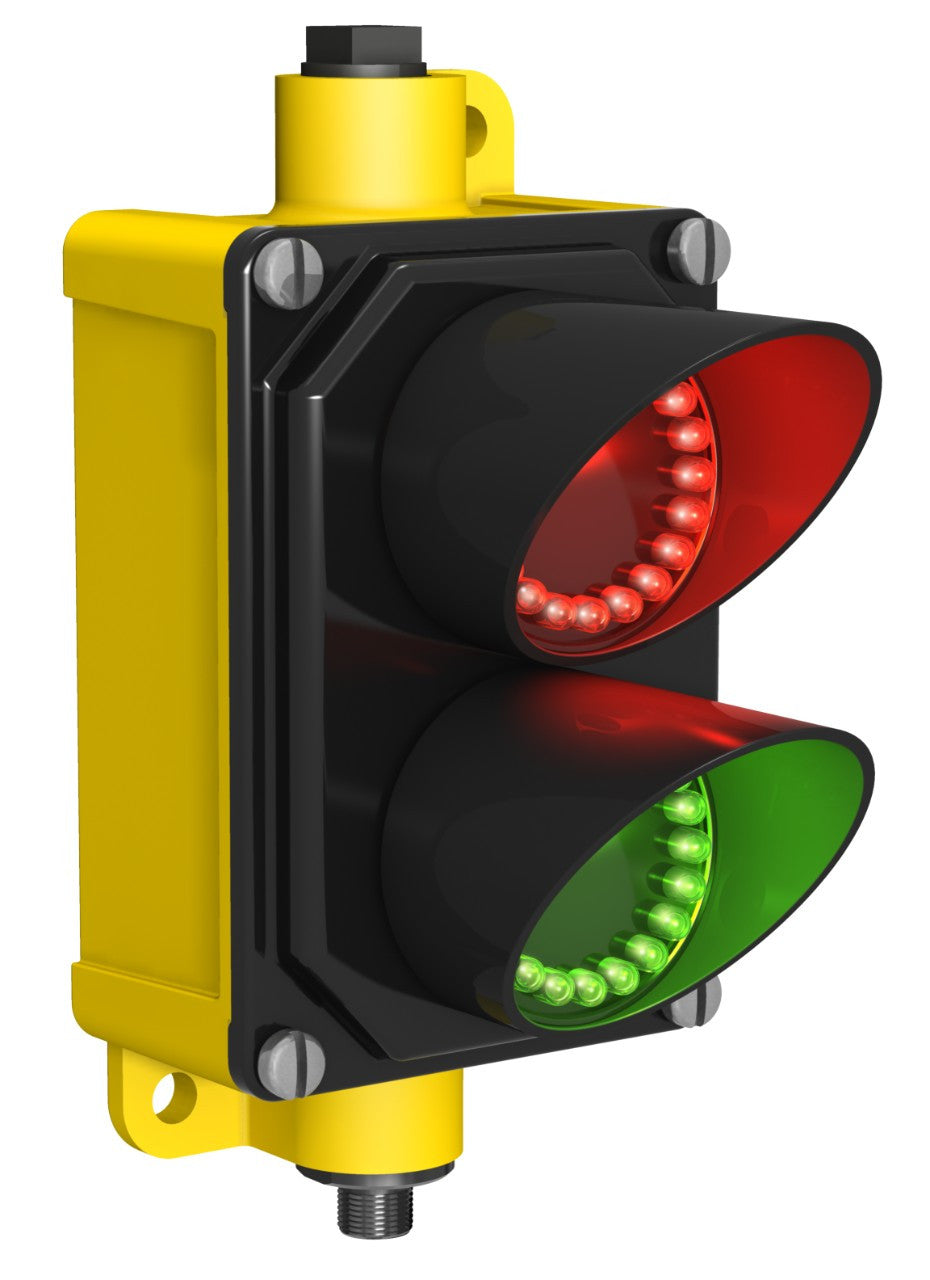

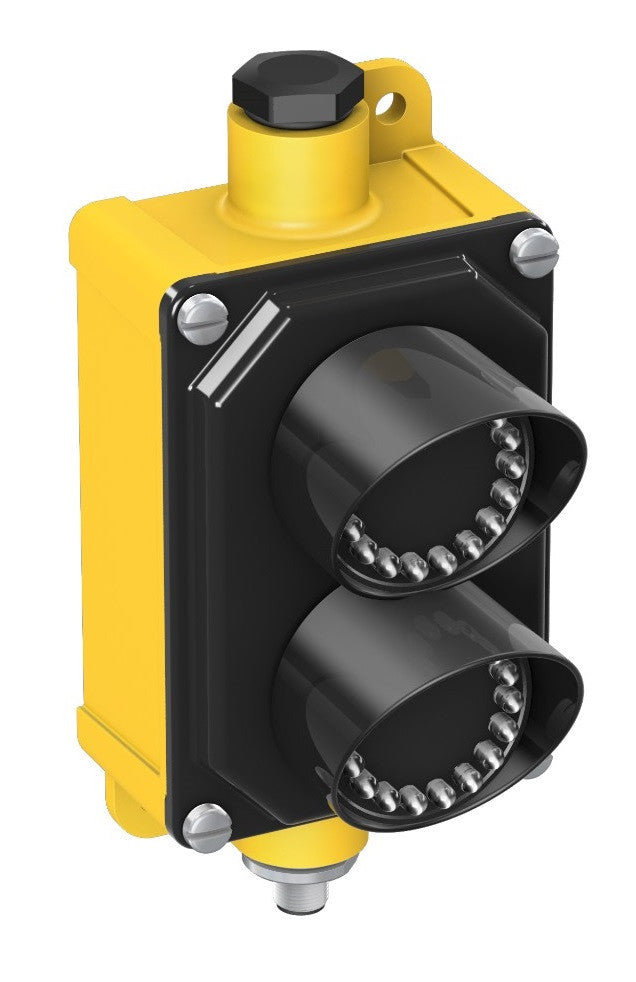

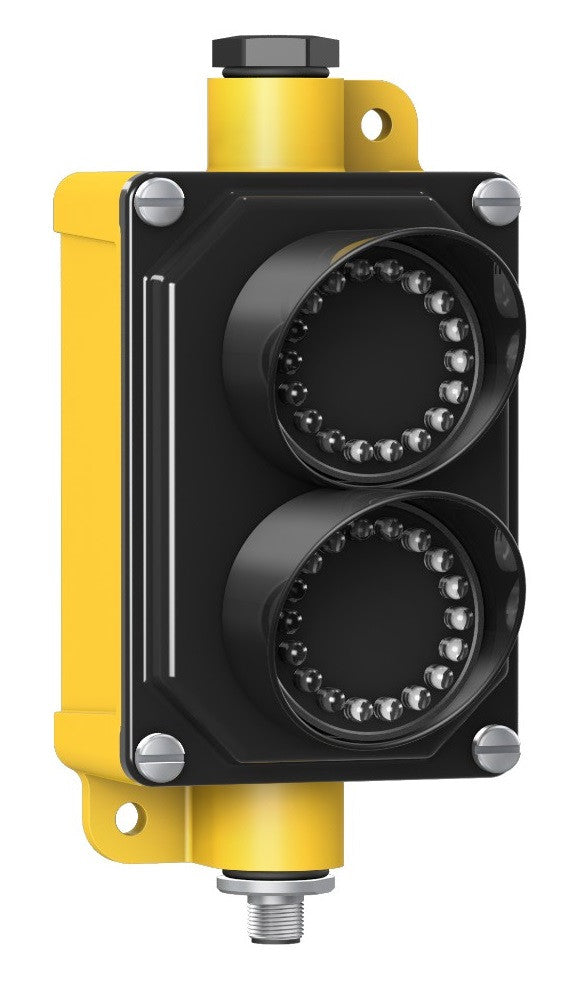

Banner SP250GRPQ EZ-LIGHT 2 Aspect Red/Green 15-30VDC IP65 Traffic Light


Indicators for signalling applications

  • Preassembled indicators for signaling and traffic control
  • Intense levels of light output for outdoor applications
  • Sun shield included
  • Controlled field of view for signage and narrow lane use
  • Rugged, cost-effective and easy-to-install
  • Compact devices are completely self-contained — no controller needed
  • Immune to EMI and RFI interference


  • IP65
  • 15-30VDC
  • Red/Green module
  • 120mA per module
  • Connection type: Integral M12 4pin
  • Input Type: PNP
  • 250mm High
  • Operating Temperature -40 to +50°C
  • Meets Mil. Std. 202F requirements method 201A. Also meets IEC 947-5-2; 30G 11 ms duration, half sine wave.
  • Polycarbonate body

PDF Datasheet

To increase efficiency and safety at loading docks, it’s necessary for shipping companies to control traffic and communicate status at the various bays. A rugged, highly-visible solution is required.
